Drag & Drop Interface
Build the SD card layout visually

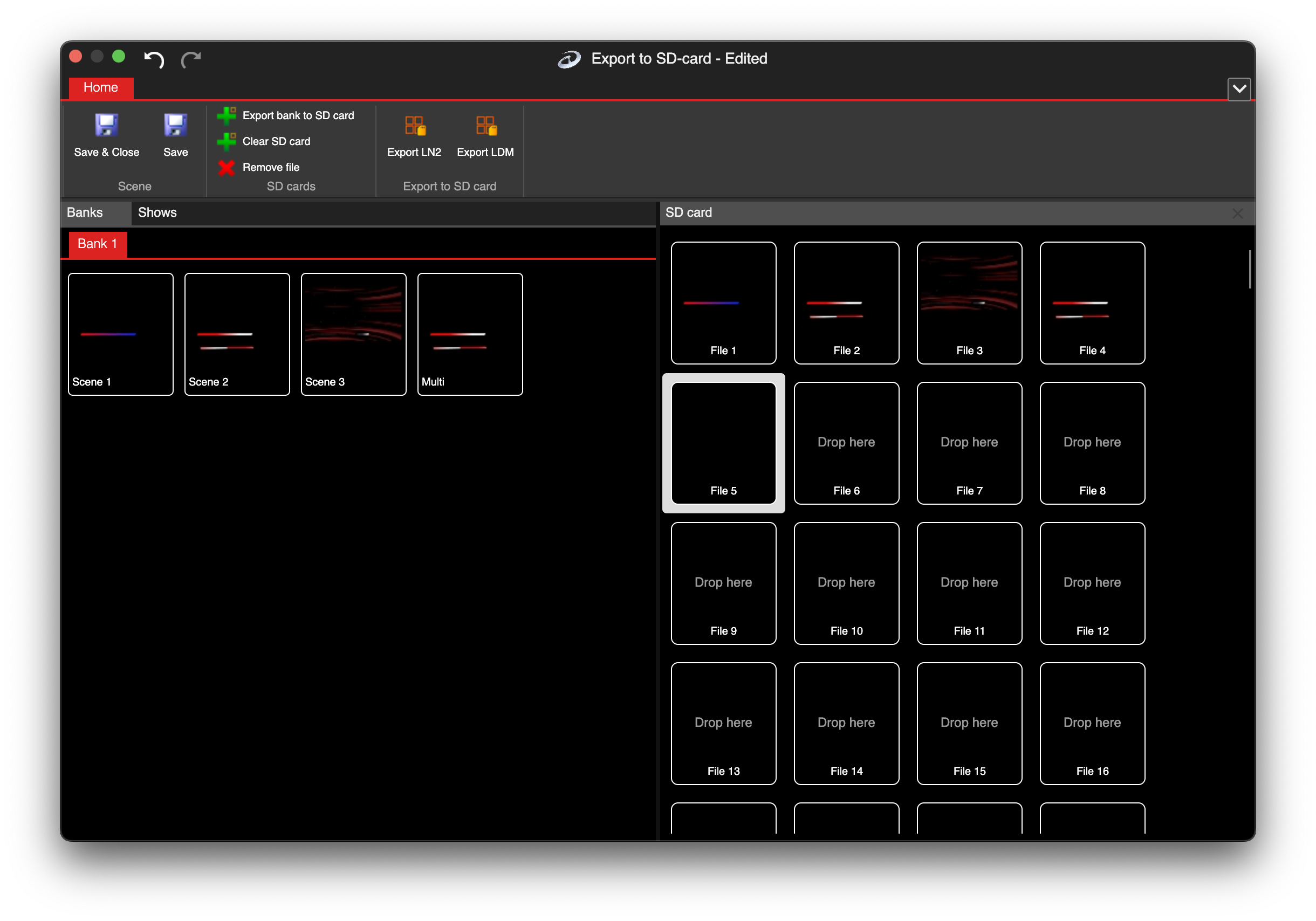

The SD card editor shows your scene banks and shows on the left, and the 255 animation slot positions on the right. To assign content to a slot, drag a scene or show from the left panel and drop it onto the target slot position. It's the same intuitive interaction you'd expect from a modern file manager.
You can define multiple SD card configurations in the same project — useful for installations that need different content sets for different occasions, or for managing multiple devices with different programming.
- Drag scenes and shows from banks to SD card slots
- 255 animation positions per SD card configuration
- Mix individual scenes and full shows on the same card
- Multiple SD card configurations per project

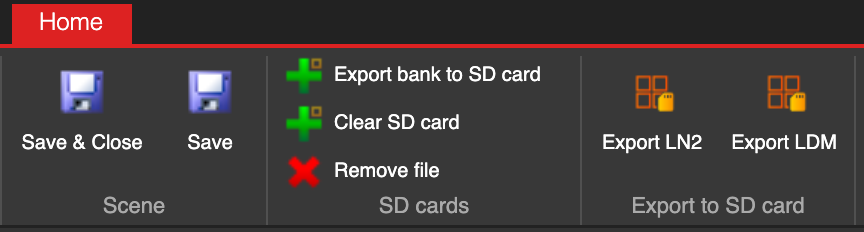

- Export to disk or directly to a connected device
Supported Devices
Works with LEC3, SPI Matrix, and Reactivo 2

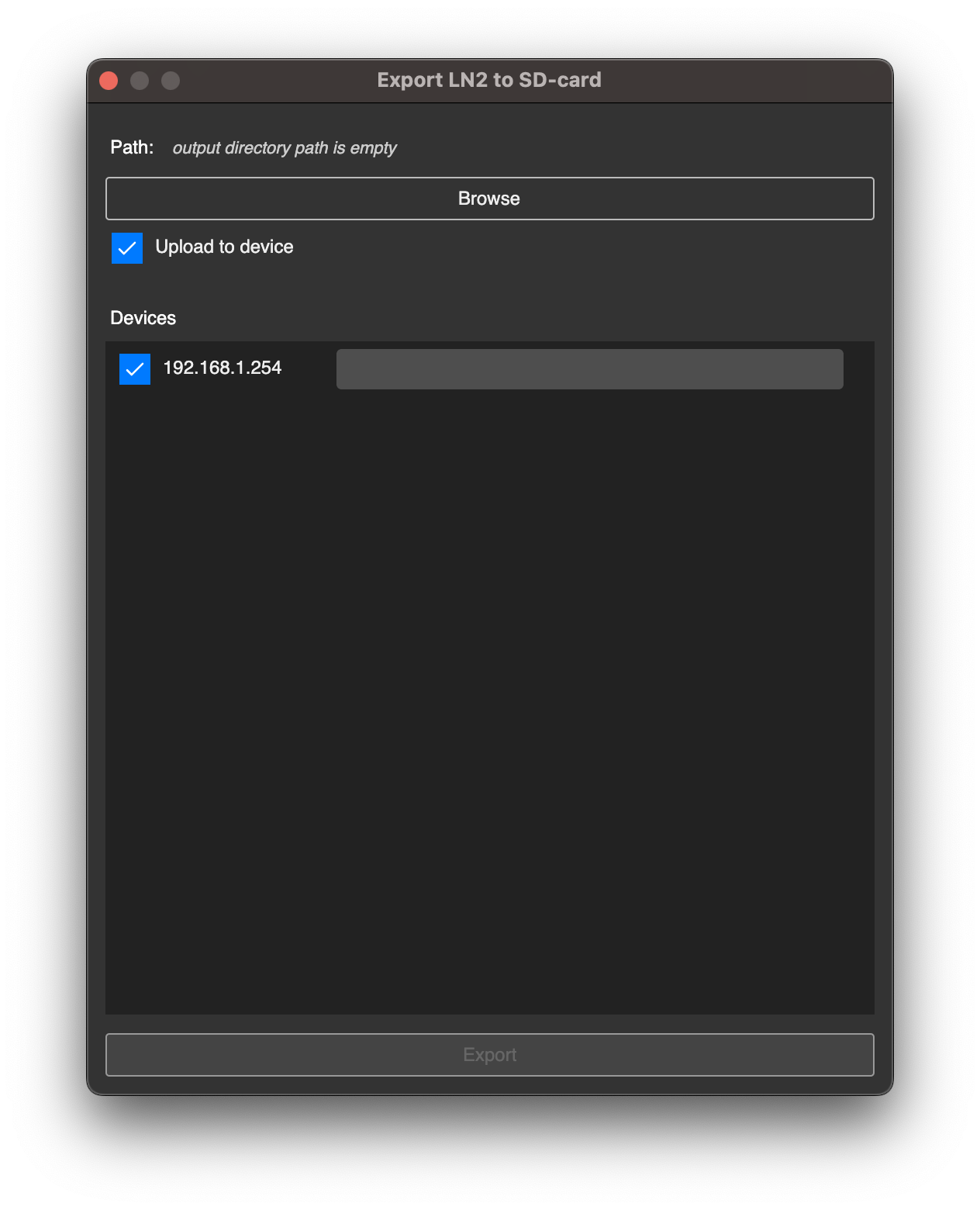

The SD card export feature works with the full range of supported hardware. The software automatically exports only the content belonging to each configured device — so if you have multiple LEC3 controllers in the workspace, each one gets its own correctly addressed export without you having to manually separate content.
Two export formats are supported: LN2 files (pixel data for digital LED strips) and LDM files (DMX data for analog RGB/RGBW strips). Both can be exported to the same SD card for mixed installations.
- LEC3 (LED Ethernet Controller 3) — up to 4096 individually addressable pixels
- SPI Matrix — pixel LED matrix controllers
- Reactivo 2 — wireless/Ethernet Art-Net controller
- Auto-separation of content per device
- LN2 format for pixel strips; LDM format for analog strips
