Pixel LED Controller with Built-In 5A Power Supply

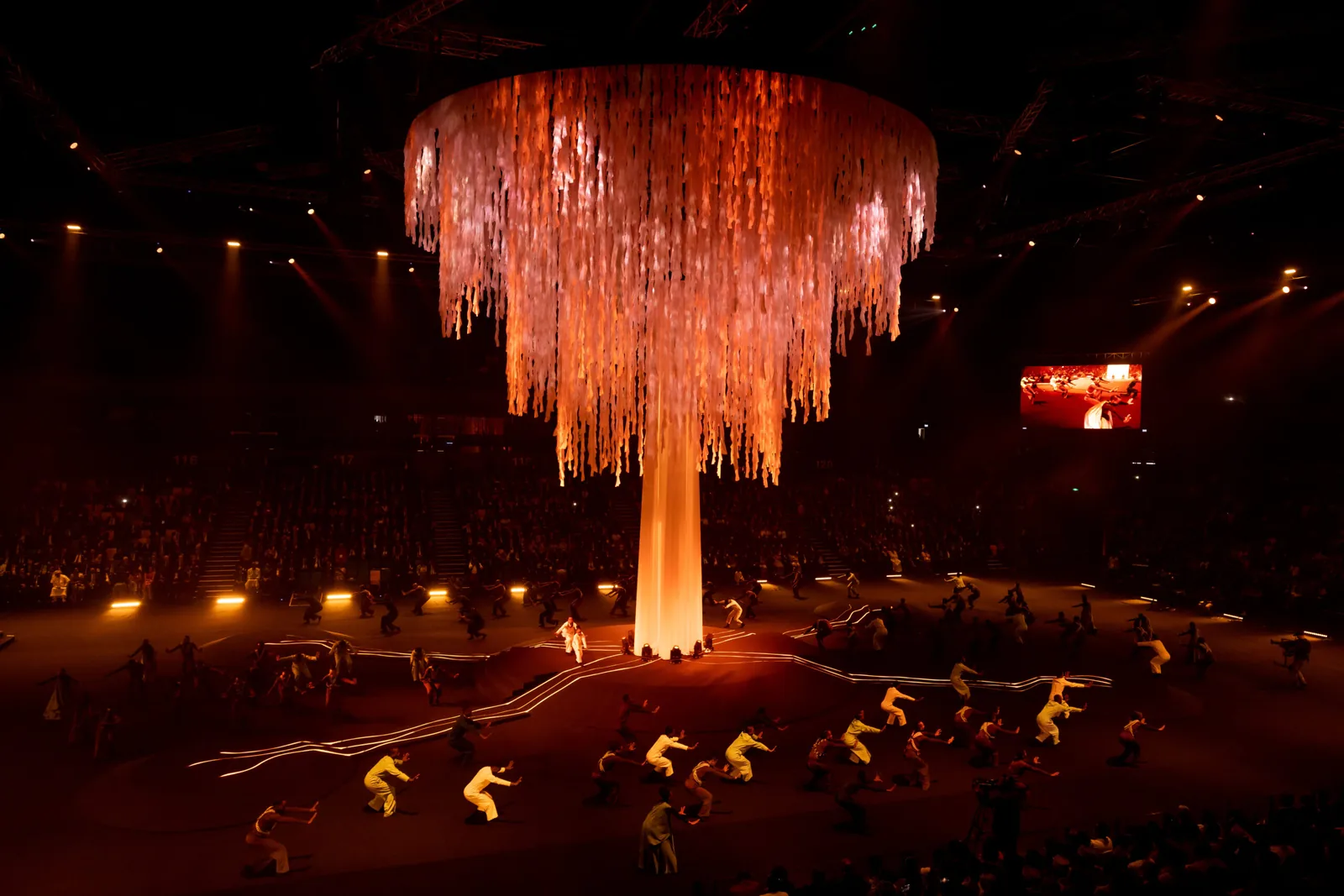

It eliminates external power bricks and complex DC wiring, reducing connection failure points and cleaning up your rack. Think of it as a "show in a box"—ideal for rental projects and fast setups where reliability is critical.

Powered SPI LED Controller 2 comes with a 5-year warranty, like all LED Strip Studio controllers — hardware refined over 15 years of real-world club and stage installations. Full answer in Hardware Warranty and Technical Support.

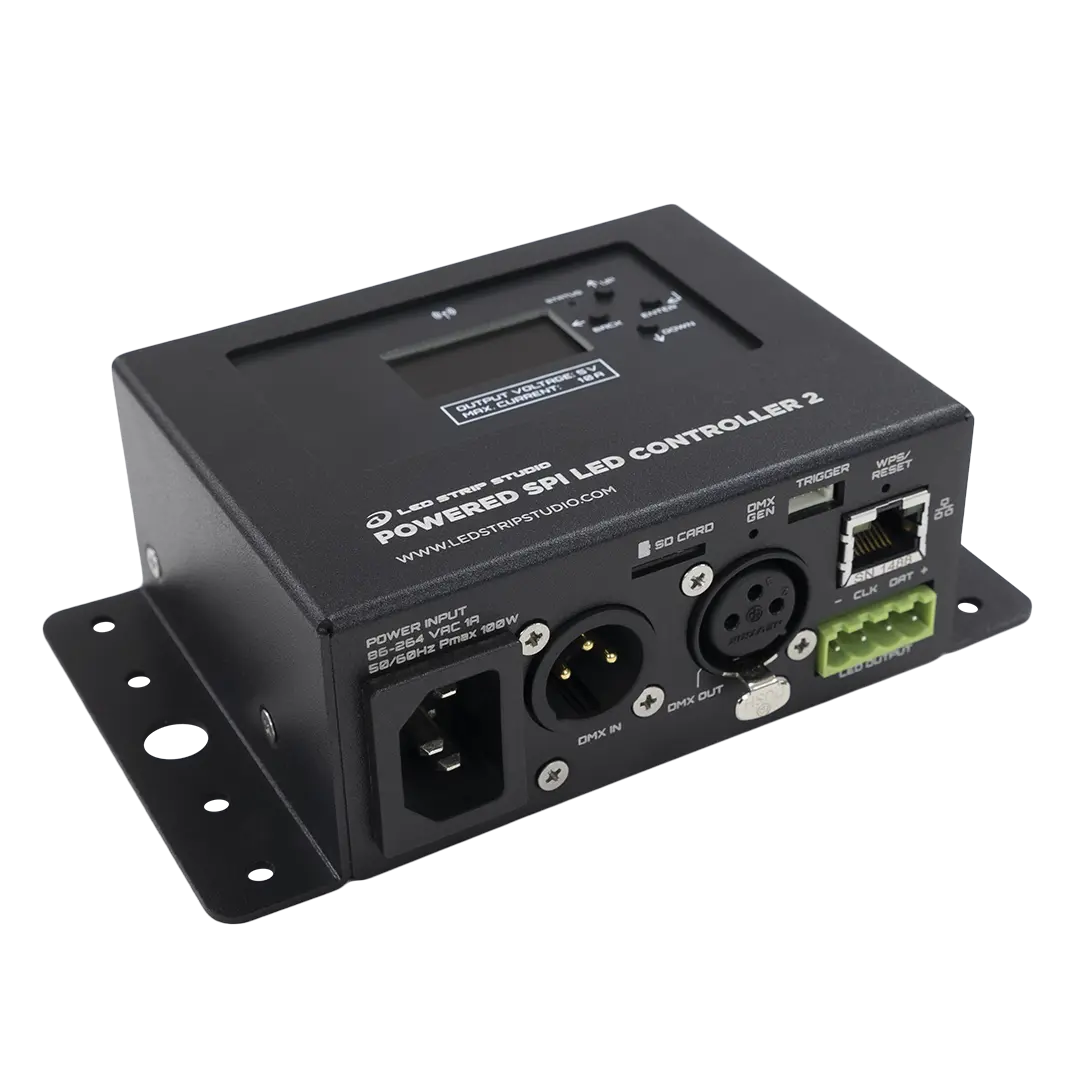

The rugged aluminum enclosure (IP30, 150.6 × 48.1 × 85.2 mm) includes integrated side tabs for mounting via screws, cable ties, clamps, or safety wires. It's compact enough to conceal in stage scenery or tight spaces.

Yes. Standalone and Autoplay modes use a Micro SD card (FAT32, up to 32GB). Store up to 32 animation files in a playlist, set them to loop or shuffle, and trigger specific scenes via external sensors or buttons connected to the trigger inputs. More in Default File and AutoPlay on PSL2.

Over 80 industry-standard SPI protocols, including TM1809, TM1804, WS2811, WS2812B, WS2815, SK6812, APA102, APA104, and more. More in Supported Pixel LED Protocols and ICs.

The built-in 2.4GHz Wi-Fi operates in two modes:

• Access Point (AP) mode — default; creates its own network at 192.168.4.1 for direct phone or laptop control
• Client mode — joins an existing network via WPS pairing to receive wireless Art-Net or sACN data

LED Strip Studio 4 (requires license or device activation)

Art-Net/sACN software: Madrix, MadMapper, Resolume, ChamSys

Lighting consoles: grandMA and any standard DMX512 source

Mobile: LSS Remote app for iOS and Android

A single unit controls up to 1,024 RGB pixels or 768 RGBW pixels per output. How many of them you can power directly depends on the built-in 5A power supply: up to 25W at 5V, 60W at 12V, or 120W at 24V. For longer runs, the controller acts as a signal generator while you add external power to the strips. More in How Many Pixels the PSL2 Can Drive.
