REACTIVO 2
Wireless Pixel LED Controller for Interactive Installations.
Create, trigger and control pixel LED effects wirelessly — from interactive displays and gaming setups to events and permanent installations. Control up to 1,024 RGB or 768 RGBW pixels via Wi-Fi or Ethernet using Art-Net™ or the proprietary LED Strip Studio protocol. Run effects standalone from an SD card, trigger them using buttons, sensors or DMX, or control everything remotely from LED Strip Studio and LSS Remote.
Interactive Pixel LED Control
Reactivo 2 combines Wi-Fi and Ethernet connectivity with powerful standalone playback. Create up to 255 pixel LED effects, store them on the SD card, and trigger them directly from the controller, DMX, sensors, buttons, or automation systems.

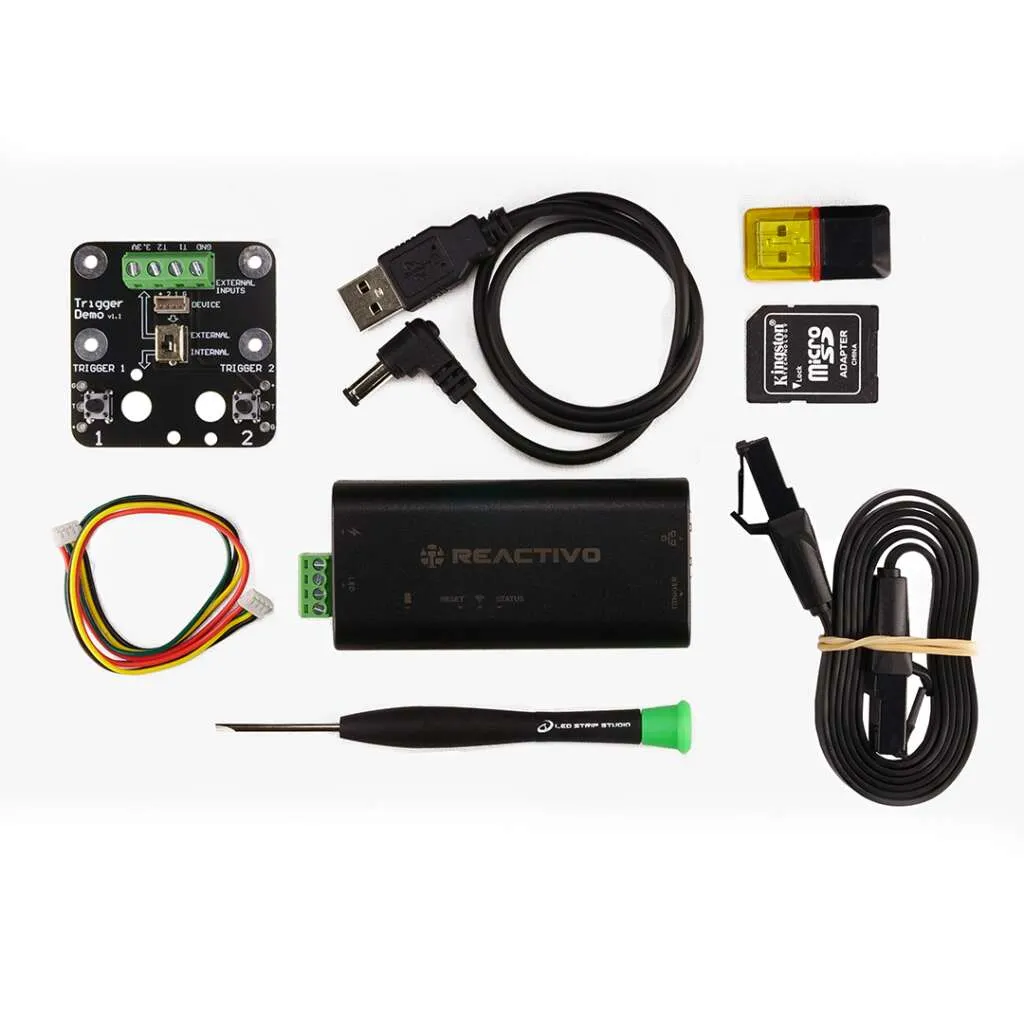

- REACTIVO 2 Controller
- 16GB Micro SD Card
- SD Card Reader
- 1M Ethernet Cable
- DC jack to USB
- Power Cable
- Trigger Board
- Screwdriver
- Terminal block for SPI output
Your Pixel Controller in Your Pocket
Use LSS Remote on iOS or Android to create playlists, select animations, configure the controller, edit zones and adjust colors — without needing a computer.
REACTIVO 2

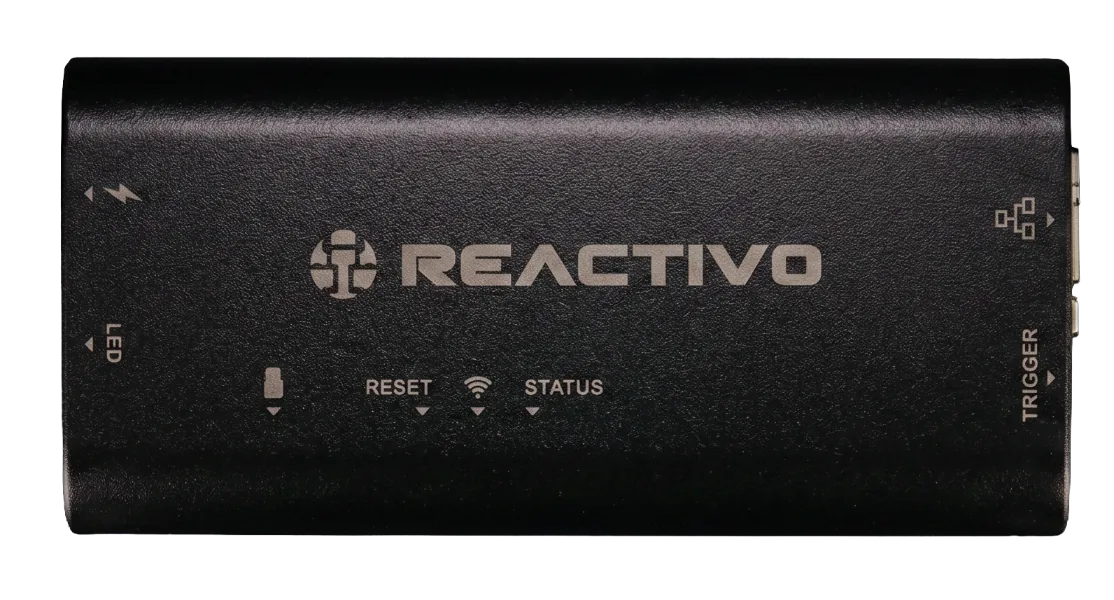

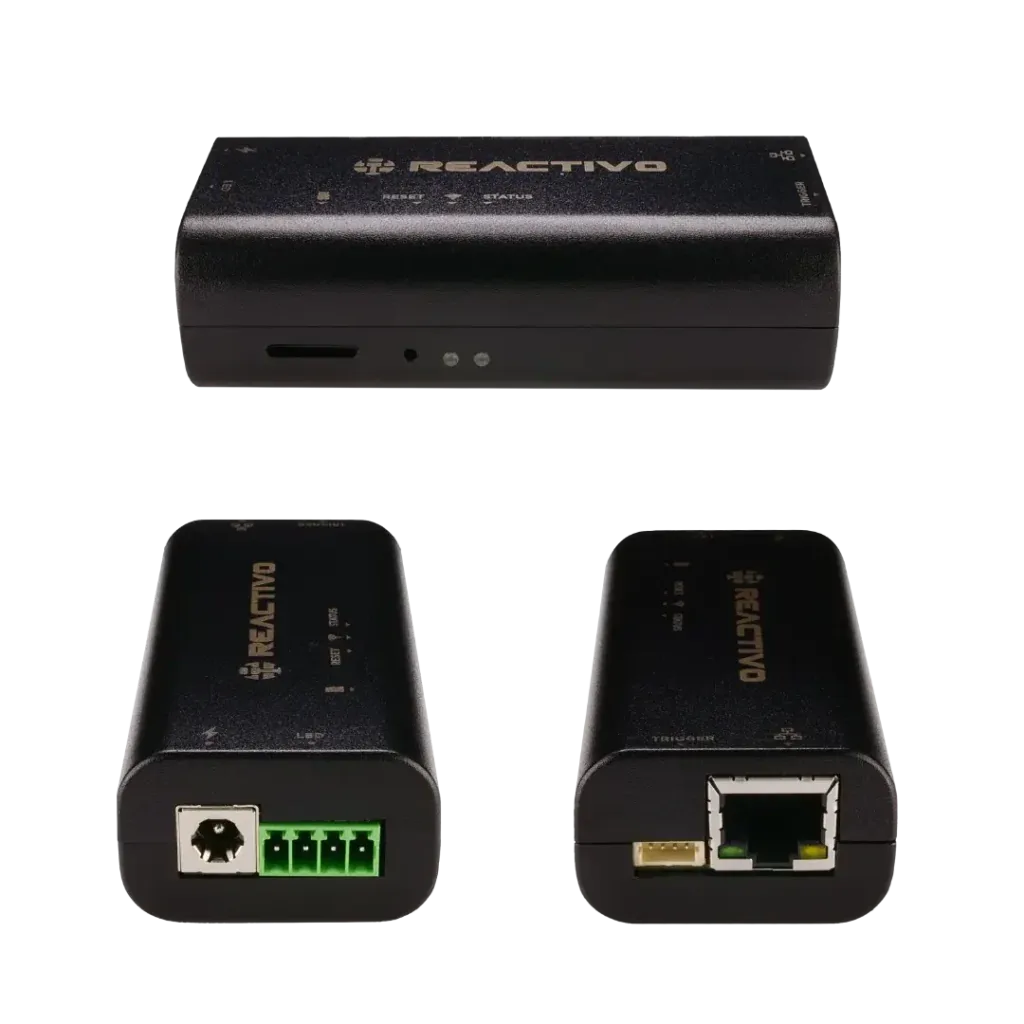

Controller Overview
Built for ease of use, the controller offers essential connectivity, expansion capabilities, and clear hardware interfaces for efficient system integration.

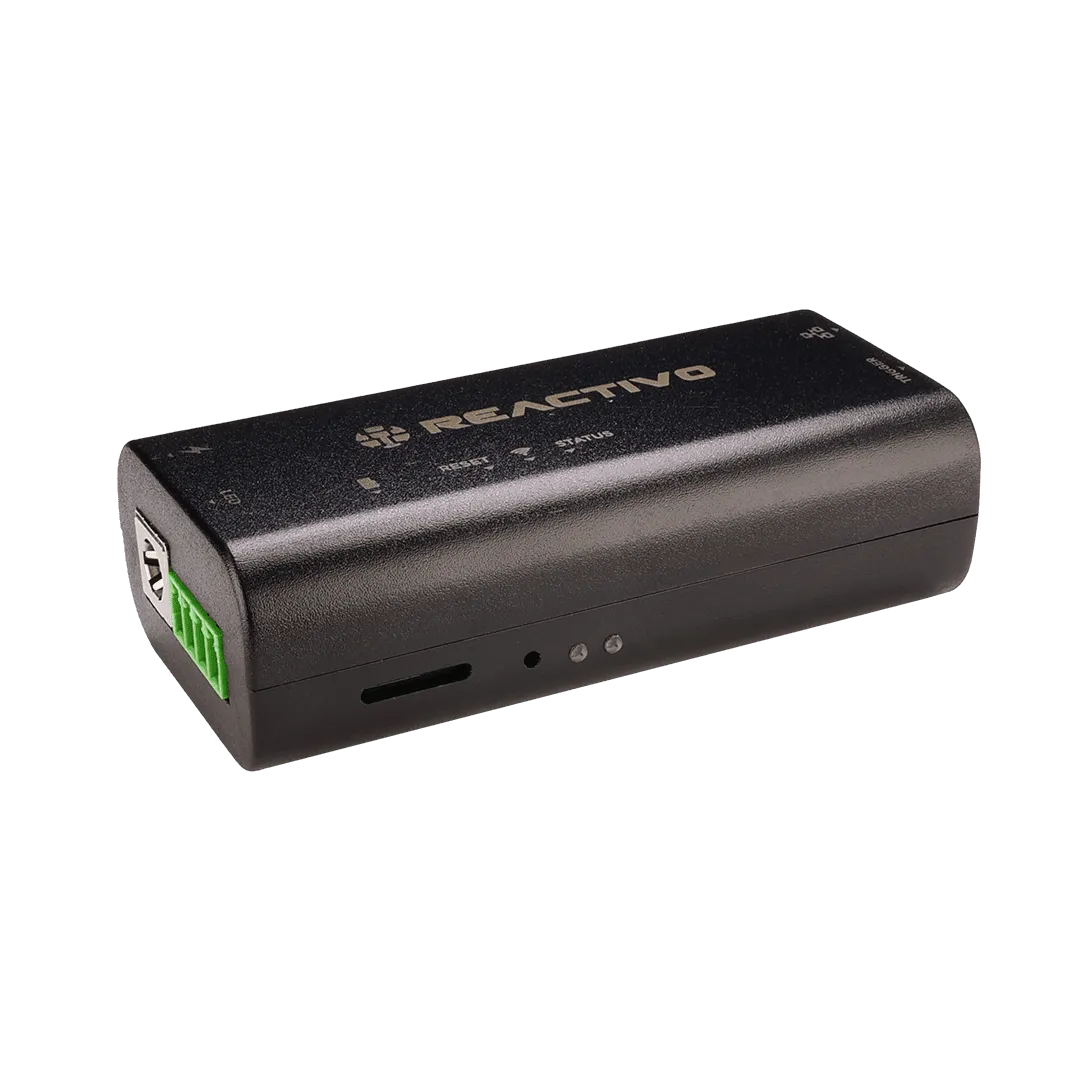

Single Unit
Compact controller ready to drive up to 1,024 RGB pixels out of the box.
Daisy Chain
Connect multiple controllers together to control more LED pixels
REACTIVO 2
See It In Action

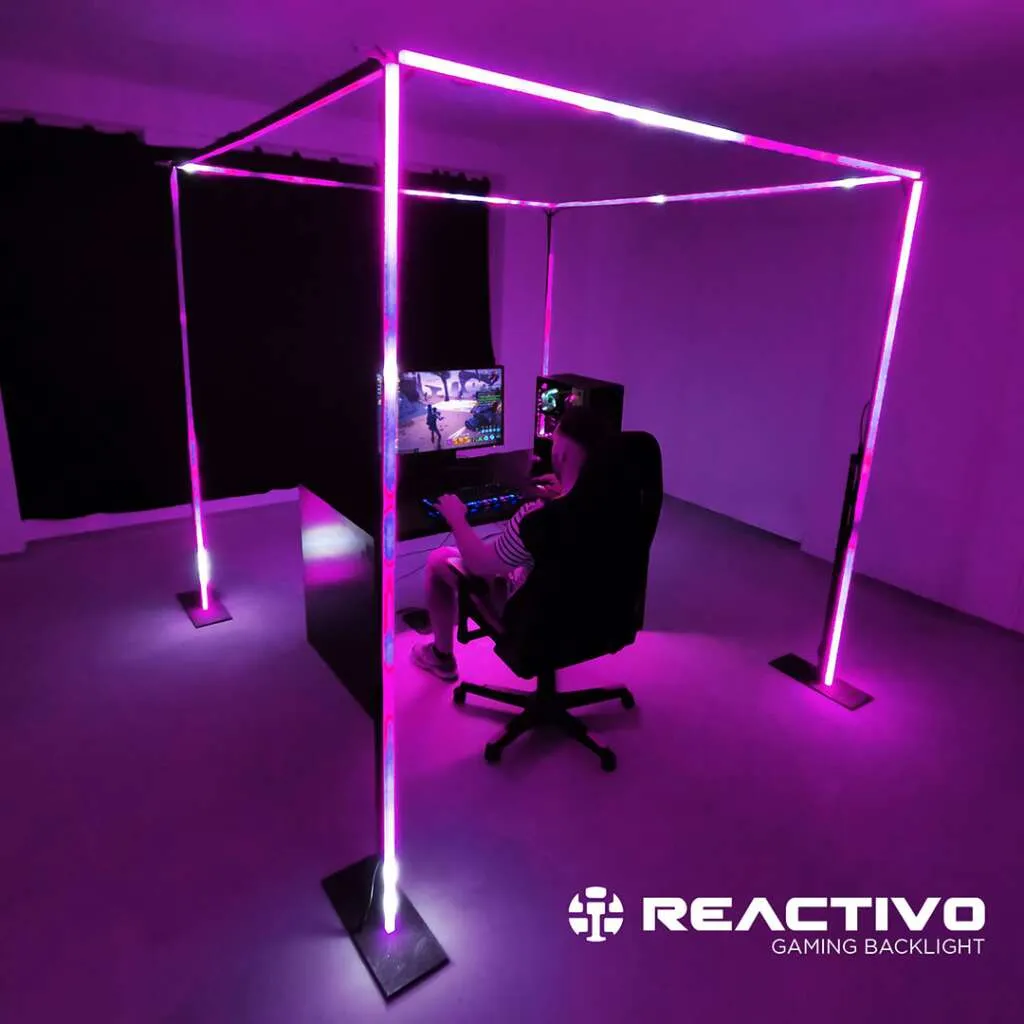

Real installations powered by REACTIVO 2 — ambient light in living rooms and offices, and interactive gaming setups.
REACTIVO 2
Compatibility

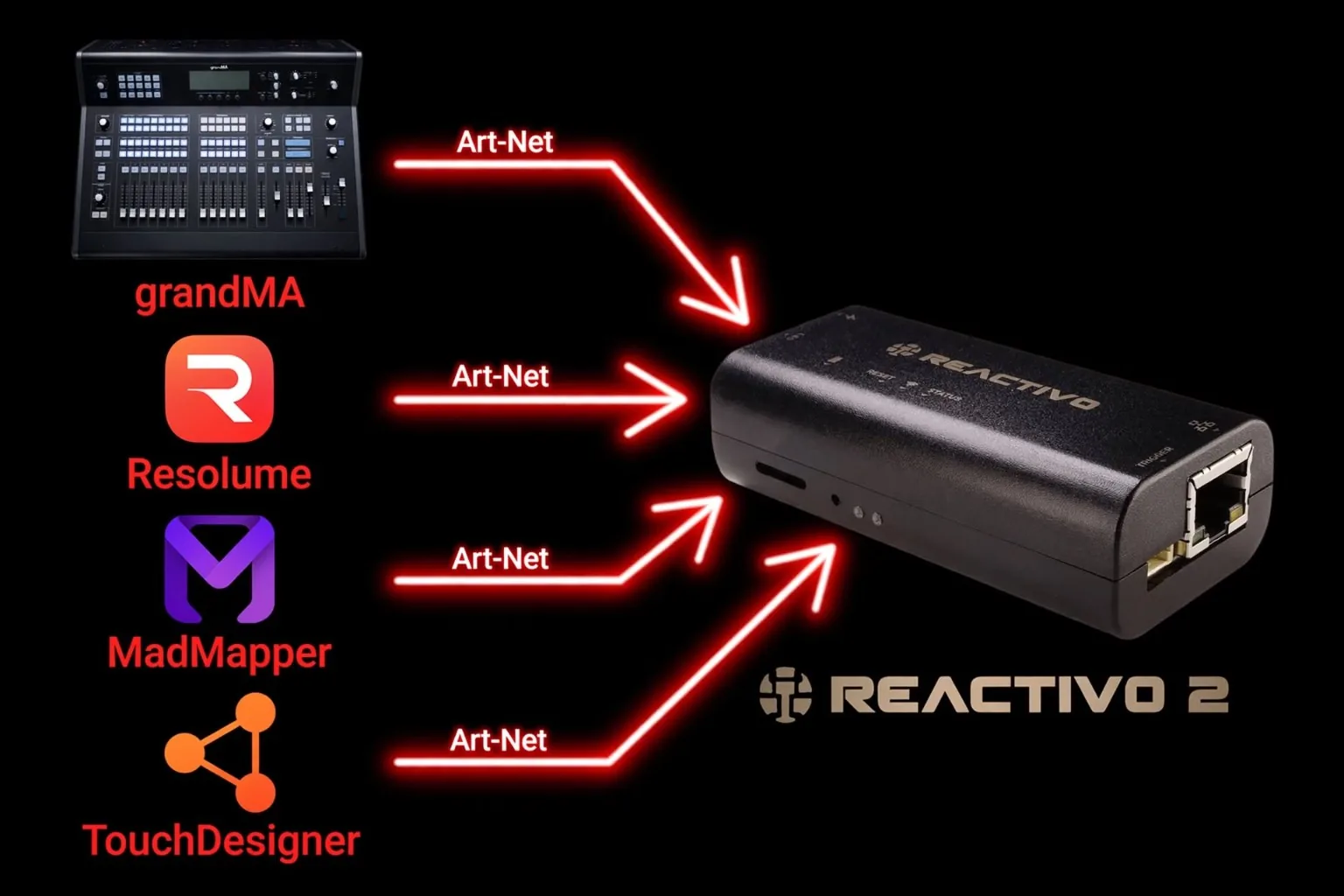

Integrates seamlessly into existing lighting workflows and can be controlled from any Art-Net or sACN-capable software or lighting console.
Reactivo 2 works with professional lighting and media platforms such as grandMA2/3, ChamSys, Resolume Arena, MadMapper, TouchDesigner, Jinx!, and many more. Whether used for live shows, installations, interactive environments, or media-driven LED projects, Reactivo 2 fits easily into your existing control setup.
REACTIVO 2
Trigger & Sensor Input
Reactivo 2 can connect directly to external sensors and control inputs, allowing your LED installation to react to its environment in real time. Connect proximity sensors, light sensors, buttons, sliders, switches, and other compatible inputs to trigger different lighting functions.
Use sensor input to change brightness, trigger animations, adjust animation speed, switch effects, or activate specific lighting scenes. This makes Reactivo 2 ideal for interactive installations where LED lighting responds instantly to people, movement, ambient light, or physical controls — without requiring a separate control system.
REACTIVO 2

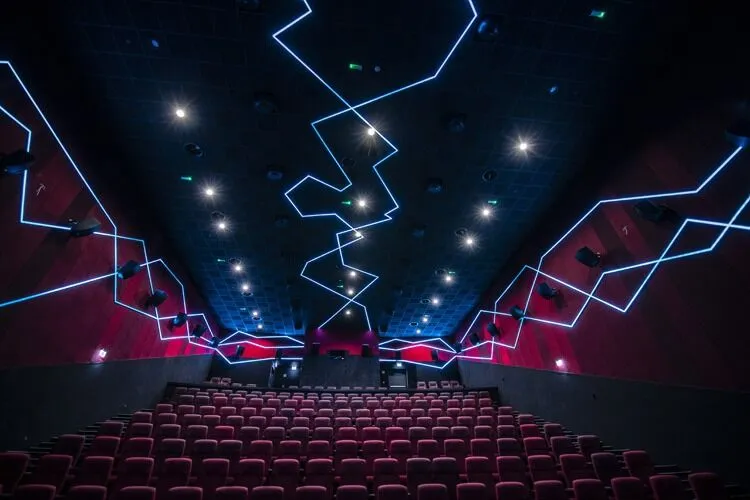

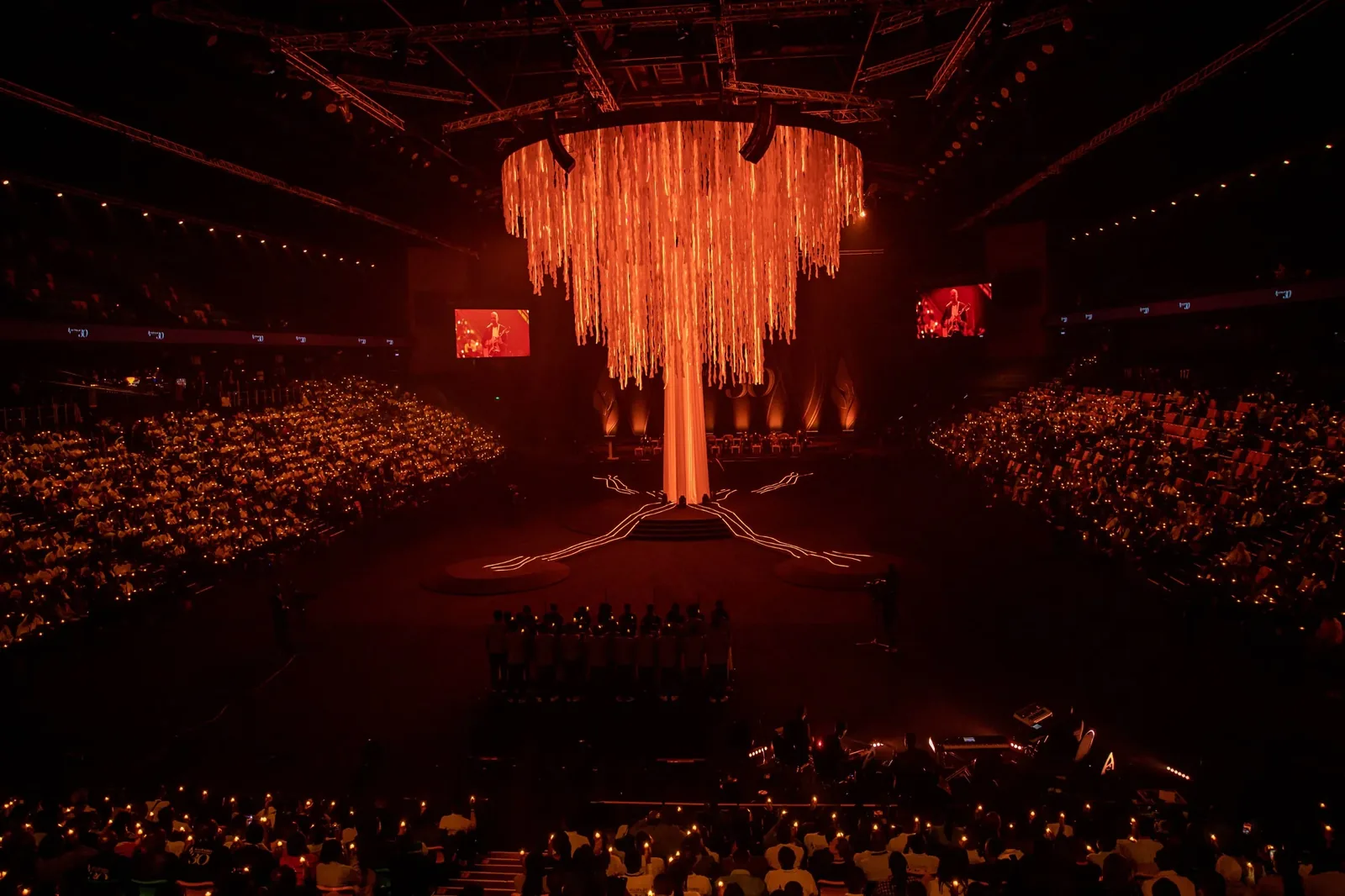

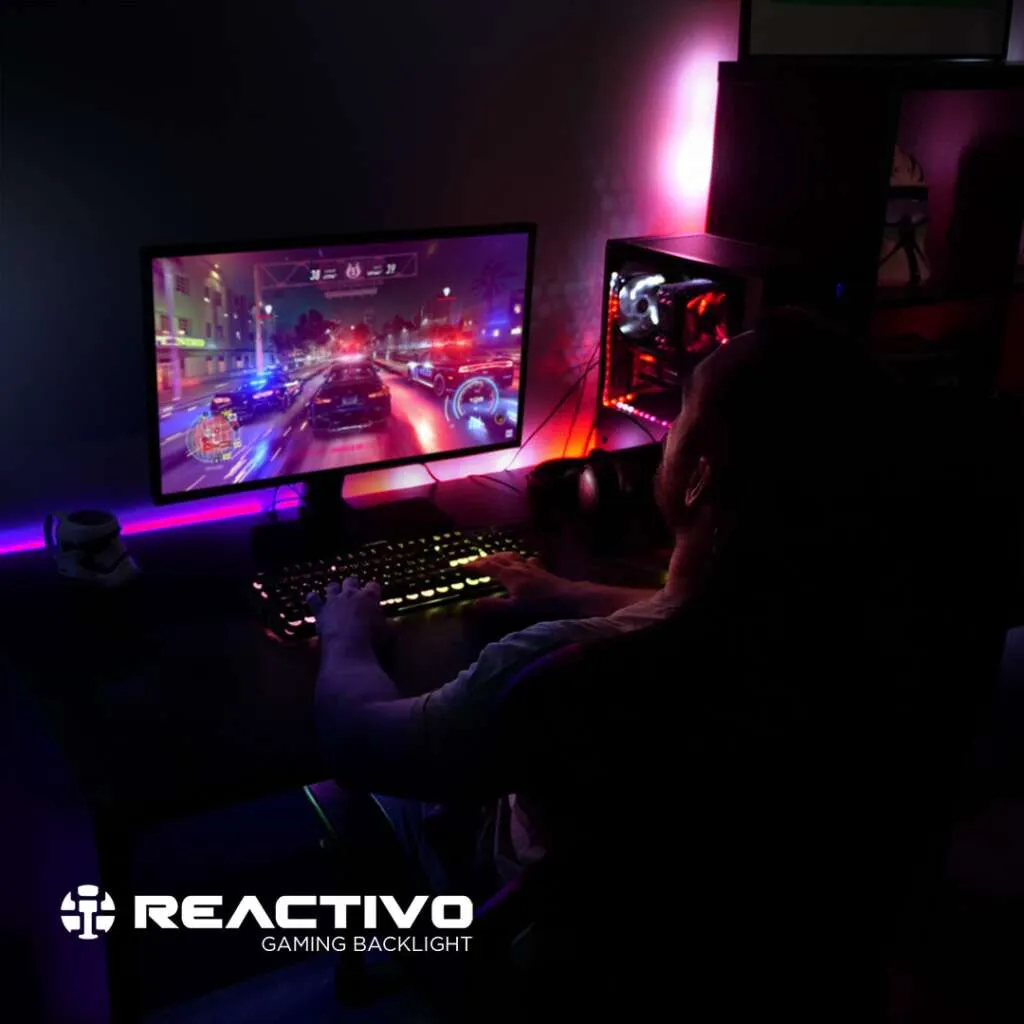

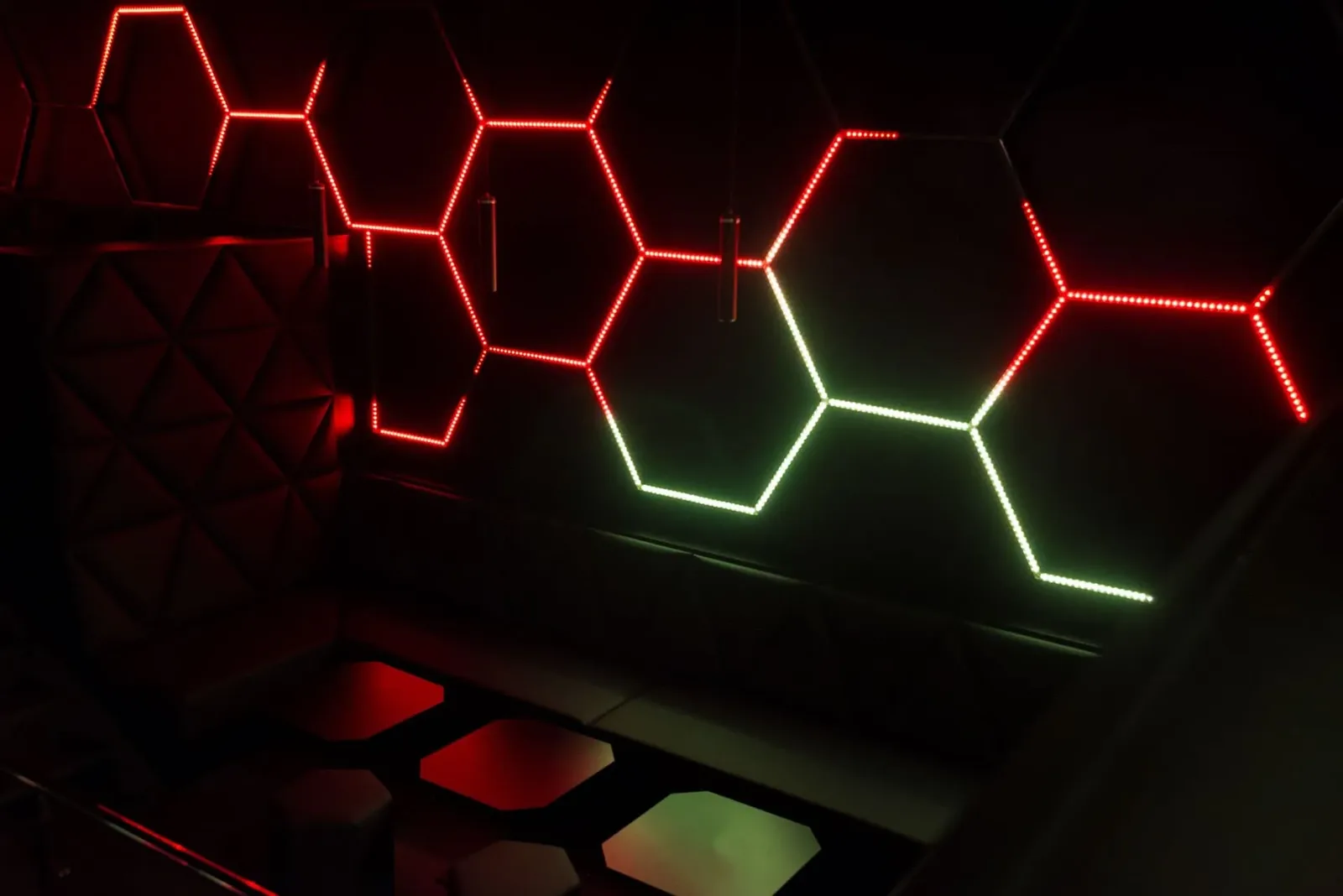

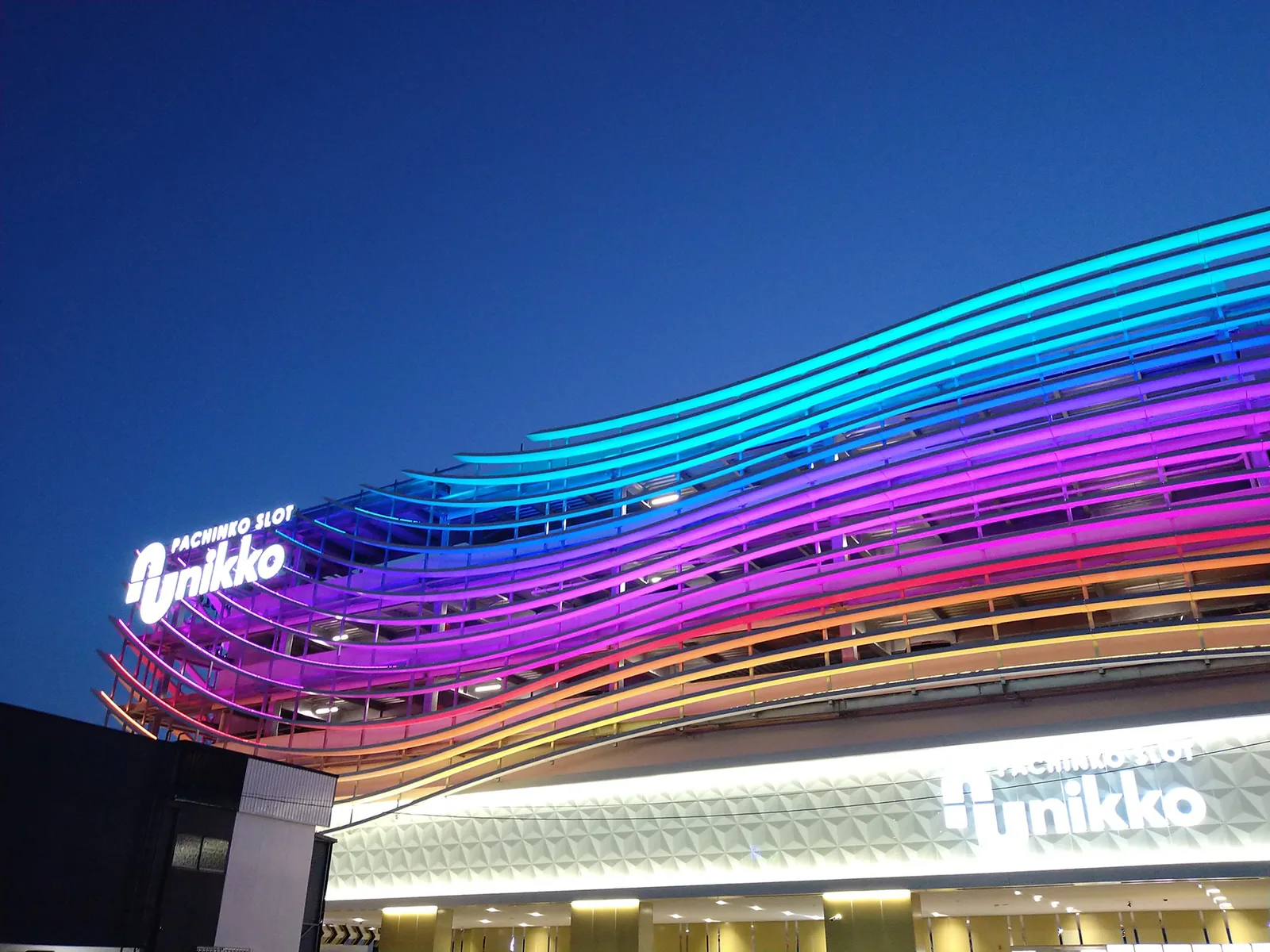

Use Cases
From ambient light in flats and offices to accent lighting, events and gaming setups.
REACTIVO 2
Key Features
LSS Remote App
Create playlists, select animations and configure the controller from iOS or Android
Read More →
Trigger Input
Activate lighting effects via sensors, buttons, relays, or automation systems
Read More →Wide LED Chip Support
Supports a wide range of LED chipsets including WS2812, SK6812, APA102 and more
Read More →Multi-Device Synchronization
Group controllers into Zones in LSS Remote and keep animations, speed and brightness in sync over Wi-Fi or Ethernet
Read More →REACTIVO 2
One controller.
Standalone simplicity.
Choose the complete kit or the controller-only version. Save even more with a 3-pack.
OEM Edition
Controllers only
REACTIVO 2
150 € / excl. VAT
ADD TO CART3 × REACTIVO 2
SAVE 50 EUR
400 € / excl. VAT
ADD TO CARTCompare LED STRIP STUDIO Controllers
Swipe left to see all controllers →
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Device | LED ETHERNET CONTROLLER 3 | SPI MATRIX | SPI LED CONTROLLER | REACTIVO 2 | POWERED SPI LED 2 |
| LED Outputs | 4 | 4 | 1 | 1 | 1 |
| Max. LEDs per Output | RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Max. LEDs per Device | RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 – 4096 RGBW: 768 – 3072 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
RGB: 1024 RGBW: 768 |
| Art-Net™ Universe | 6 – 24 Universes | 6 – 24 Universes | – | 6 Universes | 6 Universes |
| Software License | Lifetime | 1-Year | Lifetime | 1-Year | Lifetime / 1-Year |
| Required Power | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 5 – 24V / 0.3A | 86 – 264 VAC (built-in PSU) |
| Pass-Thru Current | 20A | 20A | 10A | 7A | 5A |
| Ethernet Ports | 2 | 2 | – | 1 | 1 |
| Wi-Fi | – | – | – | ✓ | ✓ |
| DMX IN Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| DMX OUT Connector | XLR 3-pin (optional 5-pin) | XLR 3-pin (optional 5-pin) | RJ-45 | – | XLR 3-pin (optional 5-pin) |
| LED Output Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | 15EDGK-3.5-04P-14-00Z(H) TME: 15EDGK-3.5/4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
| Power Connector | XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
XY2500F-A(5.0)-4P TME: TBW-5.0-K-4P |
SH04-5-GY | DC Jack | IEC C14 |
| SD Card | ✓ | ✓ | ✓ | ✓ | ✓ |
| Real-time Art-Net™ Software Control | ✓ | ✓ | – | ✓ | ✓ |
| Real-time LSS Software Control | ✓ | ✓ | – | ✓ | ✓ |
| DMX Synchronization | ✓ | ✓ | ✓ | – | ✓ |
| Ethernet Synchronization | ✓ | ✓ | – | ✓ | ✓ |
| DIP Switch | ✓ | ✓ | – | – | – |
| SPI LAMP Support | ✓ | ✓ | – | – | – |
REACTIVO 2
How to Work with REACTIVO 2
Watch the full webinar covering setup, configuration, and control.
REACTIVO 2
Software Overview
A walkthrough of the REACTIVO software controls and workflow.
REACTIVO 2
FAQ
Over Wi-Fi or Ethernet using the LSS Remote app (iOS/Android) or the desktop LED Strip Studio software. More in LSS Remote App for iOS and Android.
Up to 1024 RGB or 768 RGBW pixels via Art-Net or LSS. Full answer in Pixels and Universes per Controller.
Yes. Trigger effects directly using hardware buttons, sensors, or DMX.
Yes. Store up to 255 effects on the SD card and trigger them via hardware buttons or DMX, fully standalone.
The controller only, without the full accessory kit — ideal for integrators building their own enclosures.
Yes. Daisy-chain multiple controllers to scale up to larger LED installations. More in Reactivo Zones and Synchronization.
Need Help Choosing Hardware?
Tell us about your installation and we'll help you decide if REACTIVO 2 is the right fit.
