XMAS DIMMER
Turn Ordinary Christmas Lights into a DMX Light Show.
Keep your existing Christmas lights. Add DMX control.
Xmas Dimmer lets you control traditional low-voltage Christmas light strings from any DMX console, DMX player or LED Strip Studio. Fade them, chase them, synchronize them to music and coordinate them with the rest of your lighting rig.
Up to 8 light strings. 2 DMX channels per string.
XMAS DIMMER
From Decoration to Lighting Fixture

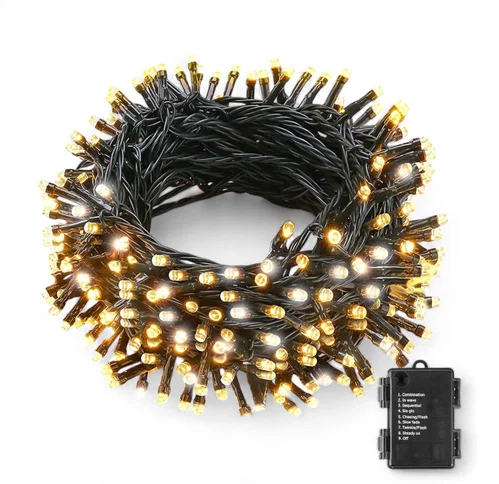

Traditional Christmas lights normally come with a small controller offering a handful of automatic blink modes. Xmas Dimmer replaces that limitation with DMX control.
Connect your existing low-voltage Christmas light strings and control them just like professional lighting fixtures. Create fades, chases, timed cues and music-synchronized shows — without replacing the decorative lights themselves.

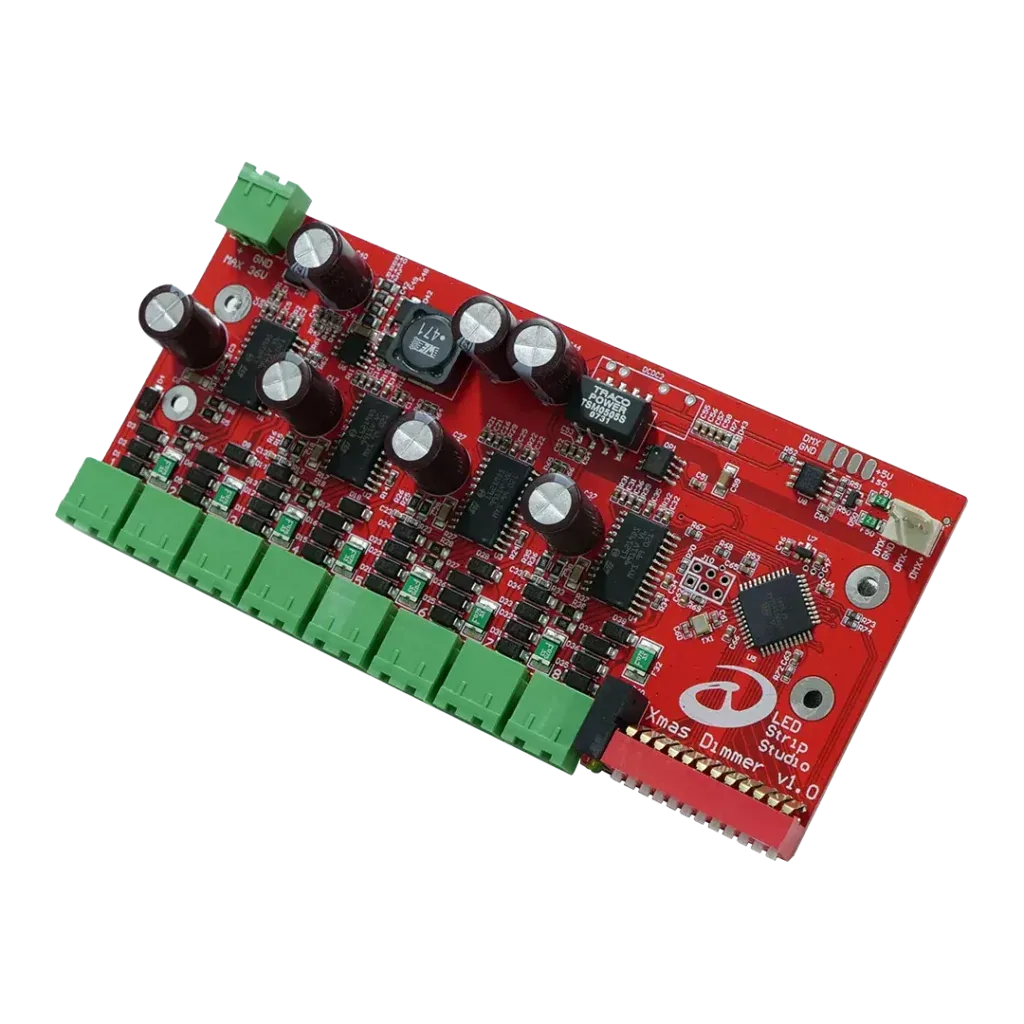

Control up to 8 separate strings from one board, with 2 DMX channels per string for independent control of their two internal circuits.
- Xmas Dimmer PCB
- DMX break-out cable
- 9× 2-pole terminal block plug, 5 mm pitch
XMAS DIMMER
Your Christmas Lights. Your DMX Show.
Why replace thousands of meters of existing Christmas decorations with expensive DMX fixtures?
Keep the look. Upgrade the control.
Thousands of venues already own traditional Christmas decorations. There is no reason to replace them just to create a synchronized light show.
Xmas Dimmer replaces the basic blink-mode controller with DMX control. Keep the same strings, the same appearance and the same installation — but gain fades, chases, cues and synchronization with music and other lighting equipment.
What You Can Do With It
Xmas Dimmer bridges the gap between ordinary decorative lighting and professional show control:
- Use the Christmas lights you already own
- Control them directly from DMX
- Program fades and chases
- Synchronize lighting to music
- Combine them with moving lights, LED fixtures and pixel effects
- Control multiple strings from one timeline
- Create completely custom sequences instead of fixed blink modes
It turns a simple Christmas light string into a controllable part of your lighting system.
Any DMX Controller
One protocol for the whole installation

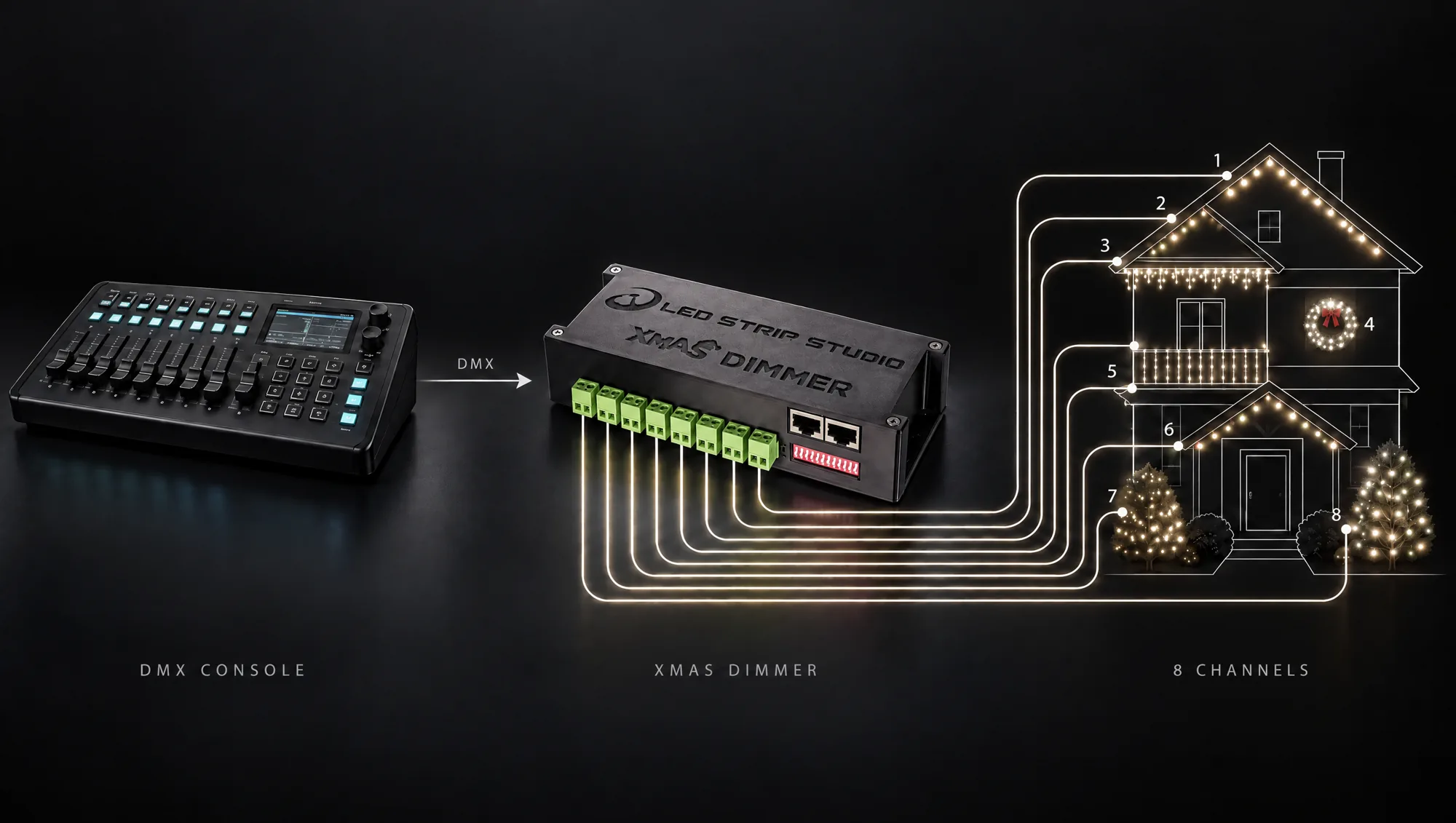

Any DMX controller does the job: the console you already own, a small architectural DMX player, or an LEC3 or SPI LED Controller running LED Strip Studio software.
Your Christmas strings then sit on the same DMX line as floodlights, pixel fixtures and effects. One operator, one timeline and one set of cues cover the entire scene.
Weddings
Dimmable Festoon Lights for Weddings

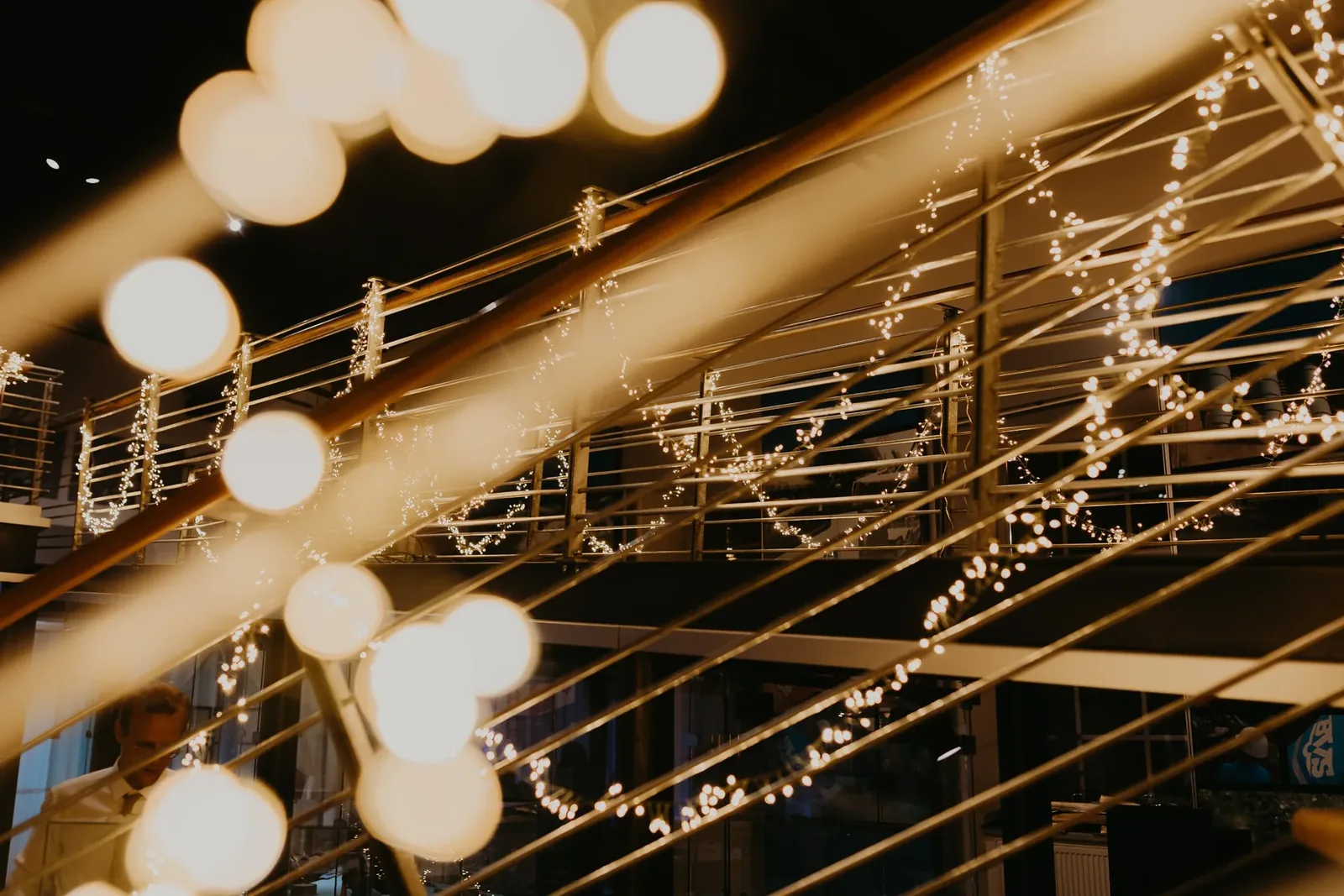

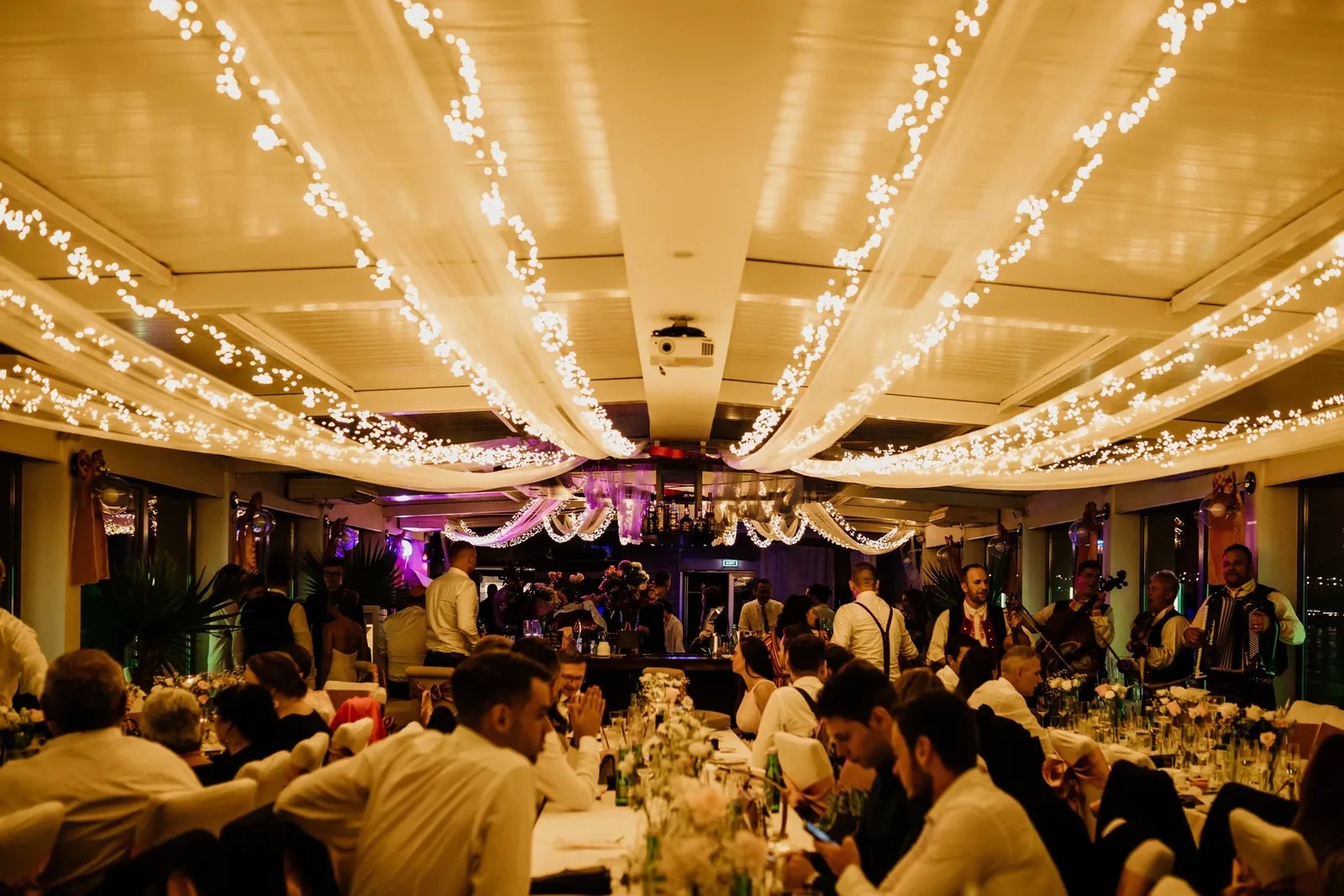

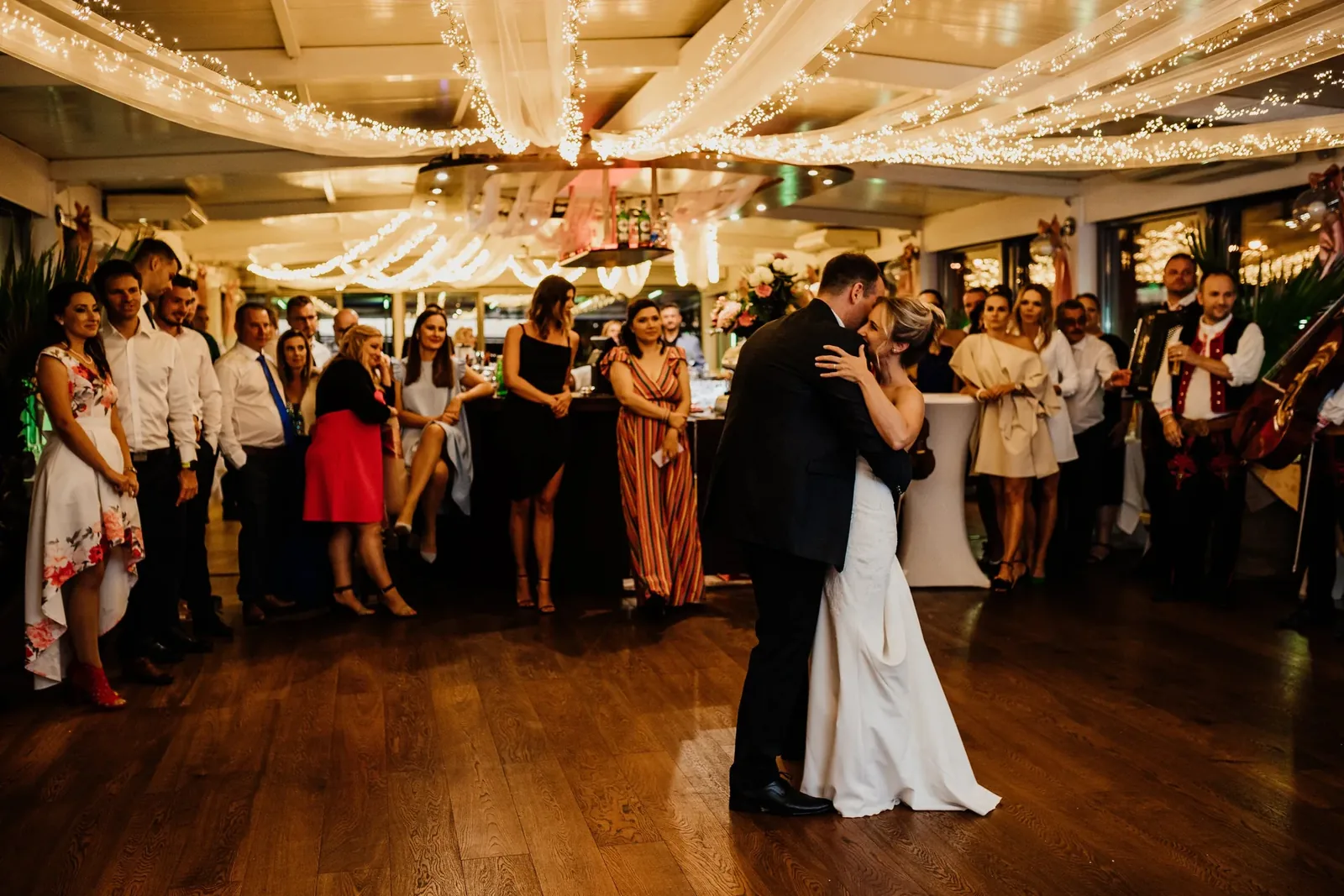

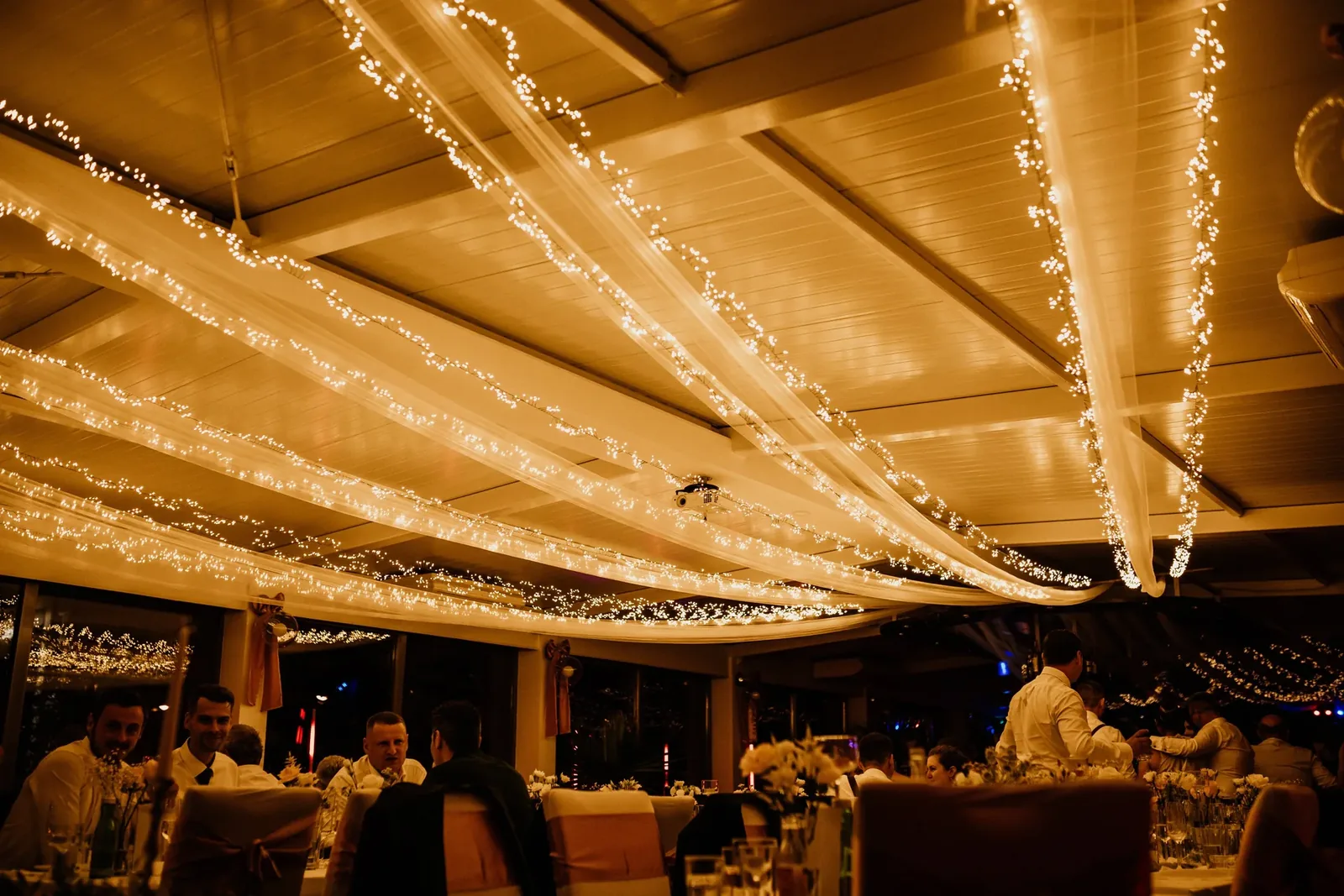

Wedding venue lighting on one dimmer: Edison bulbs and festoon lines in warm white for the dinner, dimmed down for the first dance and brought back up for the party, all recalled over DMX. The same outputs drive dual-polarity string lights on terraces, in marquees and in barn venues.
Events
Christmas Light Shows at Winter Events

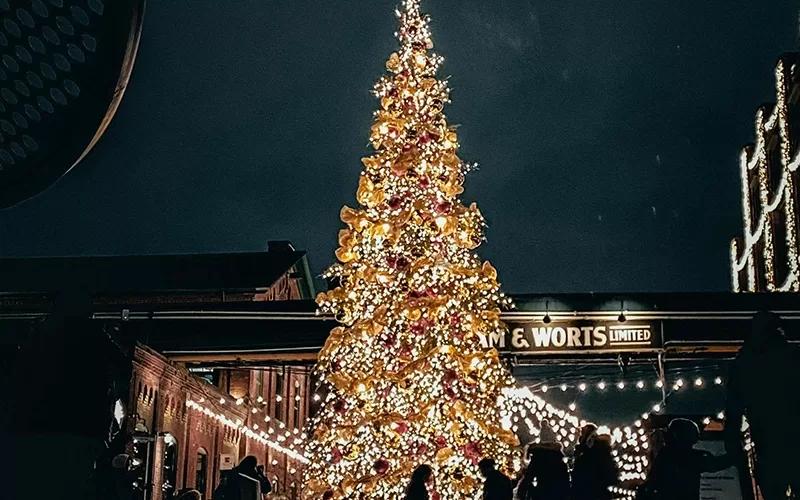

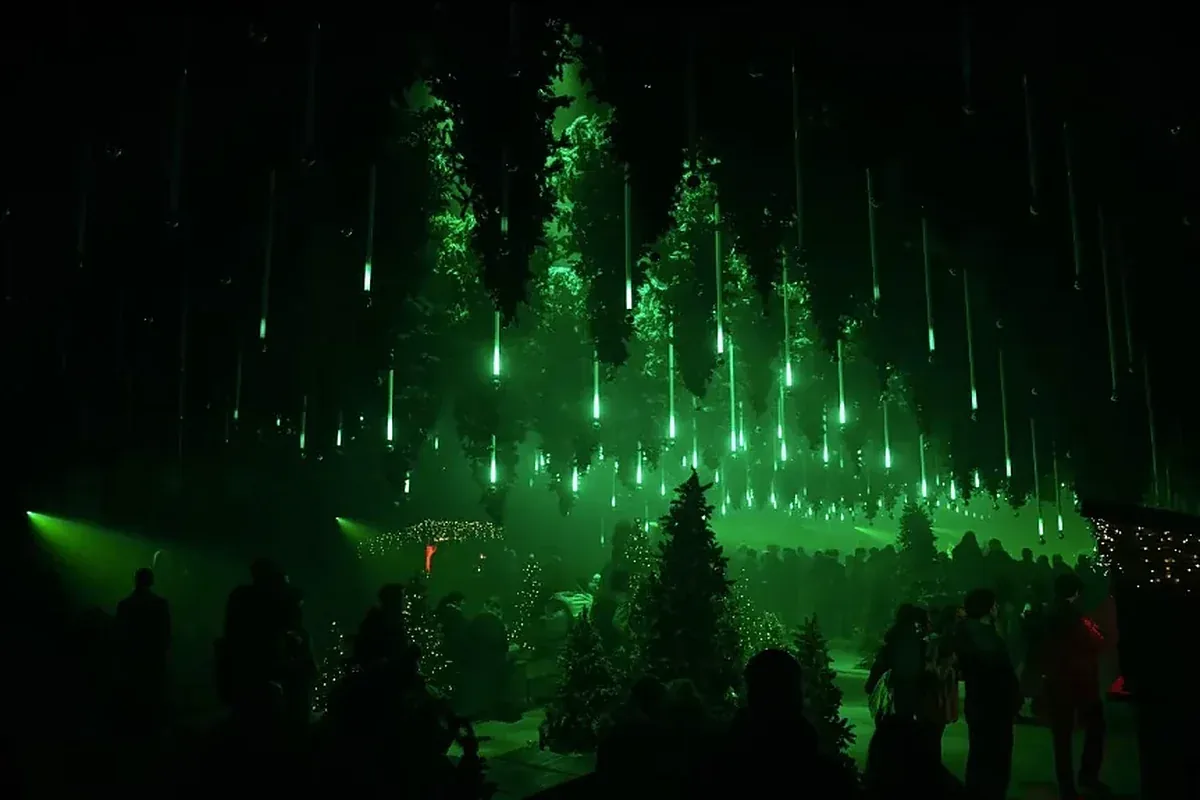

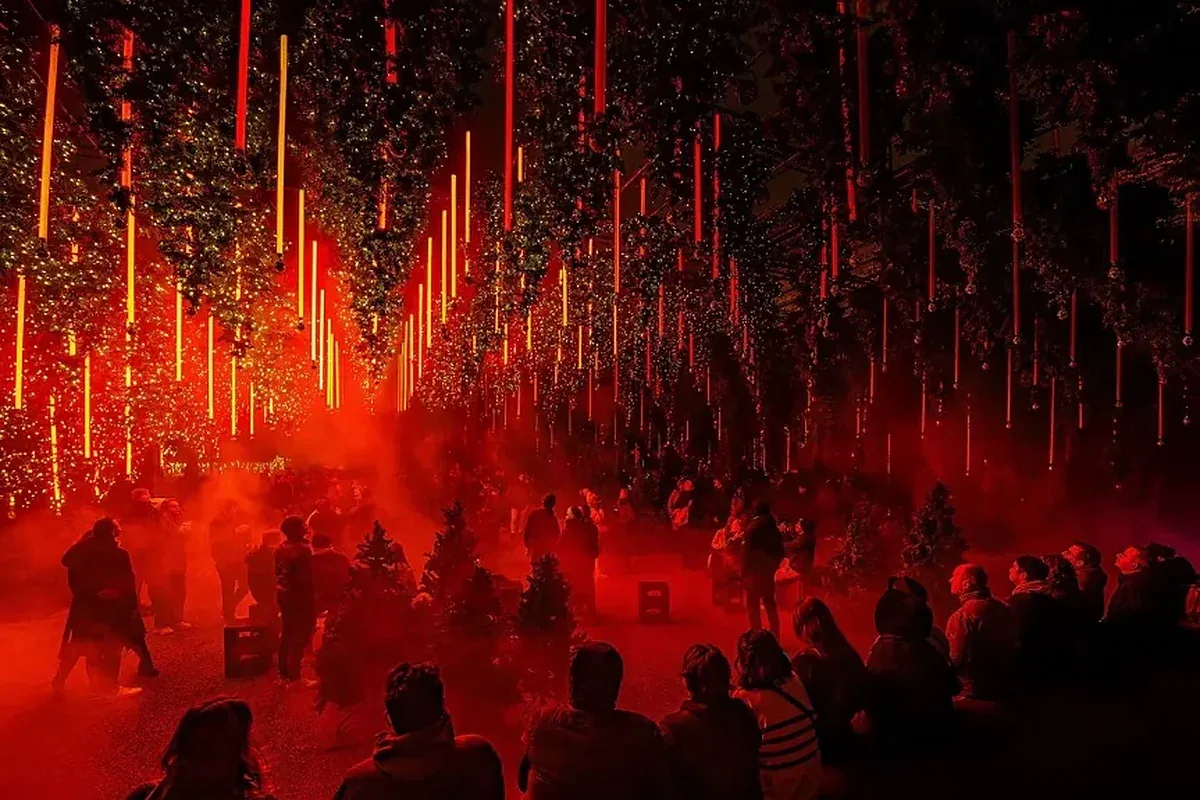

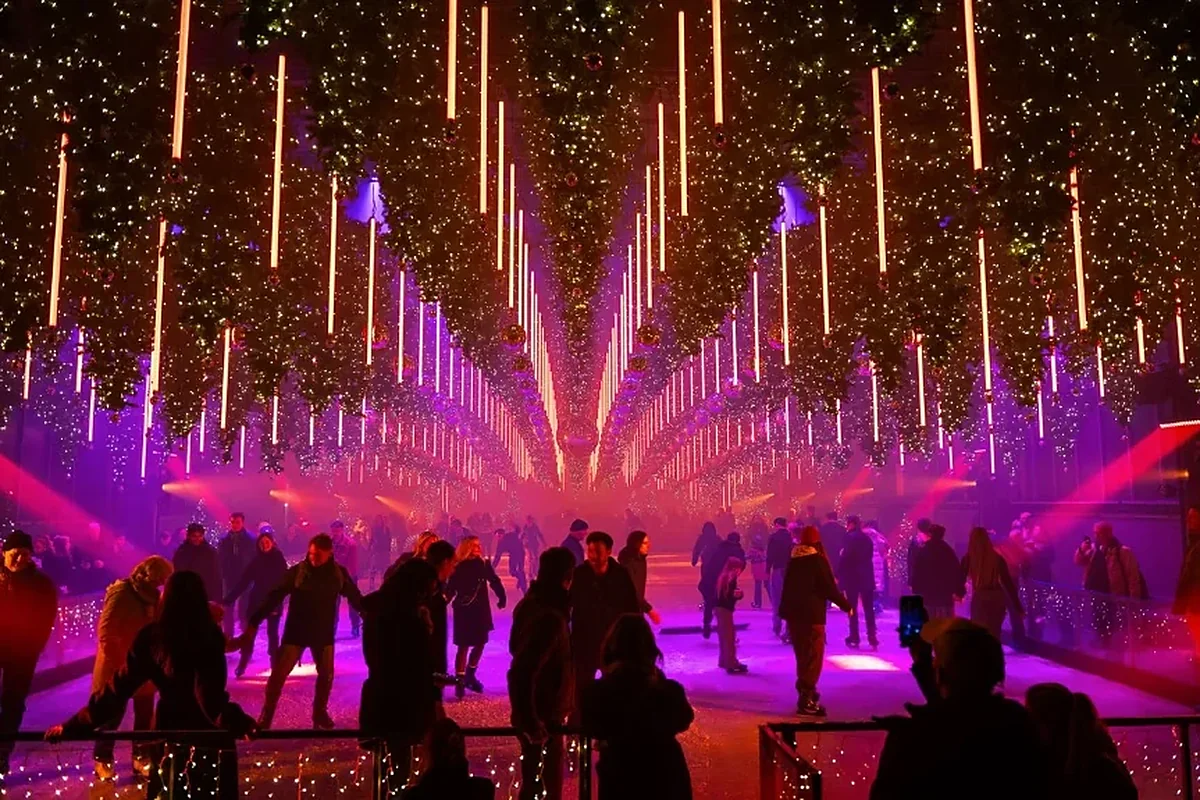

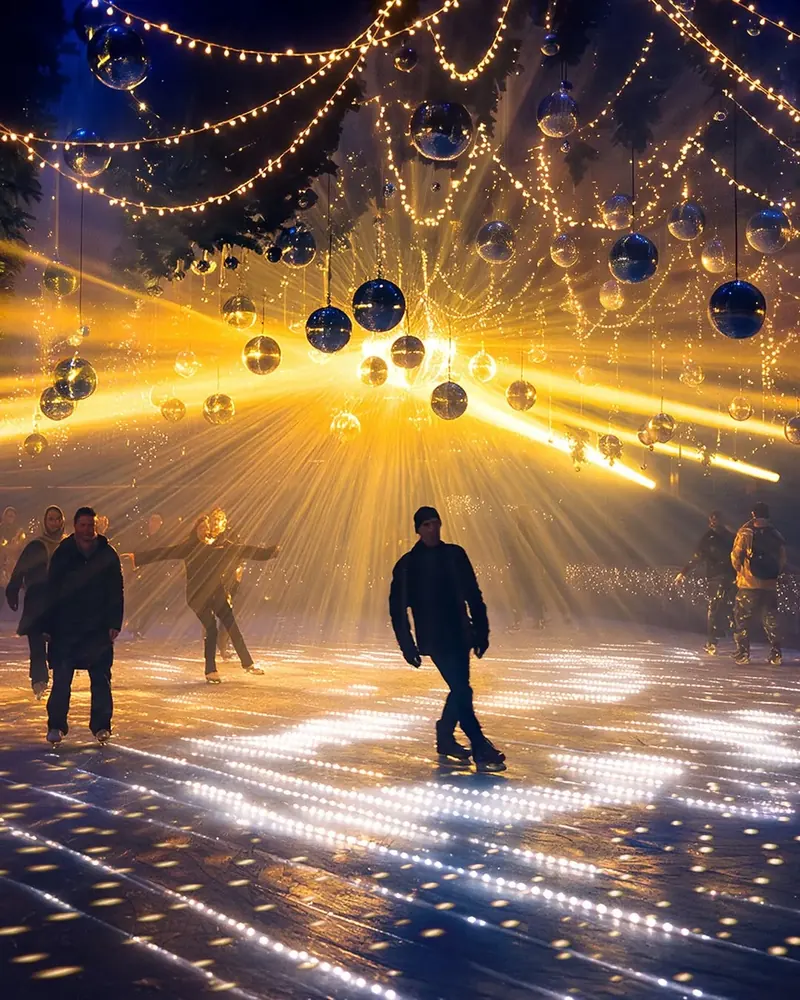

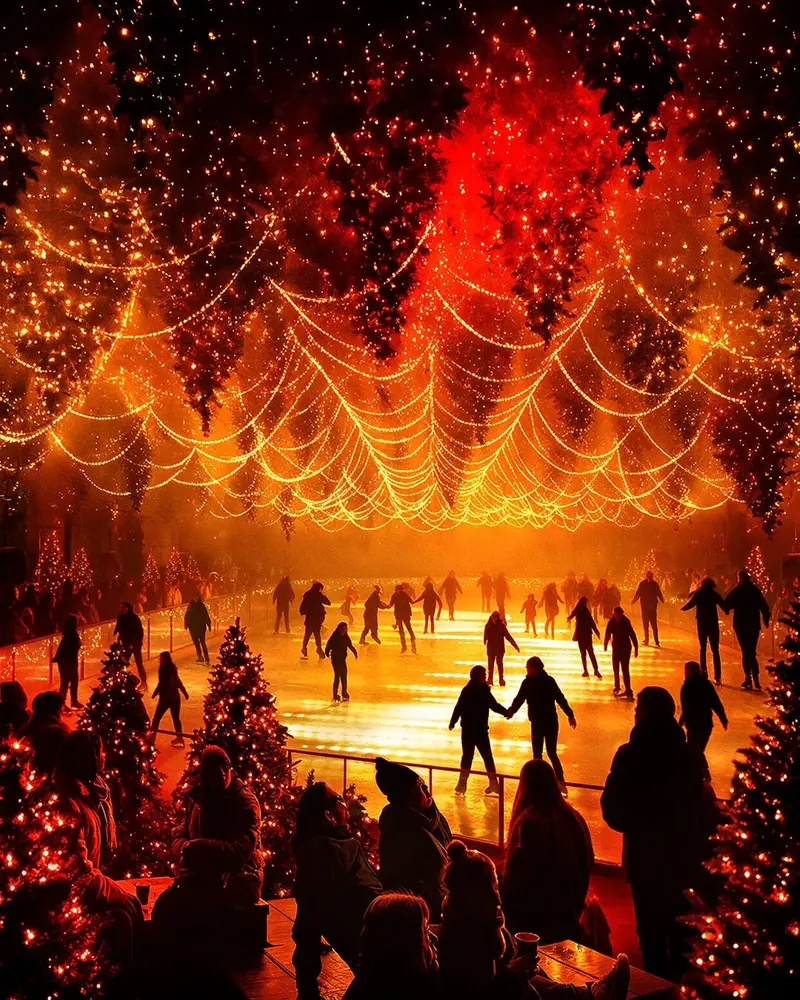

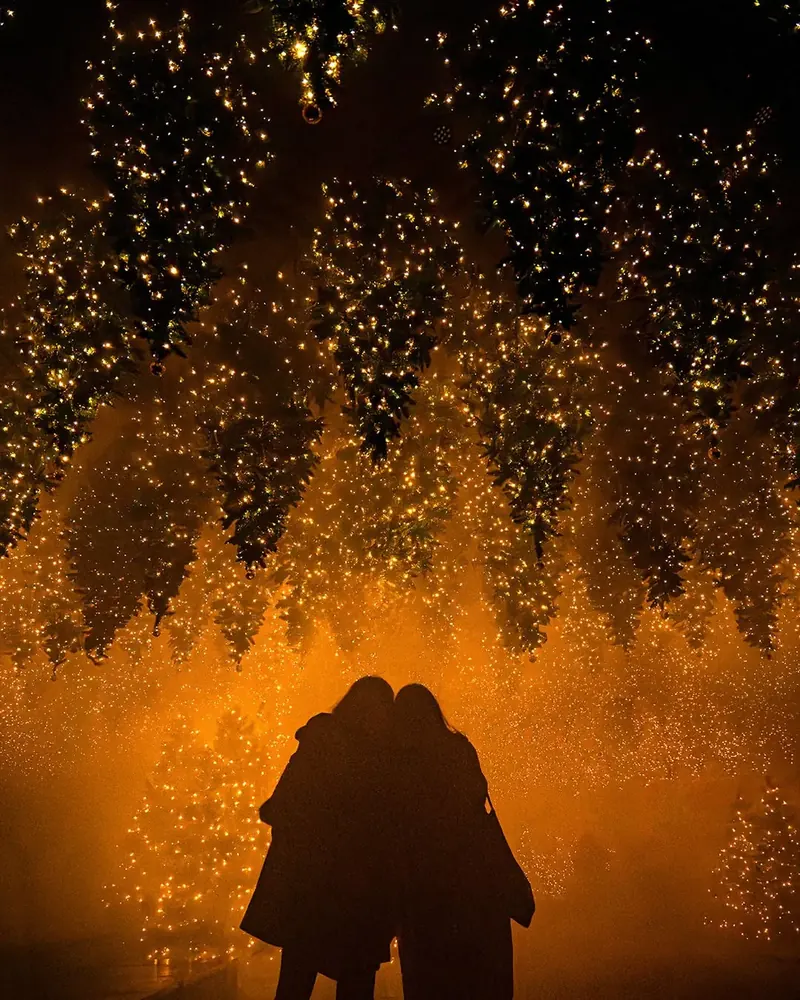

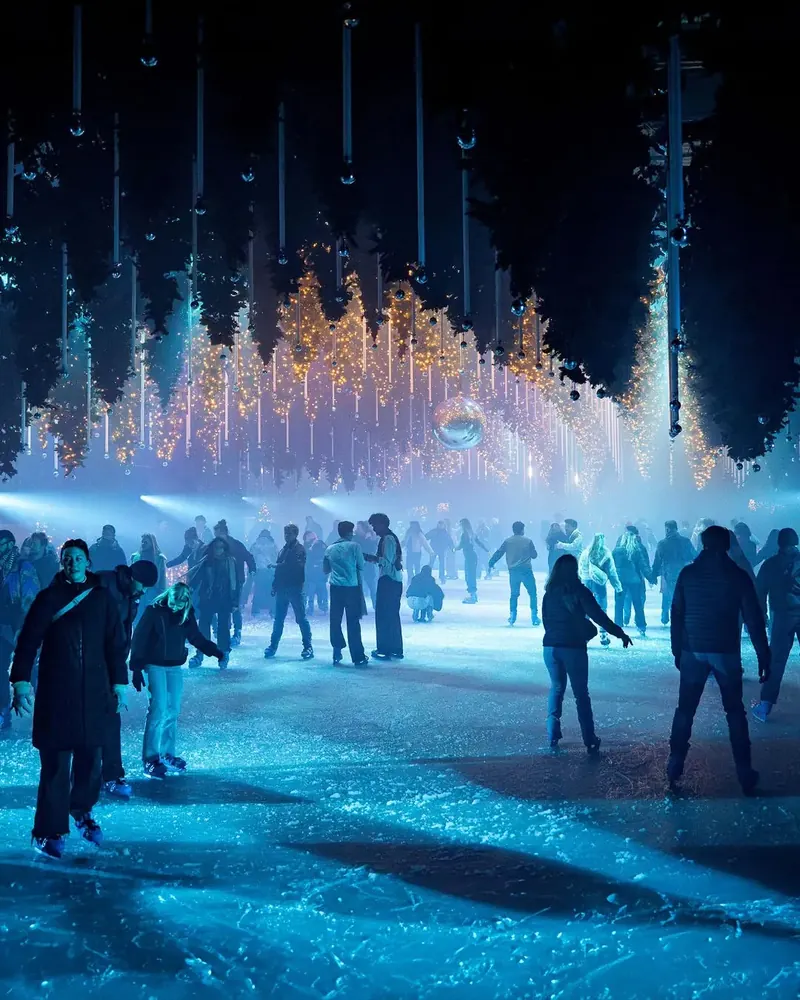

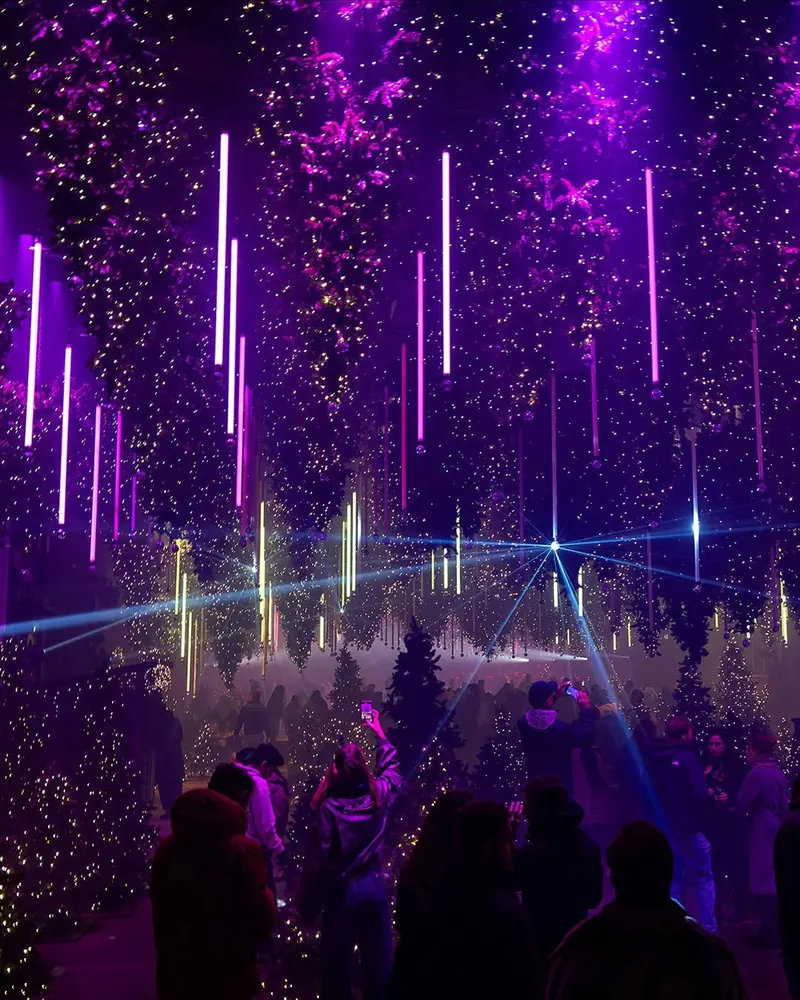

A winter light show in a city park: traditional Christmas light strings on hanging trees and around an ice rink, faded over DMX in time with the music and the colour scenes. Christmas markets, ice rinks, festivals and outdoor light trails use the same setup.
XMAS DIMMER
Use Cases

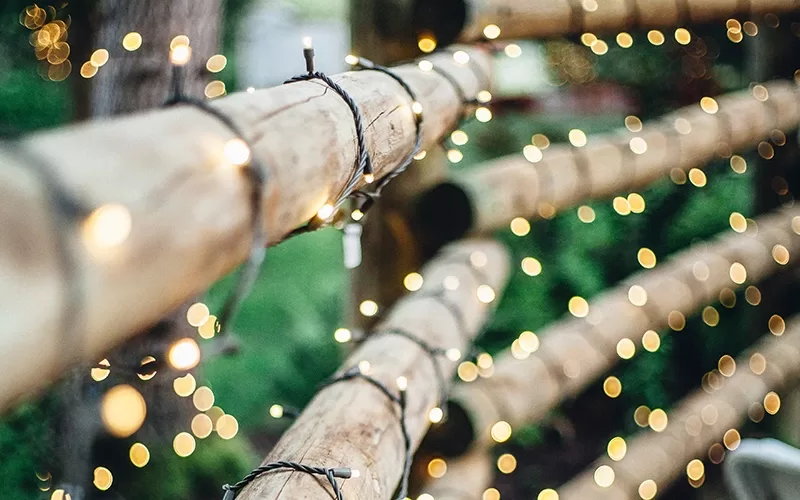

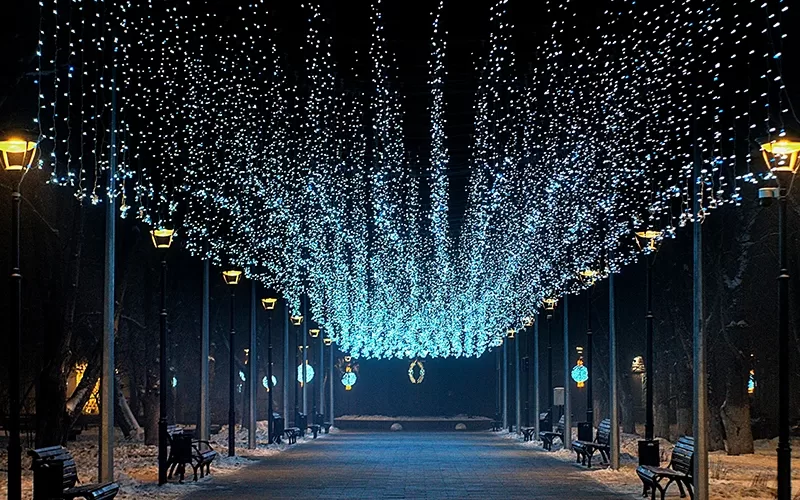

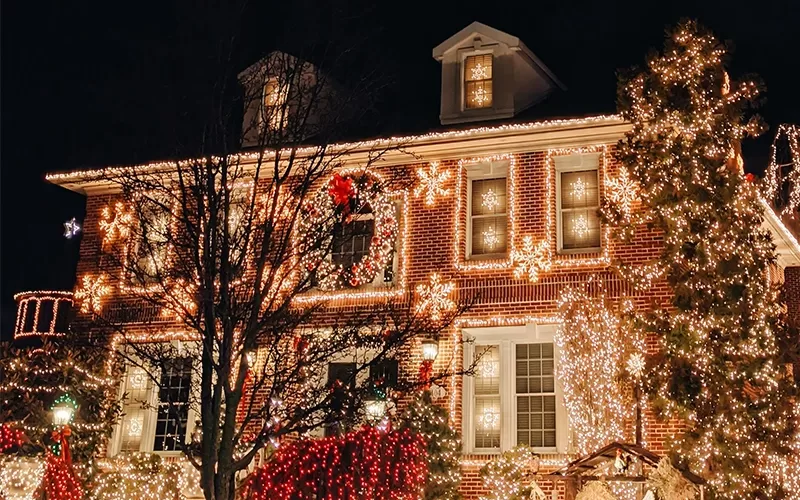

Wherever the traditional string is the right look but eight blink modes are not enough—city Christmas decorations, hotel lobbies, shopping centres, restaurant terraces, TV studio sets and ambitious private gardens.
XMAS DIMMER
Key Features
DMX-Controlled Fading
Fade, chase and cue traditional Christmas lights from any DMX console, player or software.
Read More →8 Independent Outputs
Up to 8 separate Christmas light strings, 0.5 A per output with a resettable fuse.
Read More →Simple Two-Wire Connection
Wire the string's two cables into the pluggable screw terminal of any output—no soldering required.
Read More →
Two Channels per String
Independently fade the two internal circuits found in most traditional Christmas lights for richer effects.
Read More →Isolated DMX Input
Opto-isolated, ESD-protected DMX input on a 3-pin header, with a break-out cable for XLR.
Read More →12-Way DIP Address Switch
Set the DMX start address directly on the board—no software required.
Read More →XMAS DIMMER
A Retrofit, Not a Redecoration
City centres, hotels and venues already own kilometres of traditional lighting. Upgrading the control is far cheaper than replacing every string with a pixel product.
- The original adapter offers eight fixed blink modes
- Every string runs its own pattern on its own clock
- Replacing decorations with DMX fixtures is expensive
- Fade, chase and cue the strings over DMX
- All strings follow one timeline and one set of cues
- Keep the decorations—only the control changes
XMAS DIMMER
One box.
Eight light strings.

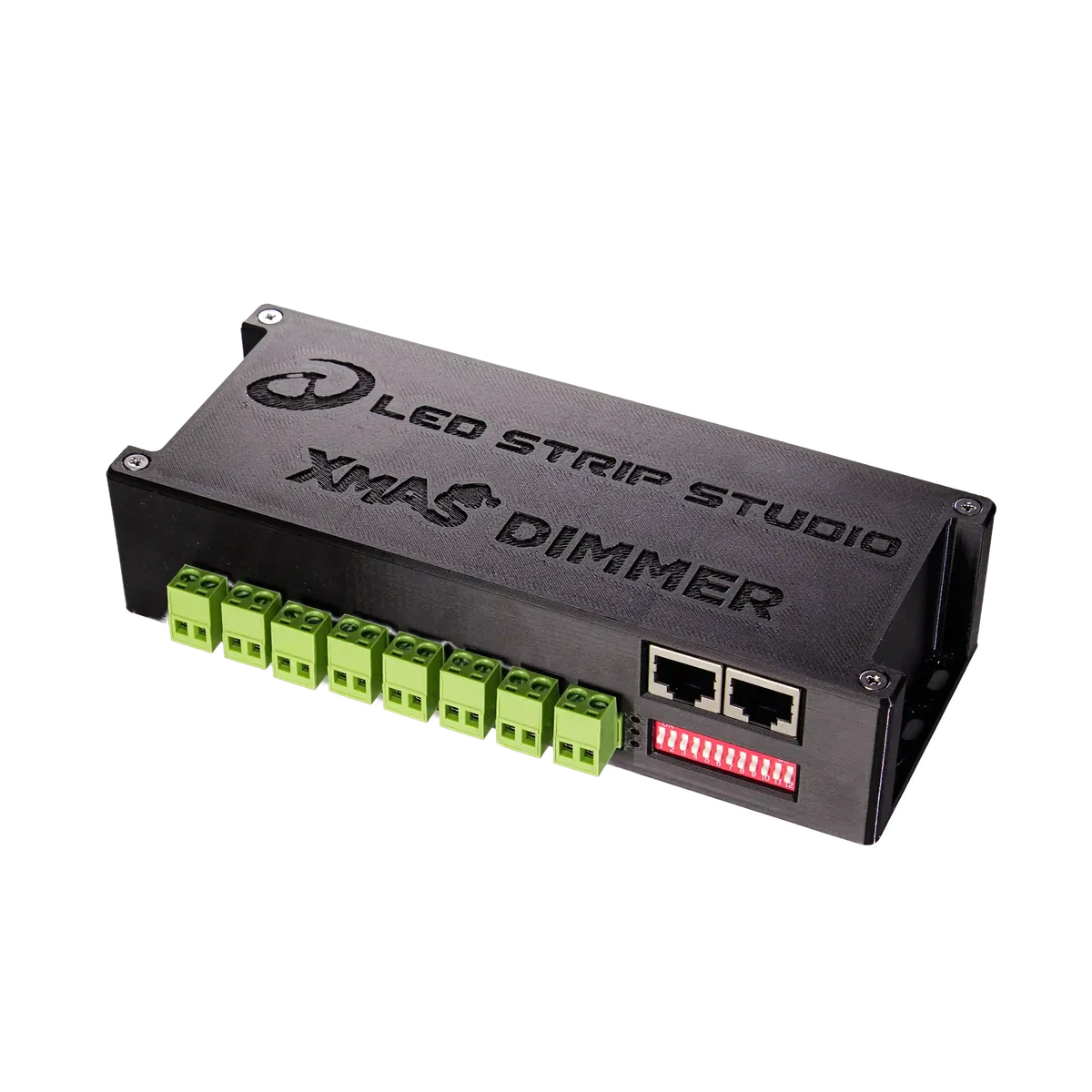

DMX controller for traditional Christmas lights
XMAS DIMMER
Xmas Dimmer
See the DMX-controlled fading in action, and how it drives a full Christmas light show.
XMAS DIMMER
DMX Dimmer for Traditional Christmas Lights
Great for Christmas light shows—fade your existing decorations over DMX.
XMAS DIMMER
FAQ
Low-voltage LED Christmas light strings (12–36 V DC) whose LEDs are wired in two anti-parallel sections—the kind that switch between odd and even sections by changing polarity. CCT LED bulbs with anti-parallel LEDs, such as Edison CCT bulbs, work too. More in Simple Two-Wire Connection | Xmas Dimmer.
Up to 8 separate Christmas light strings from a single Xmas Dimmer, using 2 DMX channels per string. Several strings can share one output as long as they stay under 0.5 A in total, but they then fade together. More in 8 Independent Outputs | Xmas Dimmer.
Yes. The board runs from an external 12–36 V DC supply connected to a 2-pole screw terminal and uses 3 W itself. The outputs carry the same voltage, so choose a supply that matches your light strings and can feed all of them.
Any DMX controller: the console you already own, a small architectural DMX player, or an LEC3 or SPI LED Controller running LED Strip Studio software.
Yes—that's the point of the product. Only the control side changes; the strings, the shapes and the familiar look stay exactly as they are. Background in Commercial Christmas Lights as a DMX Show.
Only the controller part—cut off the original blink-mode controller and wire the string's two cables into the terminal block plug of an Xmas Dimmer output. More in Simple Two-Wire Connection | Xmas Dimmer.
Through the included DMX break-out cable on the board's 3-pin DMX header. The XLR side uses the standard wiring: pin 1 GND, pin 2 DMX−, pin 3 DMX+. More in Isolated DMX Input | Xmas Dimmer.
With the DIP switch on the edge of the board: switches 1–9 add 1, 2, 4 … 256 to the DMX address, switches 10–12 are reserved. No PC, app, or software needed. More in 12-Way DIP Address Switch | Xmas Dimmer.
Yes. Continue the DMX line to the next Xmas Dimmer or DMX fixture—up to 32 devices on one DMX line under the DMX512 specification. For more, use a DMX splitter, and put a DMX terminator at the end of long cable runs. More in Isolated DMX Input | Xmas Dimmer.
No. Xmas Dimmer is a bare board without an enclosure (IP00), designed for indoor use only. Mount it in a suitable enclosure indoors; the light strings can go wherever they are rated for. Full answer in Outdoor and Harsh-Environment Hardware.
Supply 12–36 V DC, 3 W own consumption, 8 dual-polarity PWM outputs at up to 0.5 A each (resettable 0.7 A fuse), 16 DMX channels on an isolated 3-pin DMX input, 8-bit dimming at about 1000 Hz, 141 × 65 × 25 mm, 72 g. All details are in the user manual.
A 5-year limited warranty. Full answer in Hardware Warranty and Technical Support.
