Name: 3x Reactivo 2 - Art-net/Standalone pixel controller - Bundle
Brand: Your Brand Name
SKU: VP040
Price: 400 EUR
Availability: InStock

Description

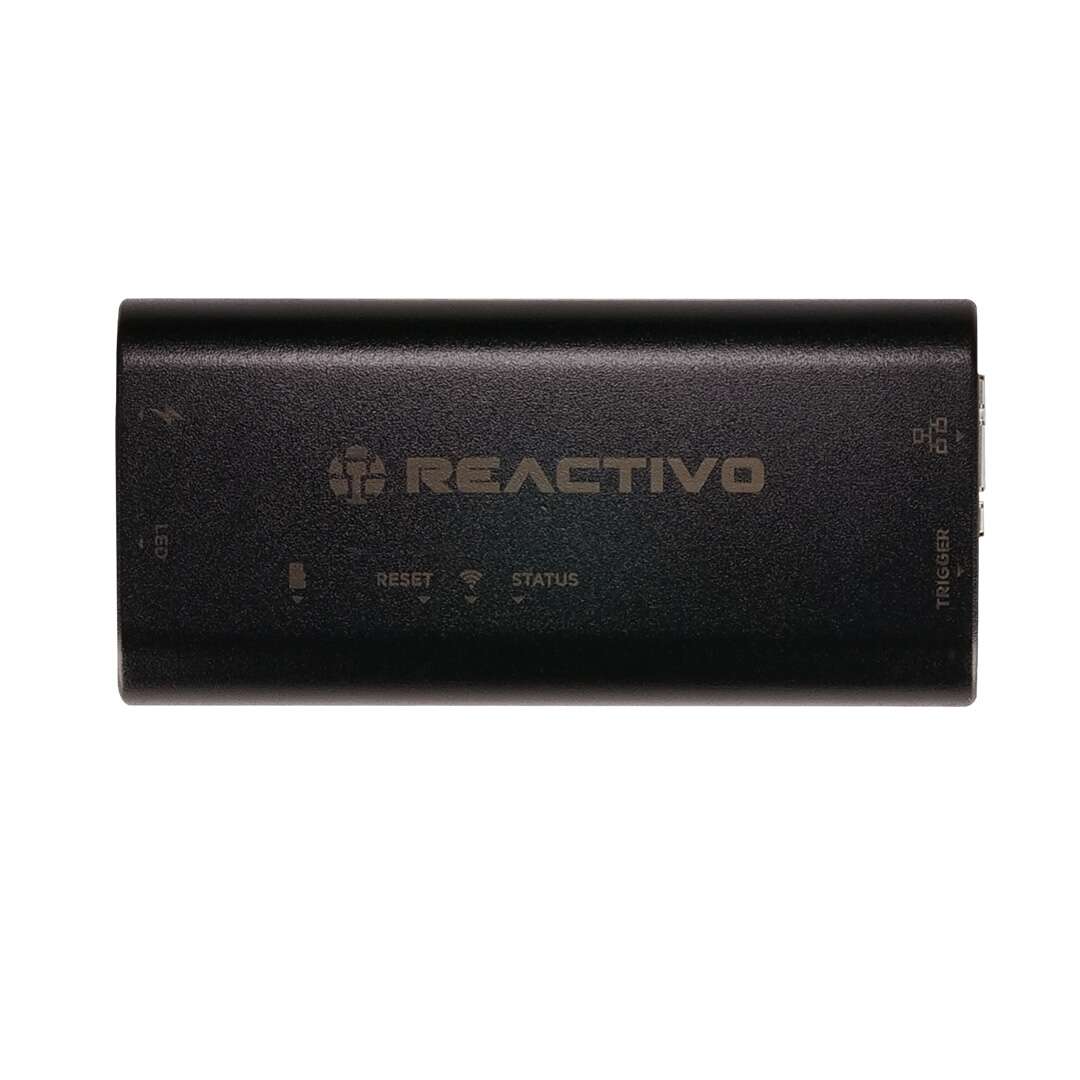

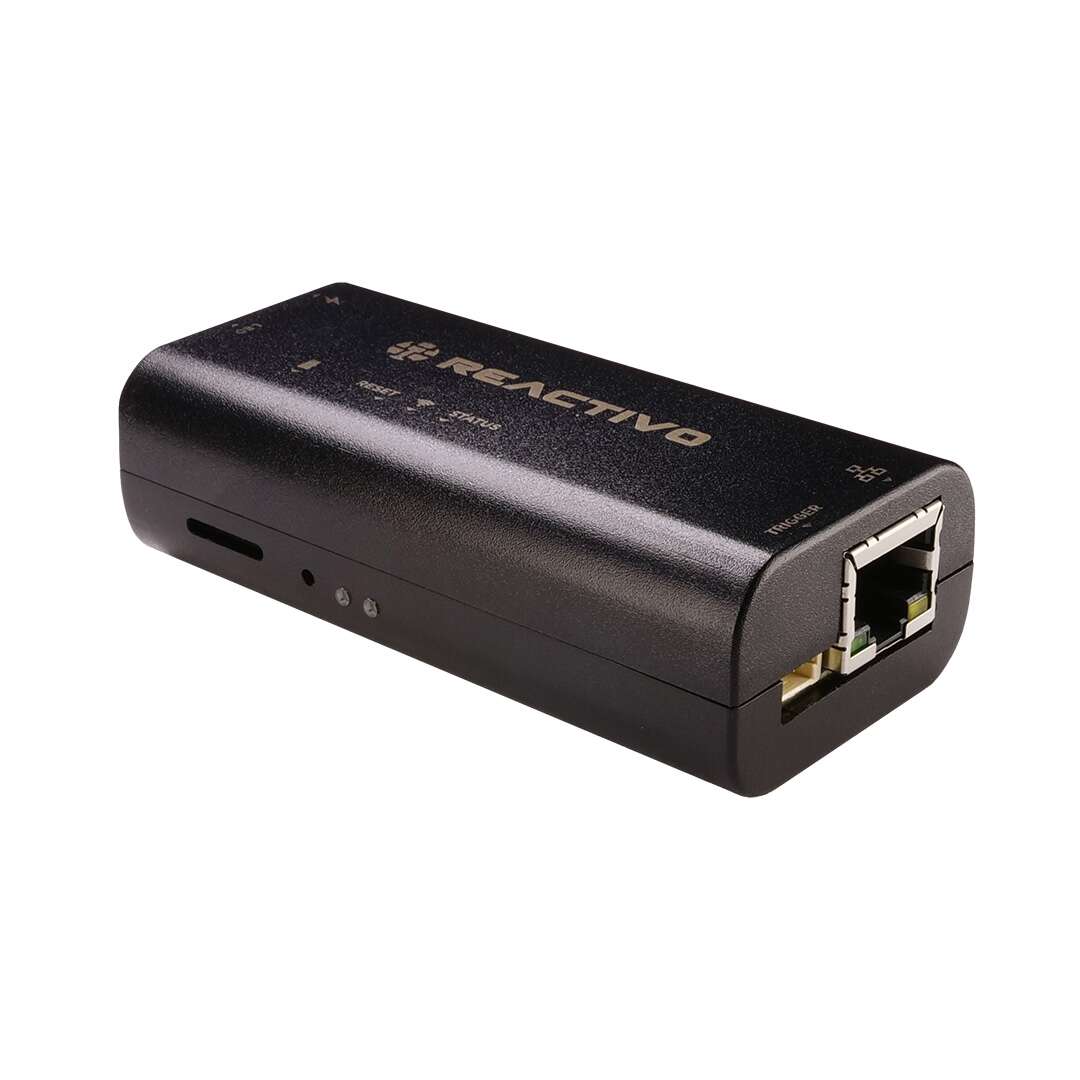

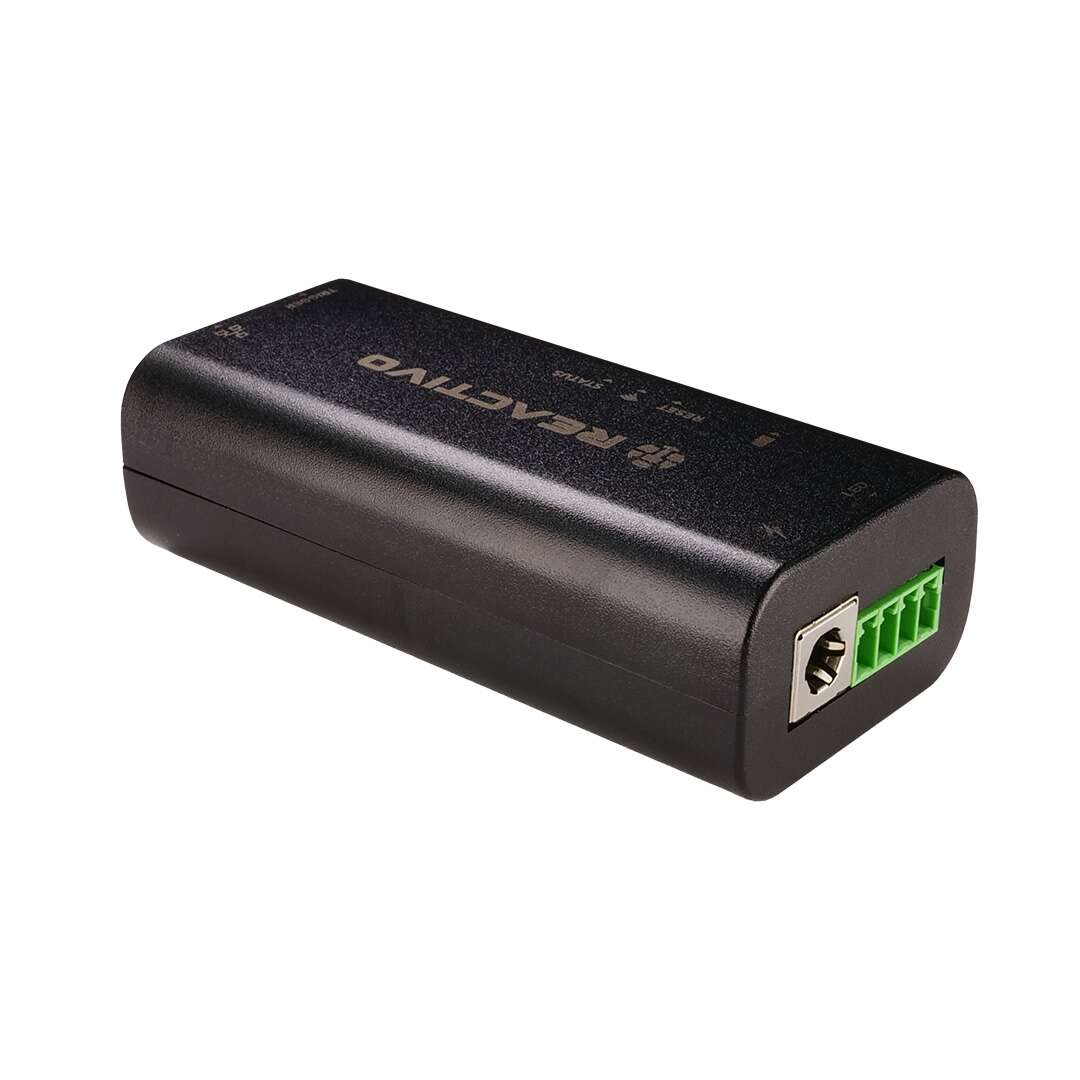

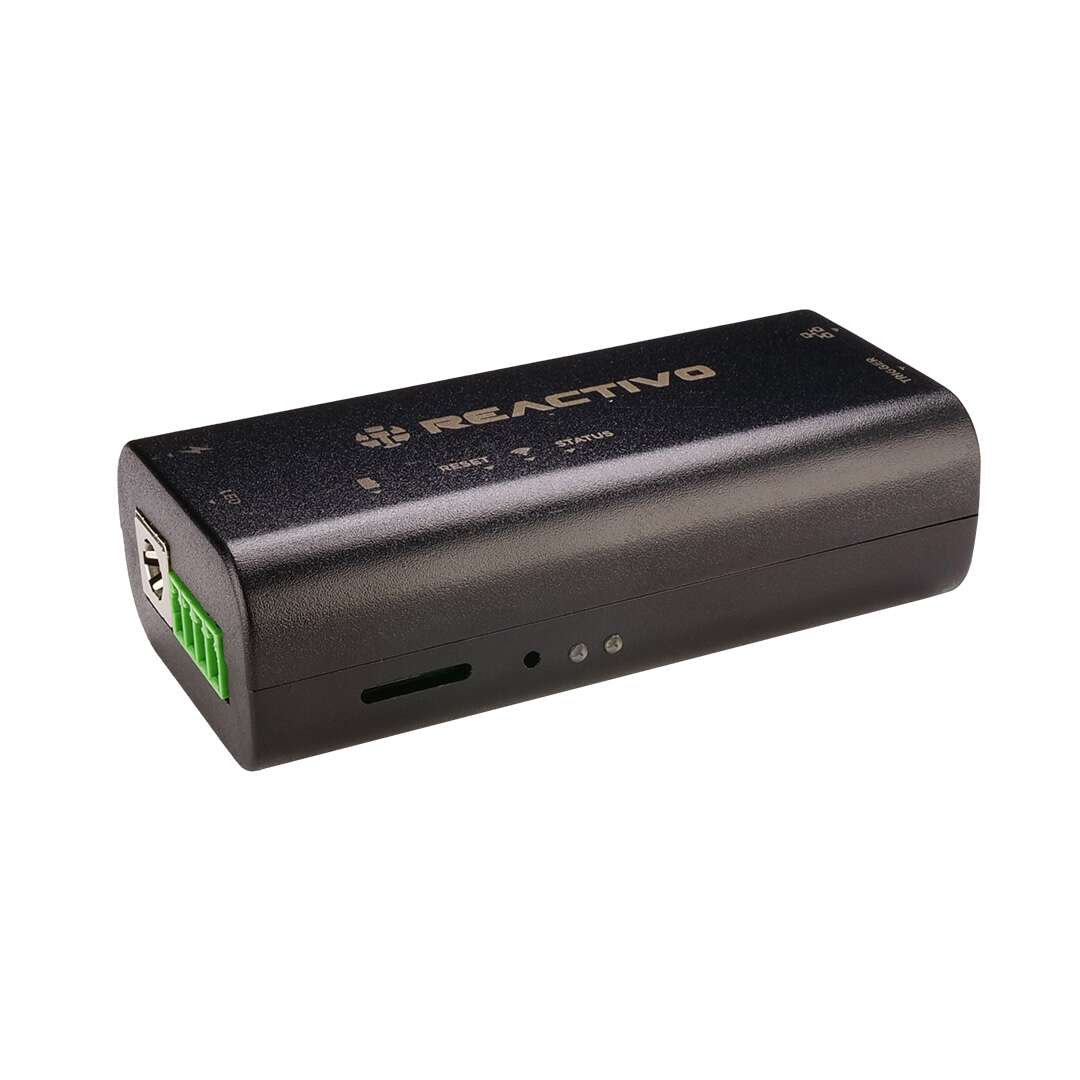

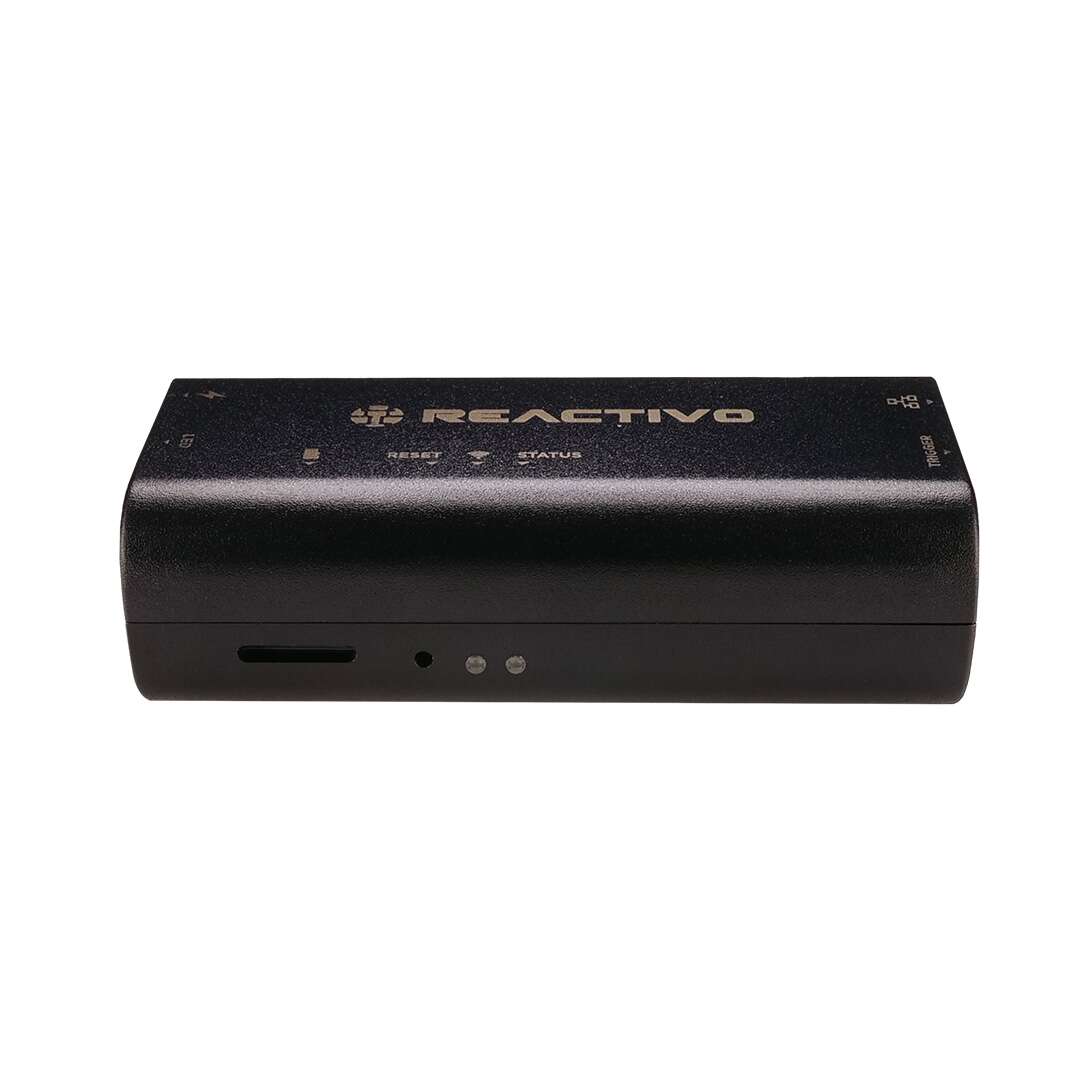

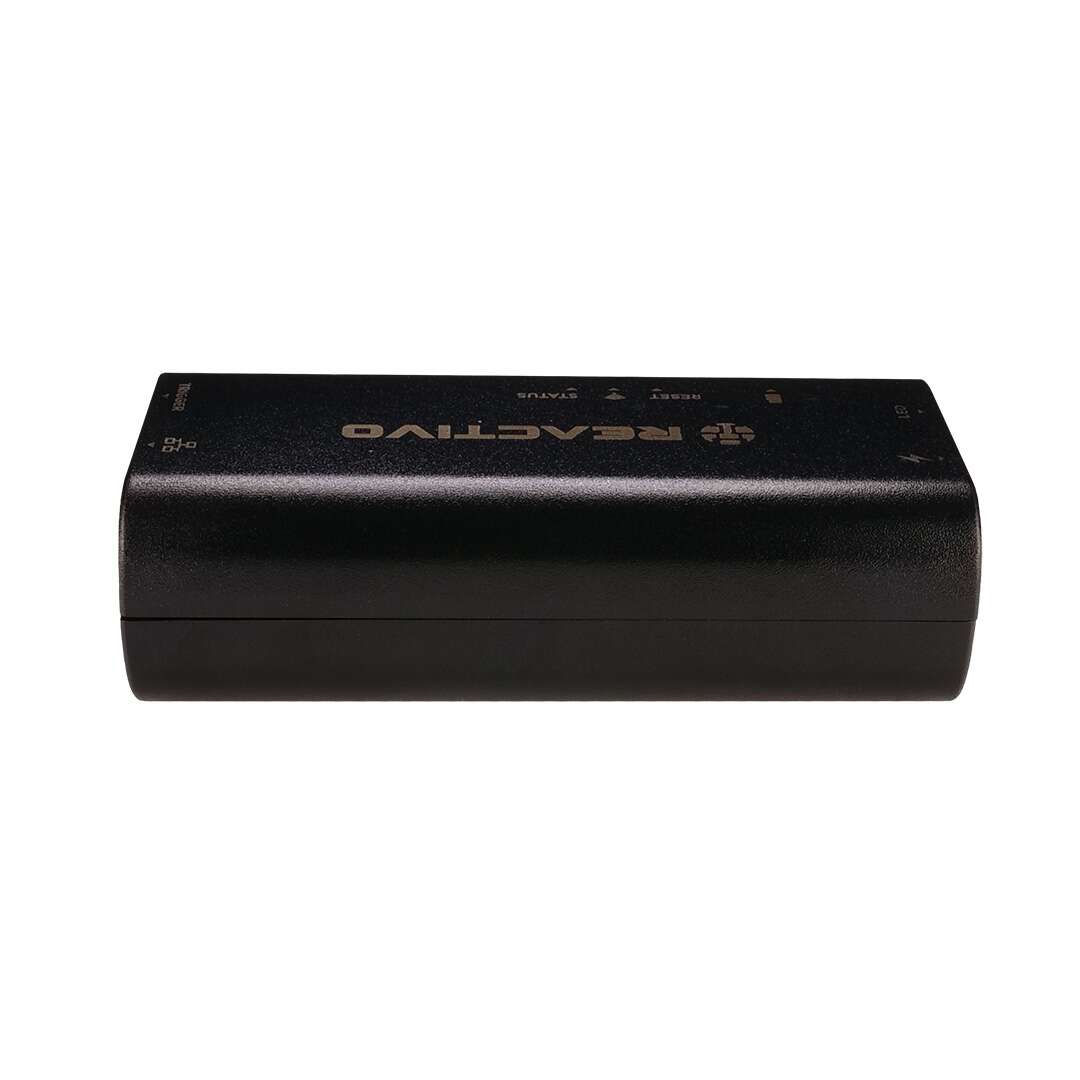

REACTIVO 2 is Art-net to SPI decoder that allows you to control up to 1024 RGB pixels.

Package versions:

OEM – just the pure Reactivo 2 controller

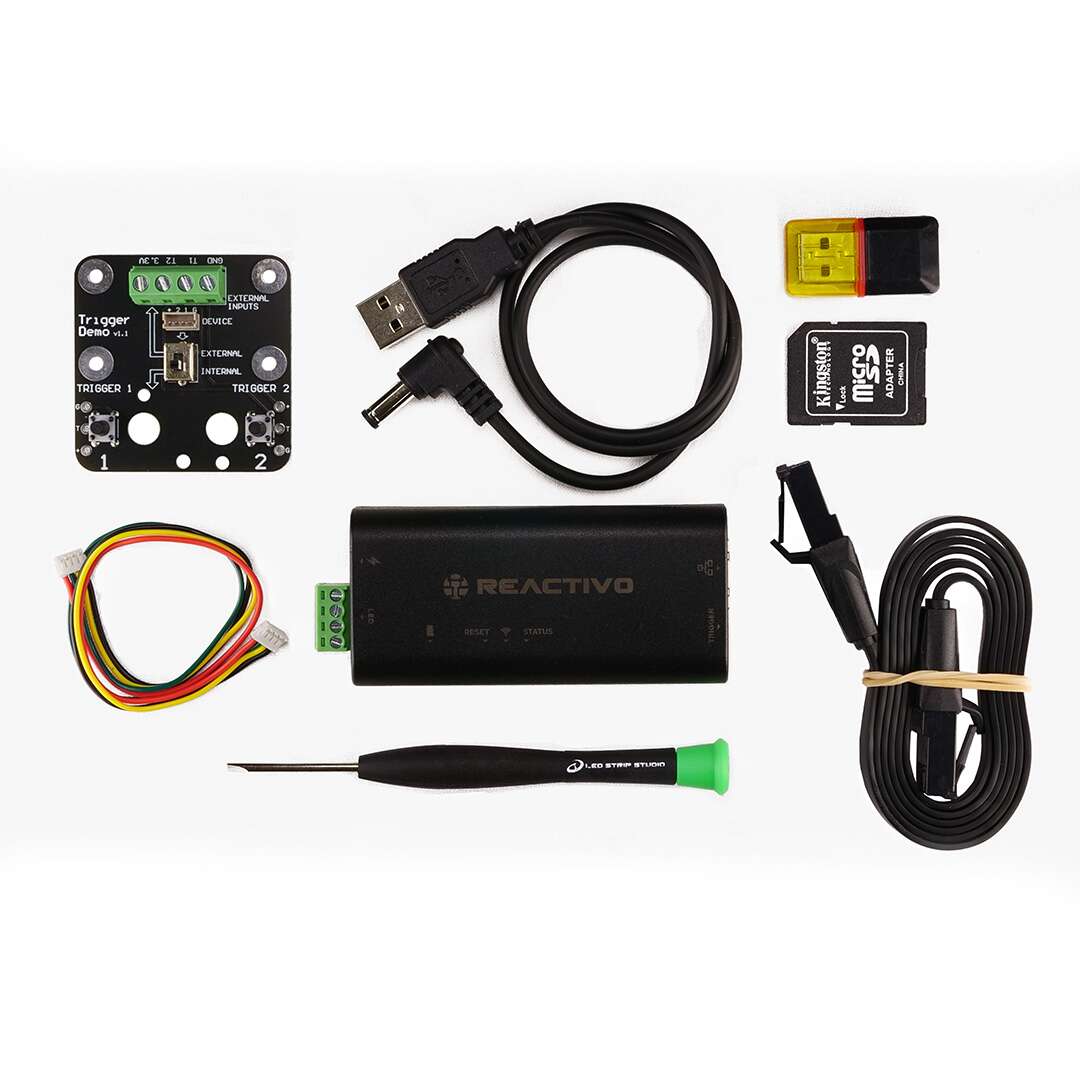

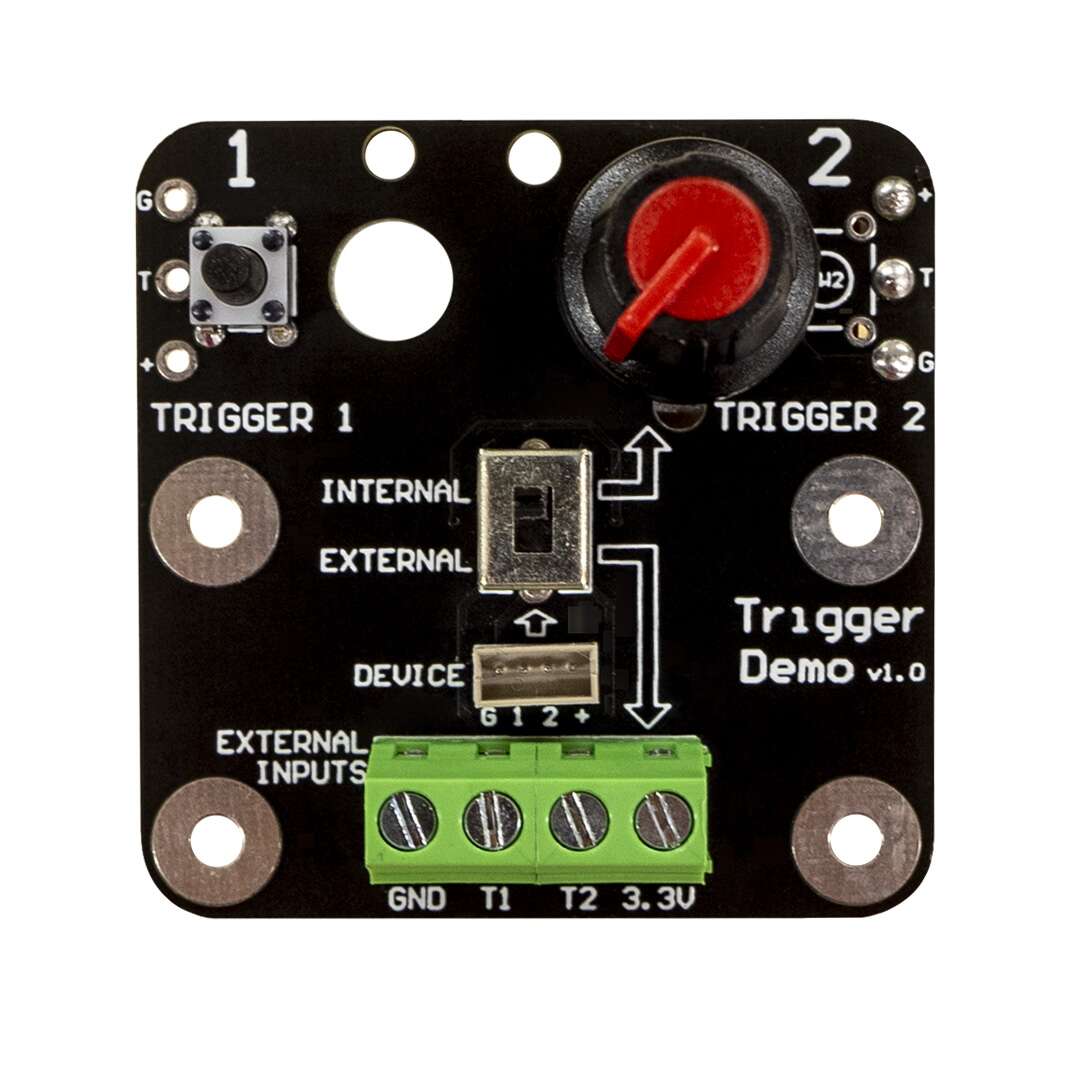

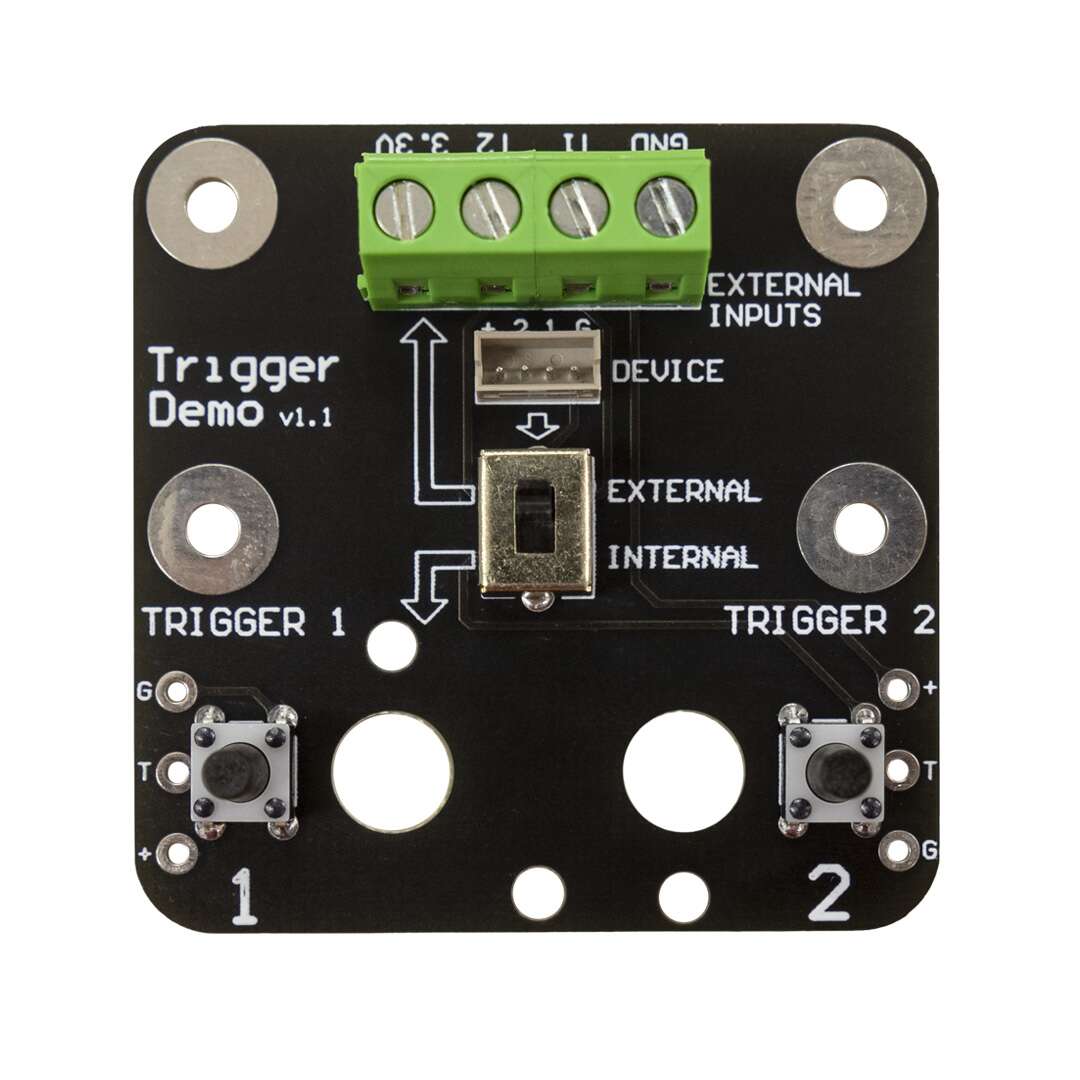

Full-kit – Reactivo 2 controller, sensor board, micro SD card with reader, USB power cable, Ethernet cable

You can use external sensors as triggers to play pre-programmed animations stored on an SD card.

Comes with dedicated software for screen grabbing.

Playlist available in the iOS and Android app for standalone projects. All important settings can be done through your mobile, as well as playing animations.

Synchronization of multiple devices with Master/Slave mode. One device can send out commands to multiple other controllers.

Great connectivity with either Ethernet or Wi-fi. You can choose super reliable cable connection or use Wi-fi for moving objects.

With weight of only 44g it is one of the smallest Art-net to SPI converter in the market.
Art-Net is basically DMX over Ethernet. It’s a free Ethernet protocol which enables control of DMX devices over Ethernet cables.

Given it’s size it is very practical device that can be placed anywhere.

Device synchronization allows to control multiple controllers with single unit.

Additional information

Weight	200 g
Dimensions	85 × 40 × 25 mm
SPI LED Outputs	1
Maximum of LEDs per Output	1024
Required power	1W
MAX. Total Pass Thru Current	7A

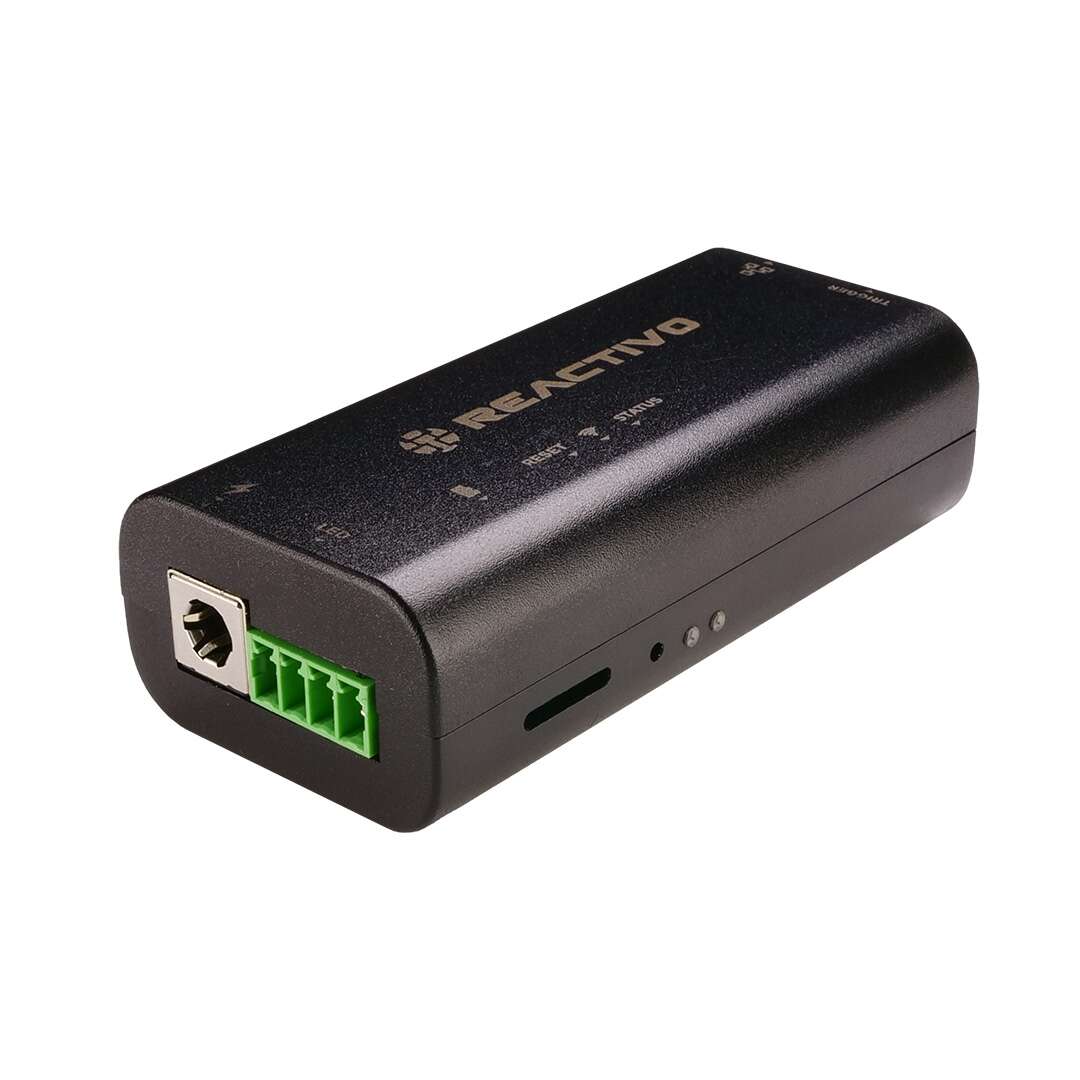

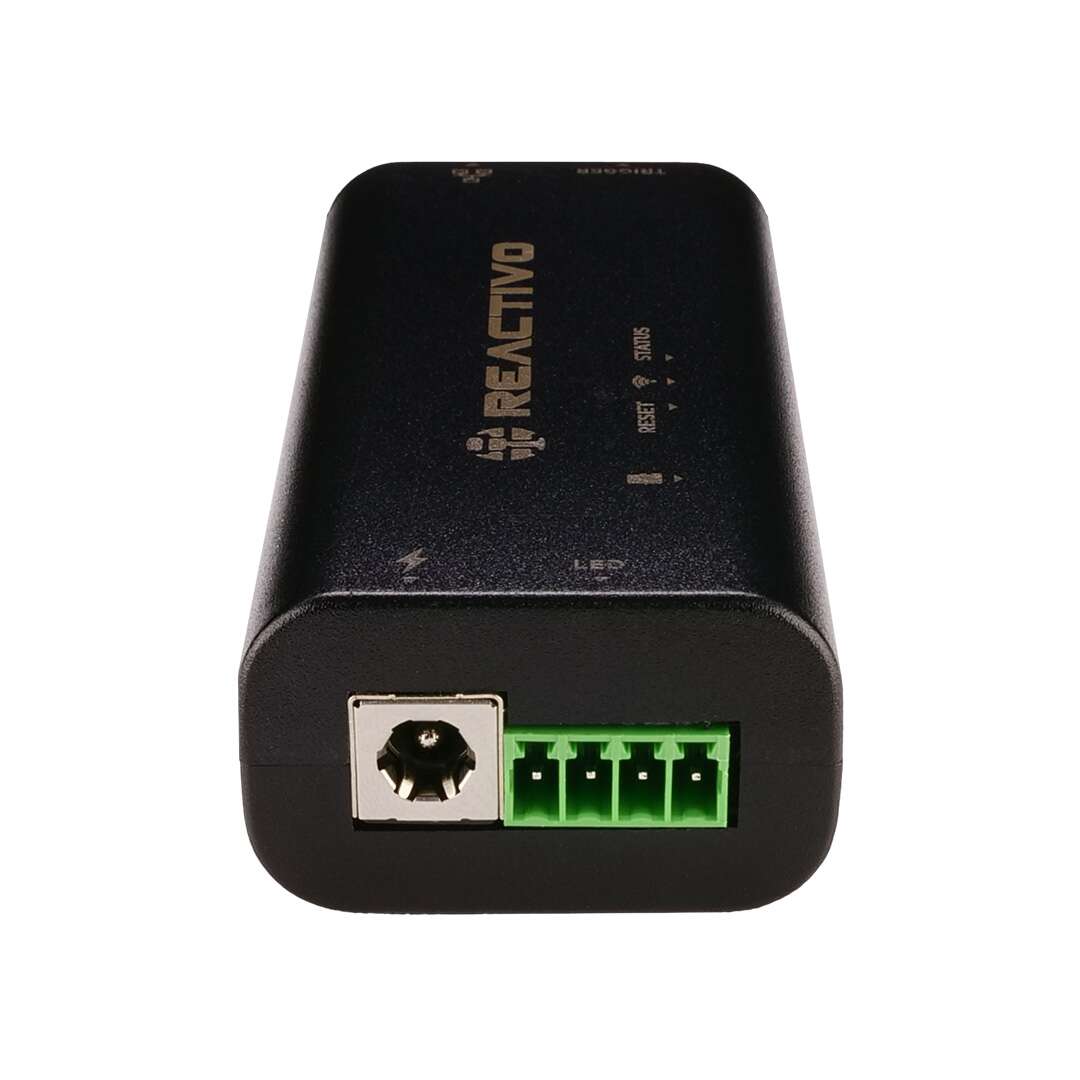

Power connector	DC jack 5.5mm/2.1mm
SPI OUT connector	pluggable terminal block with 3.5mm contact spacing e.g. 15EDGRC-3.5-04P
Trigger inputs:	2x analog trigger input 0-3.3V with internal 12k pull-ups
Trigger inputs connector	4pin pitch 1.5mm JST ZH compatible

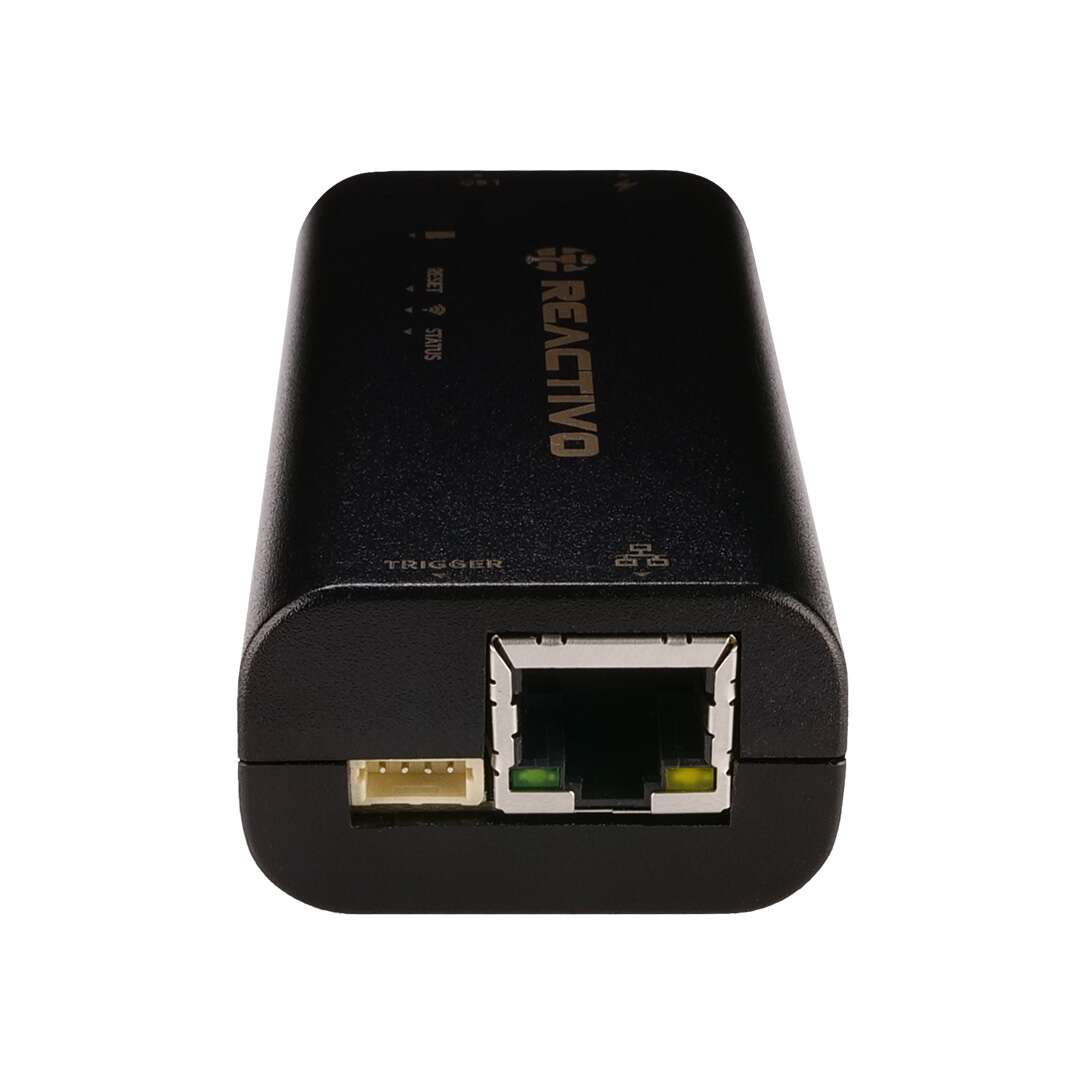

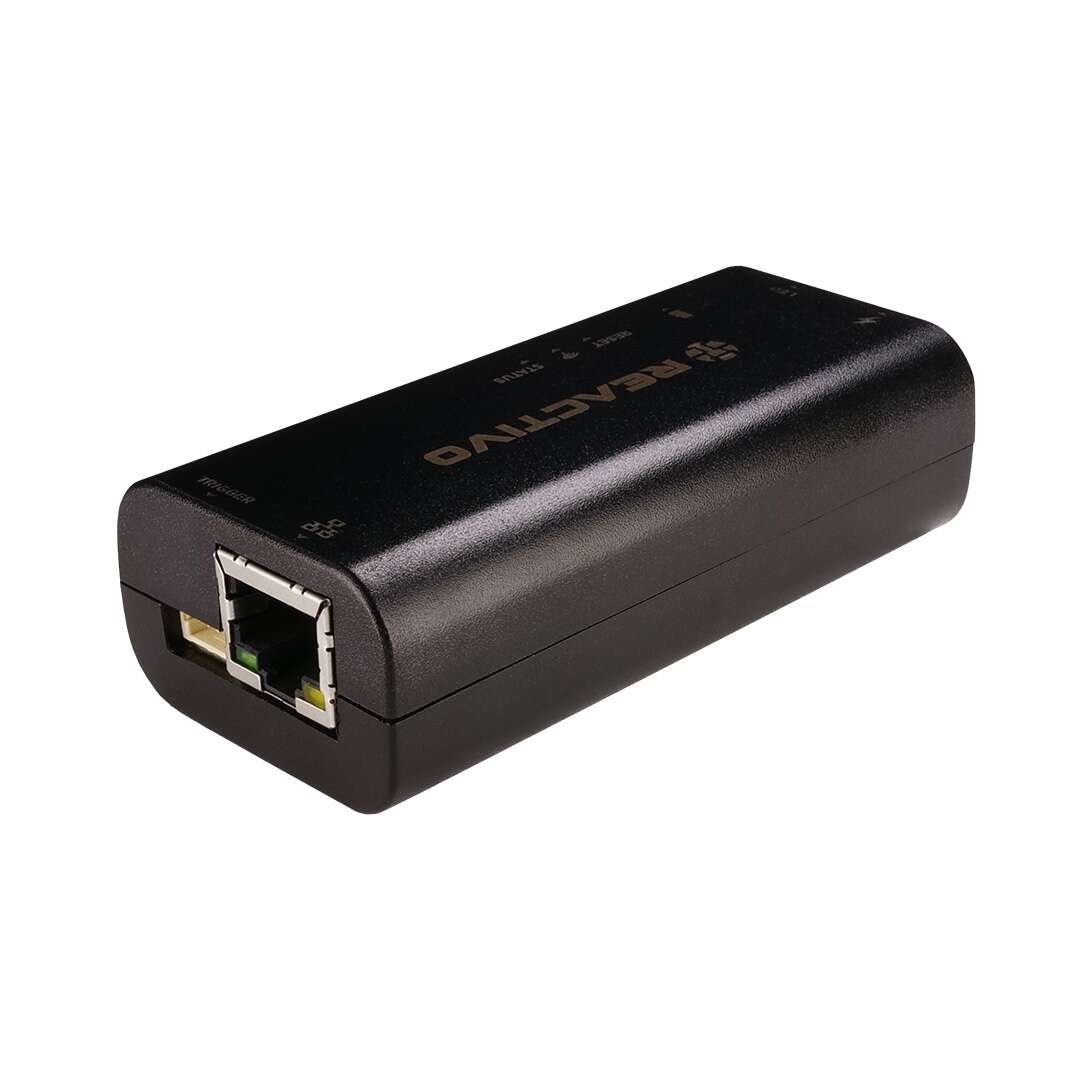

Wired Ethernet	RJ-45 connector, 10/100 Mbps, Auto-MDIX
Wireless Ethernet	2.4Ghz Wi-Fi 802.11 b/g/n
SD Card	Micro SD Card (FAT32, up to 32GB)
ads_priority	yes
Package	OEM, Full-kit
