LED Demo KIT 3
€ 560.00 – € 960.00 excl. VAT
Advanced LED Demo KIT for beginners in LED pixel controllers. You can try and learn all about LED Strip Studio software 3 and Pixel LED controller.

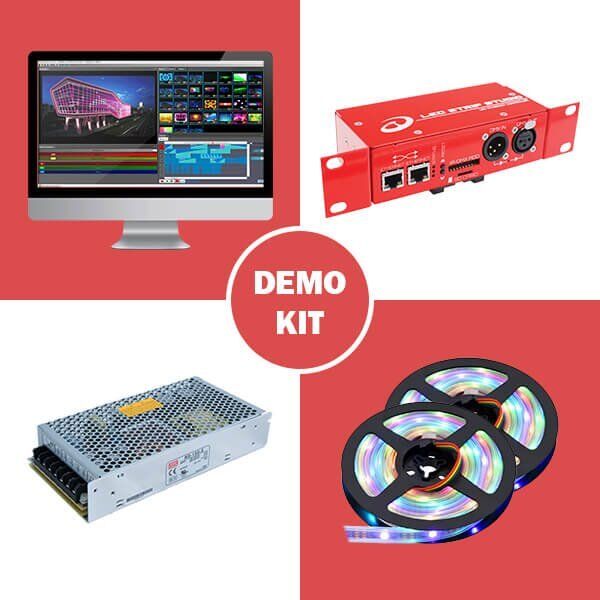

Demo KIT content
- LED Ethernet Controller 3
- LED Strip Studio software license + prepared workspace with scenes and proper mapping
- 2 x 5 meter of PRO 60/m LED pixel strip
- Prepared cables & wires
- SD-card + adapter
- Power supply
Also working in stand-alone mode, with 3rd party Art-Net software or hardware, lighting consoles. Advanced web configuration with a quick status bar accessible through a web browser is available.
Controls up to 4096 Digital RGB LEDs or 3072 RGBW LEDs, which are 24 full Art-Net universes. Available in 3 different RGB pixel version 4096/2048/1024, which can be upgraded on a higher number of pixels (up to 4096 RGB pixels).
Description
There are many standard features which you already have known from earlier versions of LEC 3 controller. But we like to underline the most interesting features:
- Automatic interpolation
- Active support LSS software and 3rd party Artnet software and hardware
- Web browser interface – configure and test your LEC3 through your mobile device or computer
- DMX and Ethernet Daisy chaining
- Autoplay mode with animation playlist stored on a Micro-SD card
- Easily attachable to DIN profile
- Different pixel-number versions with an optional upgrade (manually or through software on one click)
Additional information
| Weight | 469 g |
|---|---|
| Dimensions | 142 × 69 × 44 mm |
| Maximum of LEDs | 4096 |
| SPI LED Outputs | 4 |
| Maximum of LEDs per Output | 1024 |
| Required power | 5-24V/ 0.3A (PCB only, wihout the LED strips / LED pixels) |
| Maximal current | 20A |
| Power connector | pluggable terminal block with 5 mm contact spacing e.g. SH04-5-GY |
| SPI OUT connector | pluggable terminal block with 5 mm contact spacing e.g. SH04-5-GY |
| DMX in port connector type | XLR 3-pin connector (optional 5 pin) |
| DMX out port connector type | XLR 3-pin connector (optional 5 pin) |
| Ethernet | 2x RJ-45 connector, internal switch, 100 Mbit/sec |
| SD Card | Micro SD Card (FAT32, up to 32GB) |
| Documentation | https://www.ledstripstudio.com/download/tech-specs/LEC_3_tech_specs.pdf |
| Size | 1024-pixels (6 Art-net universes), 2048-pixels (12 Art-net universes), 4096-pixels (24 Art-net universes) |
