Powered Bulb Dimmer

Special 64 channel SPI dimmer with built-in power supply designed for dimming 12-24V constant voltage (CV) fixtures such as dimmable LED bulbs or short LED strips.

450.00 excl. VAT

Description

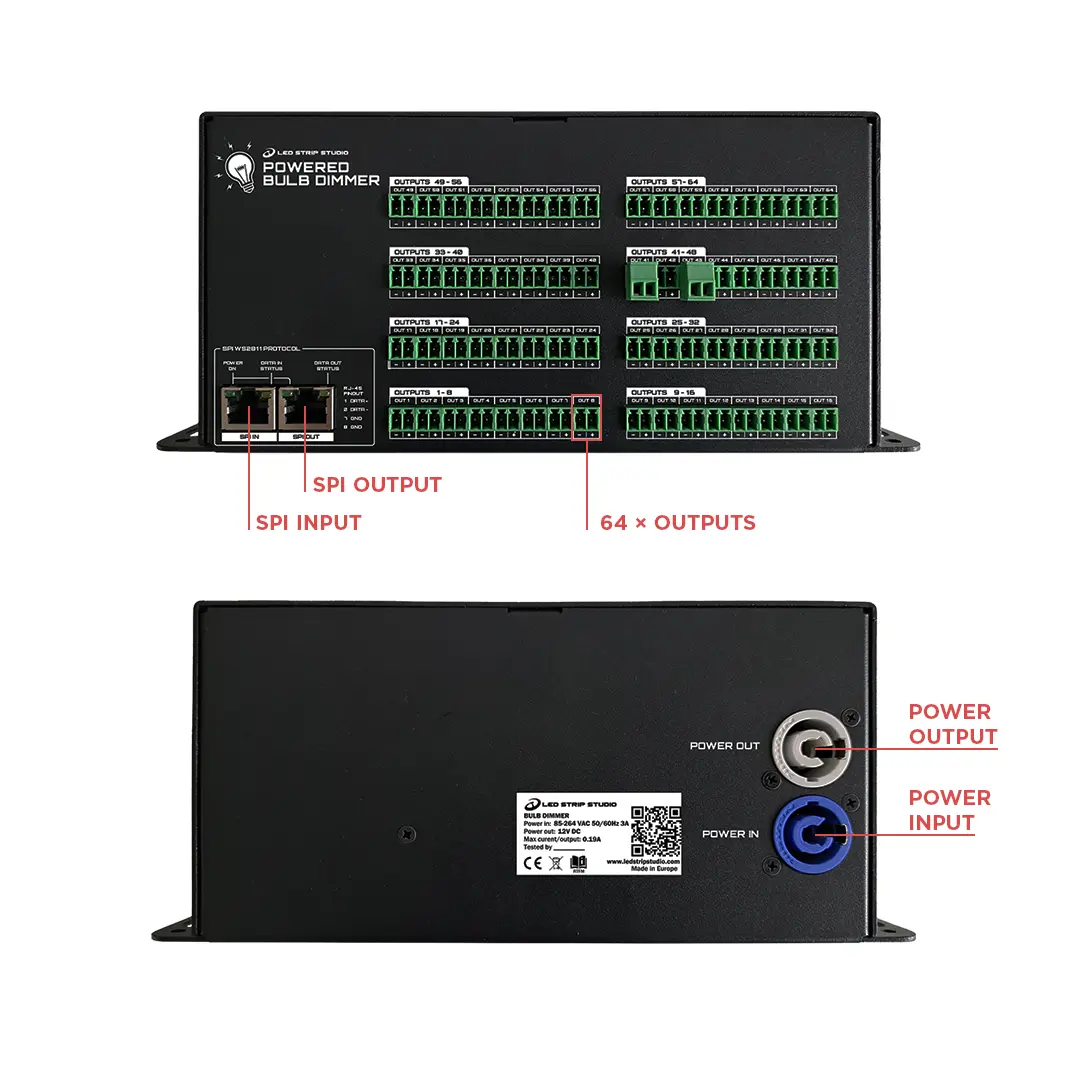

It has 64 independent open-drain outputs ideal for:

-single color LED bulb or LED strips (64 independent sections)
-CCT LED strips
-RGB LED strips
-RGBW LED strips

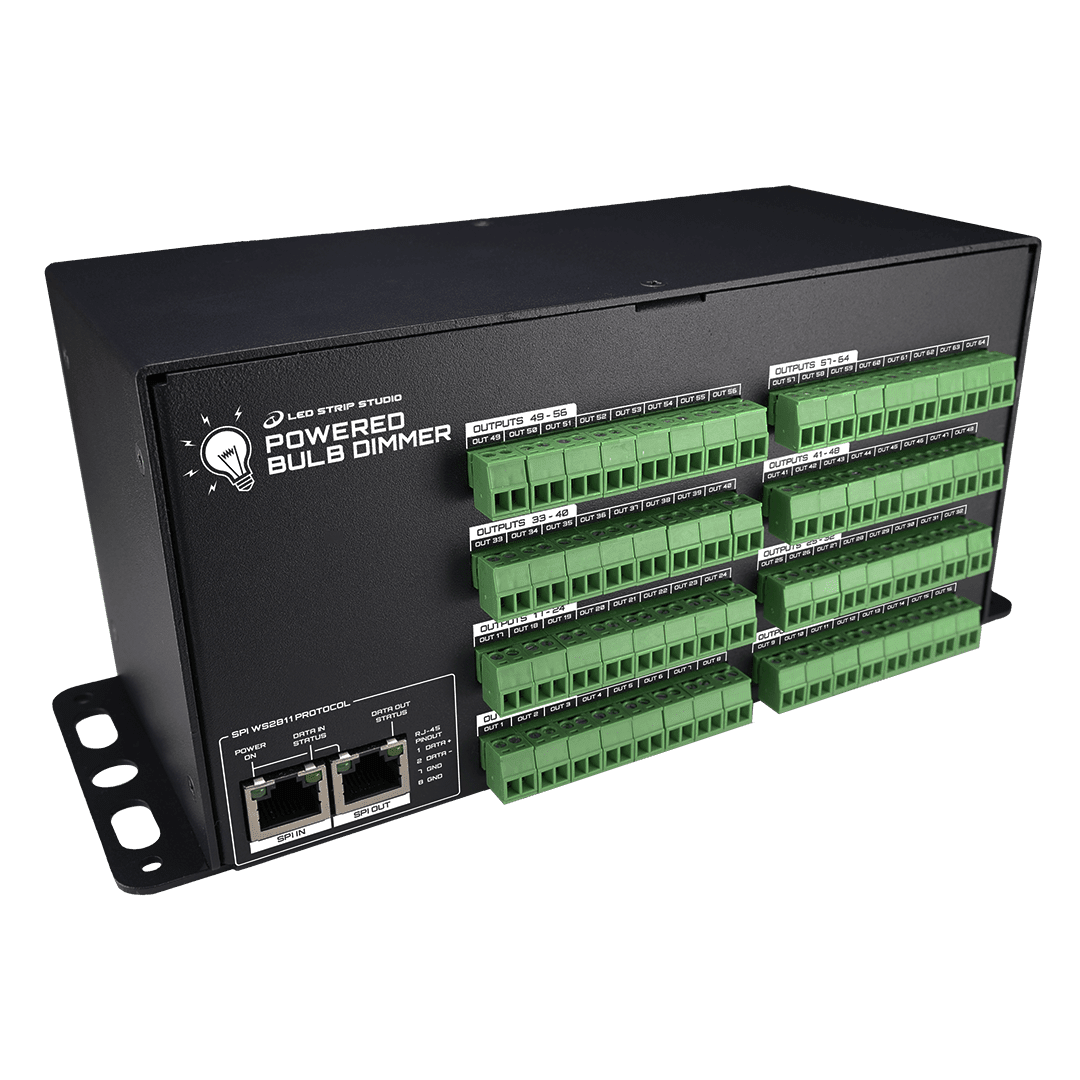

POWERED BULB DIMMER is power supply with SPI dimmer in aluminum enclosure providing “out-of-the-box” solution for entertainment industry.

With its high PWM frequency it is flicker-free on most video cameras.

Additional information

Weight 1800 g

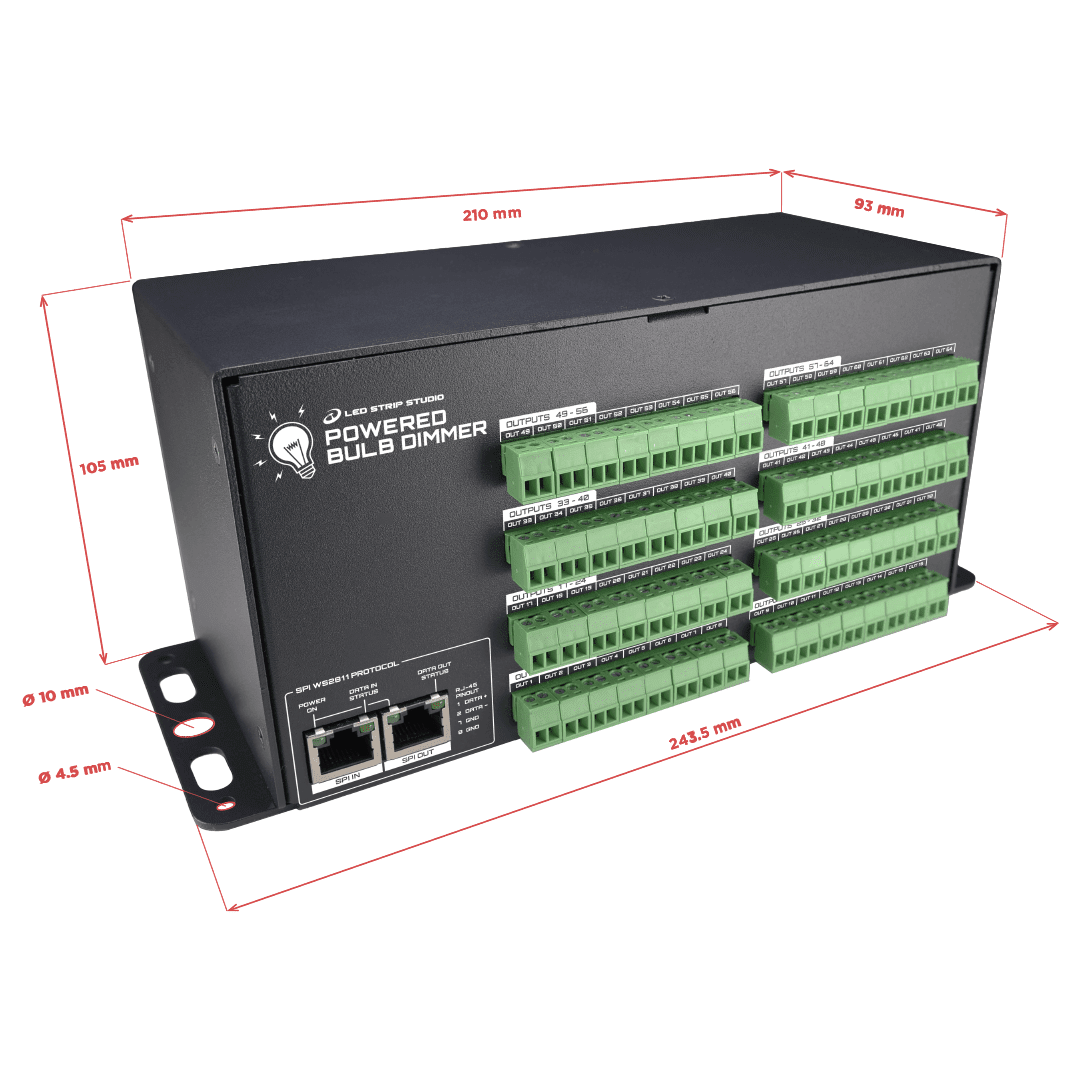

Dimensions 300 × 200 × 100 mm
Data sheet

https://ledstripstudio.com/download/tech-specs/powered-bulb-dimmer_datasheet.pdf

Operating voltage

85-264 VAC 50/60Hz

Self Power Consumption

2W

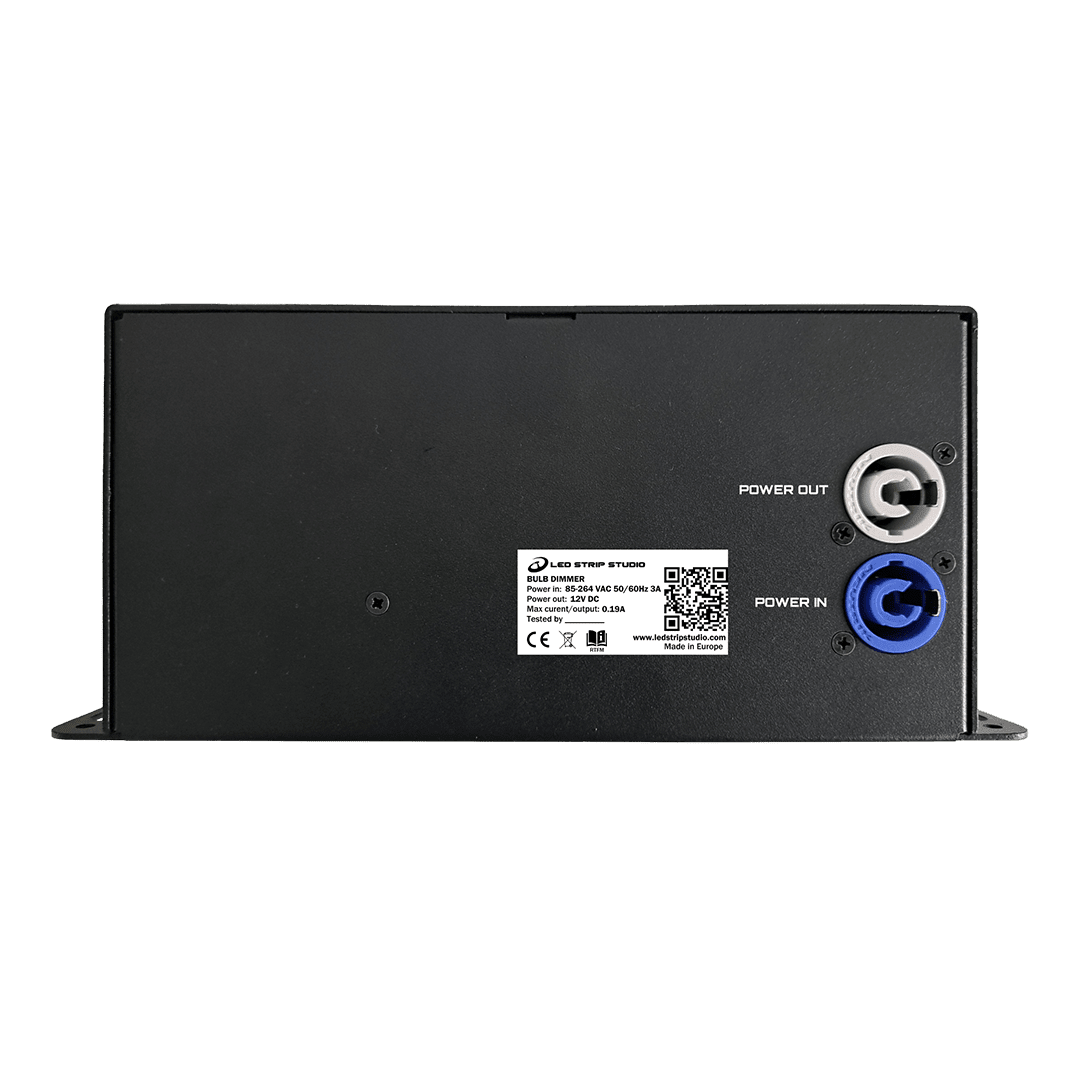

Power IN Connector

PowerCON connector 230V/20A

Output Channels total

64

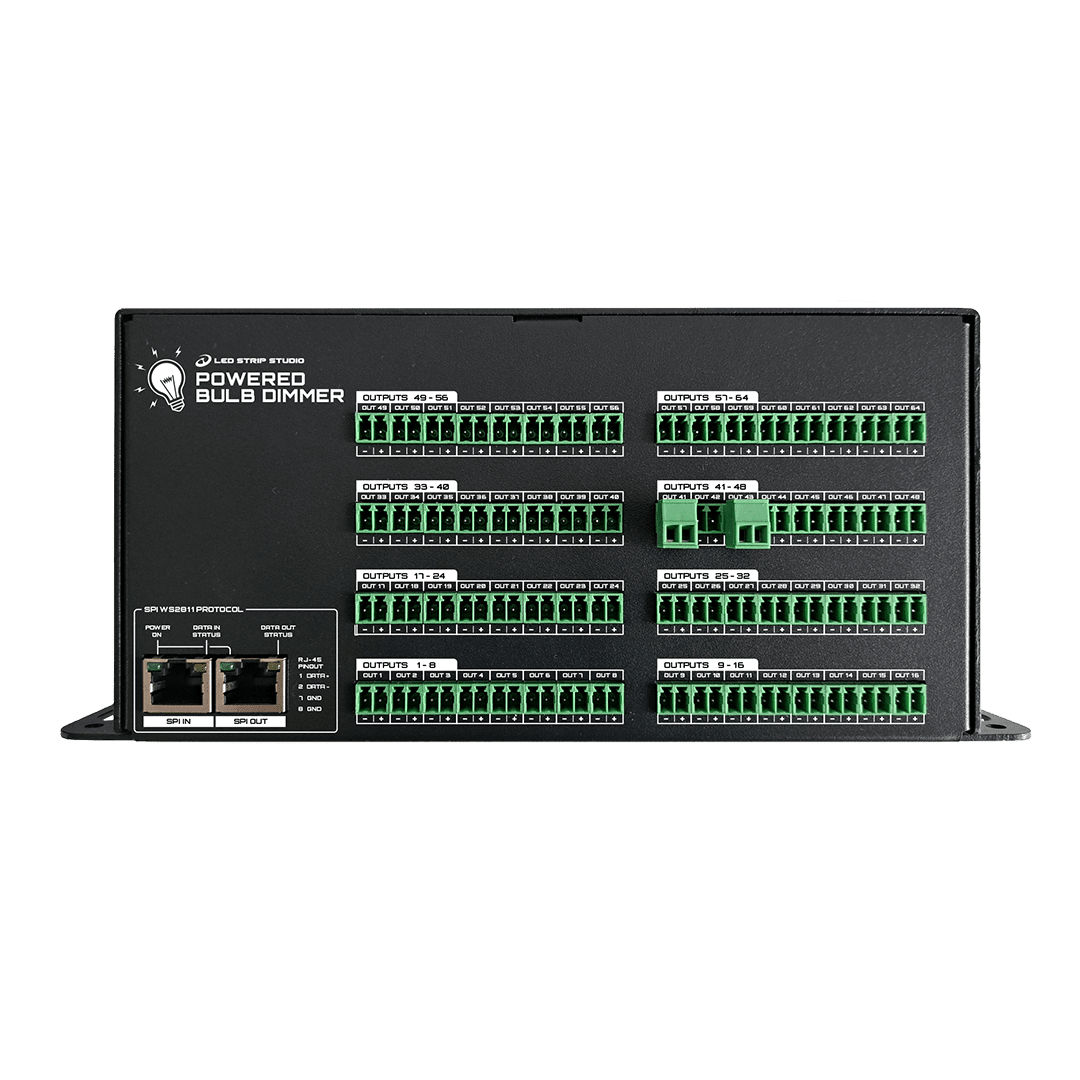

OUTPUT port (connectors) count

64

OUTPUT port connector type

2 pole pluggable terminal block pitch 3,5mm for wire 0,5…1,5mm2

OUTPUT port electrical type

Open Drain, Max 500mA / Channel, 12V version Max 12, 2A Total / 24V version Max 6, 1A Total

OUTPUT port protection

Yes, self resettable fuse

Output connector pins

A,B (Pin1,Pin2)

SPI IN/OUT port connector type

RJ-45

SPI IN/OUT port type

Differential 800kHz SPI
(WS2811, WS2812B, SK6812, TM1809….)

Grayscale

8bit (256 levels)

PWM Frequency

2 kHz

Works with controller

Any WS2811 controller with differential SPI output. e.g. SPI MATRIX, LEC3

Operating air temperature

-10°C to 45°C

Storage air temperature

-30°C to 60°C

Ingress Protection

IP30

Enclosure

Aluminum

Mouting options

Side tabs with holes for screws, cable ties, clamps, safety wire
