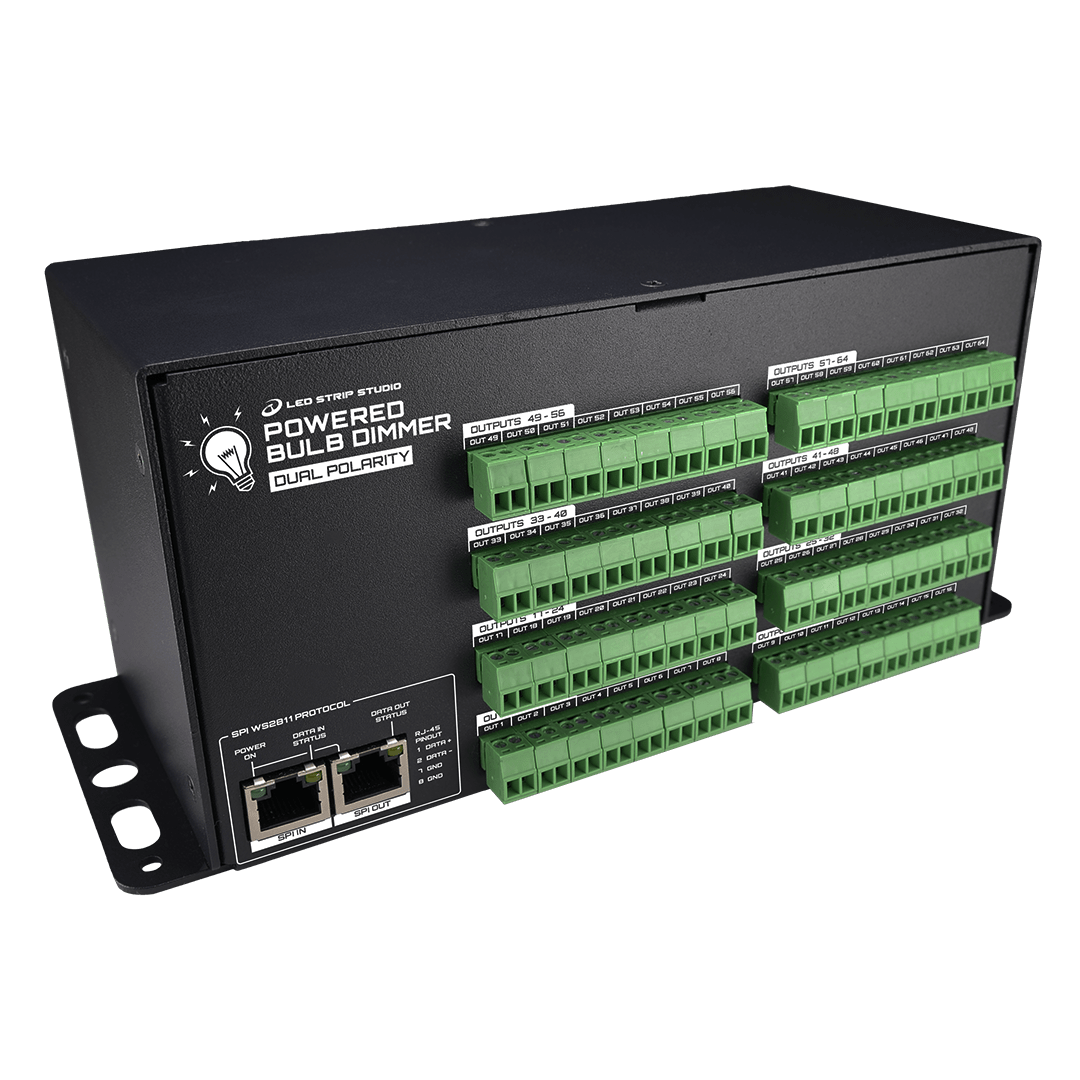

Powered Bulb Dimmer – Dual Polarity
€550.00 excl. VAT
Special 64 channel dual polarity SPI dimmer with built-in power supply designed for dimming 31-33V dual polarity constant voltage (CV) fixtures with anti parallel LED diode connection
Description

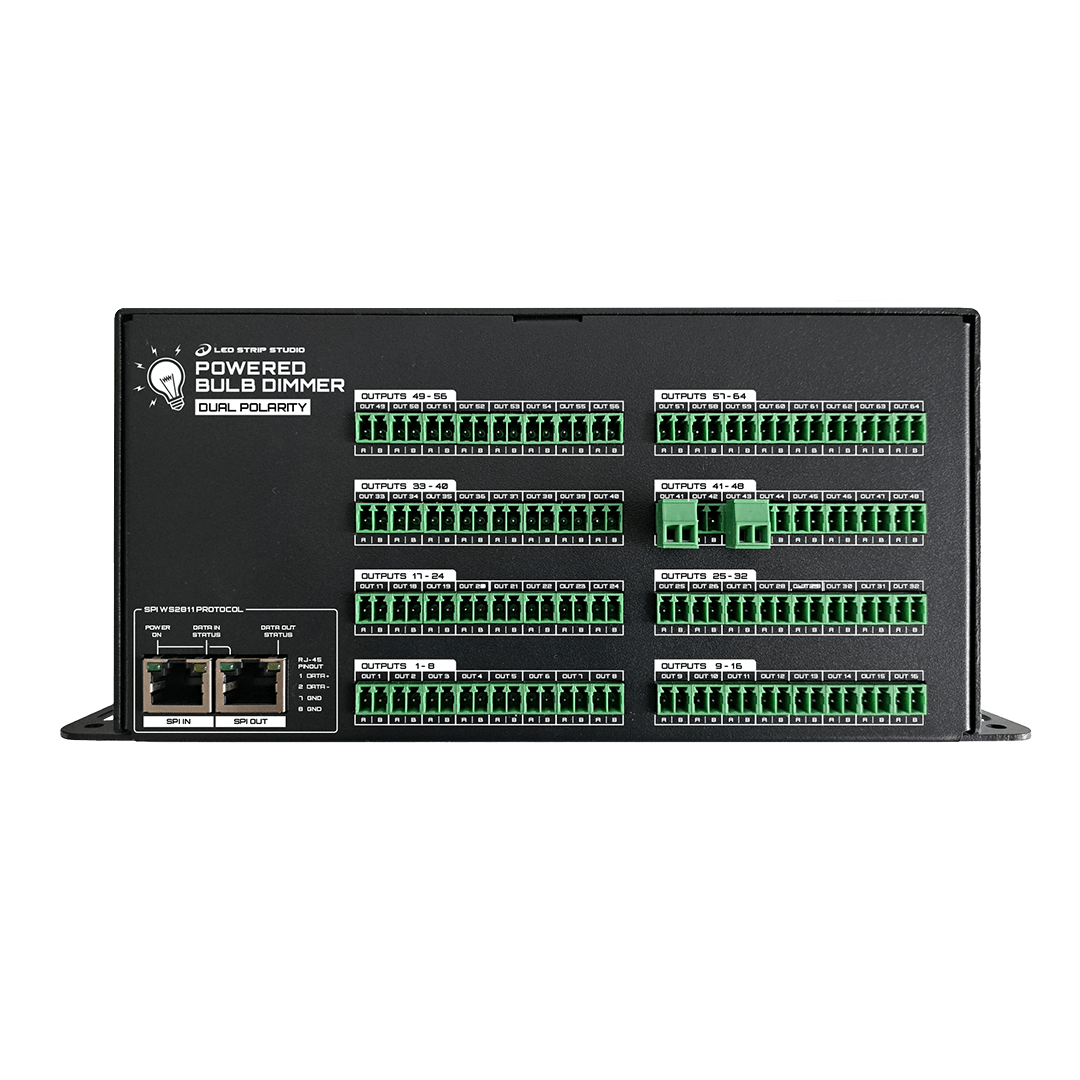

It has 64 independent full H bridge outputs. This is ideal for LED fixtures like:
-Xmas lights with anti parallel LED diode connection (odd and even sections controlled)

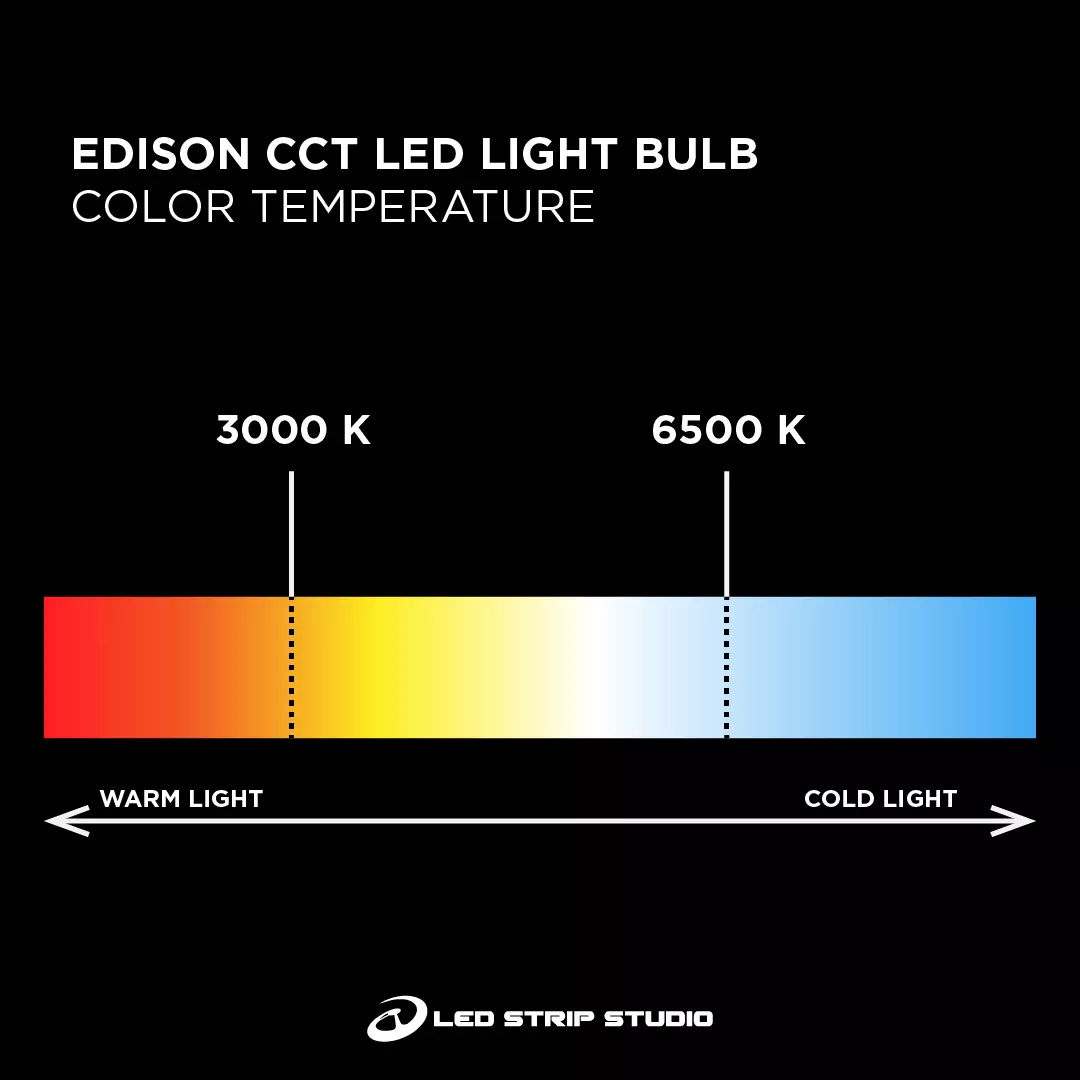

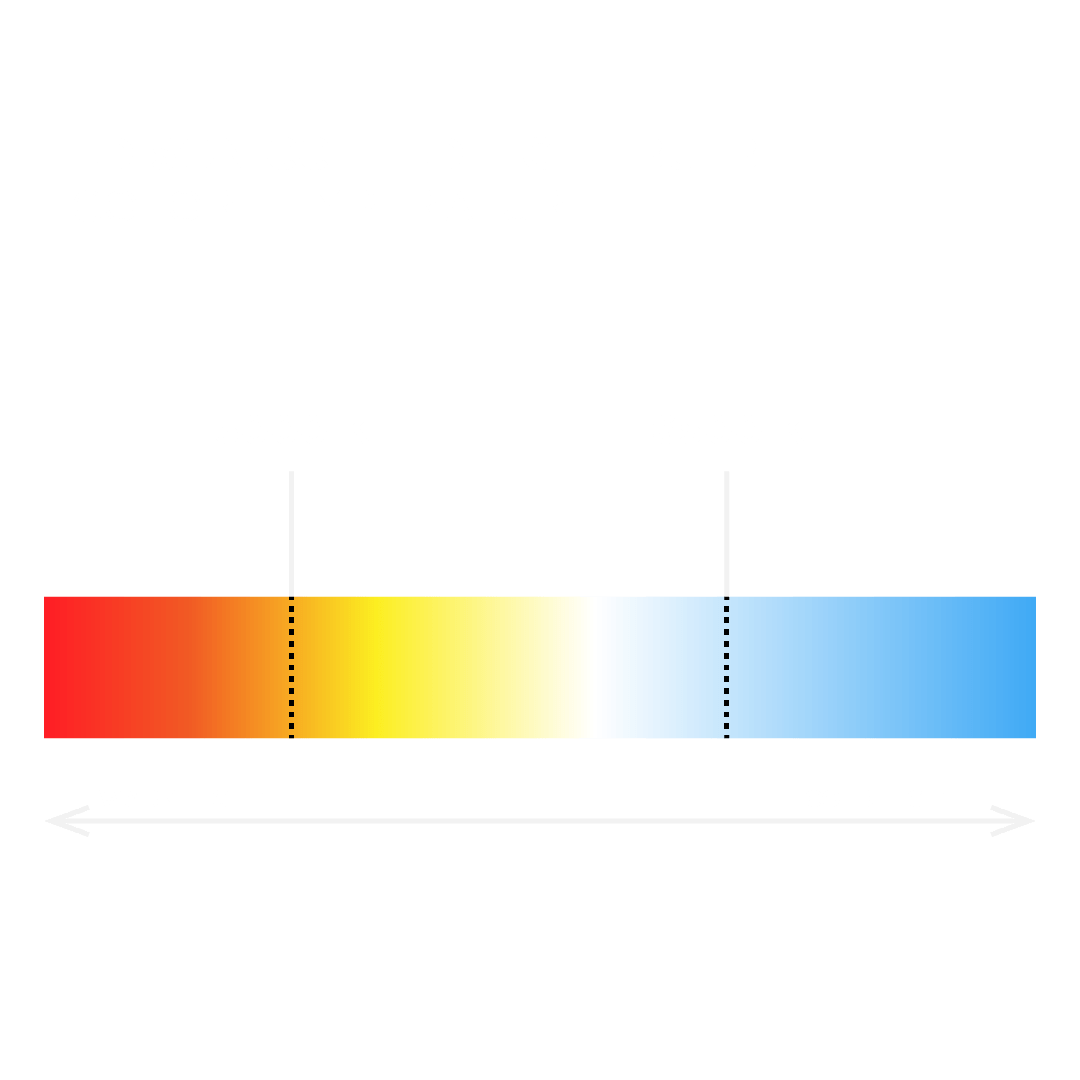

-CCT LED bulbs with anti parallel LED diode connection
POWERED BULB DIMMER DUAL POLARITY is power supply with SPImas Dimmer in aluminum enclosure providing “out-of-the-box” solution for entertainment industry.
With its high PWM frequency it is flicker-free on most video cameras, however as it works on a polarity change principal it will always flicker even on brightness set to maximum.
Each output is controlled by first 16bit of 24bit SPI WS2811 signal . First 8bit is for PWM of one polarity and second 8bit is for PWM of other polarity.
Additional information
| Weight | 1800 g |
|---|---|

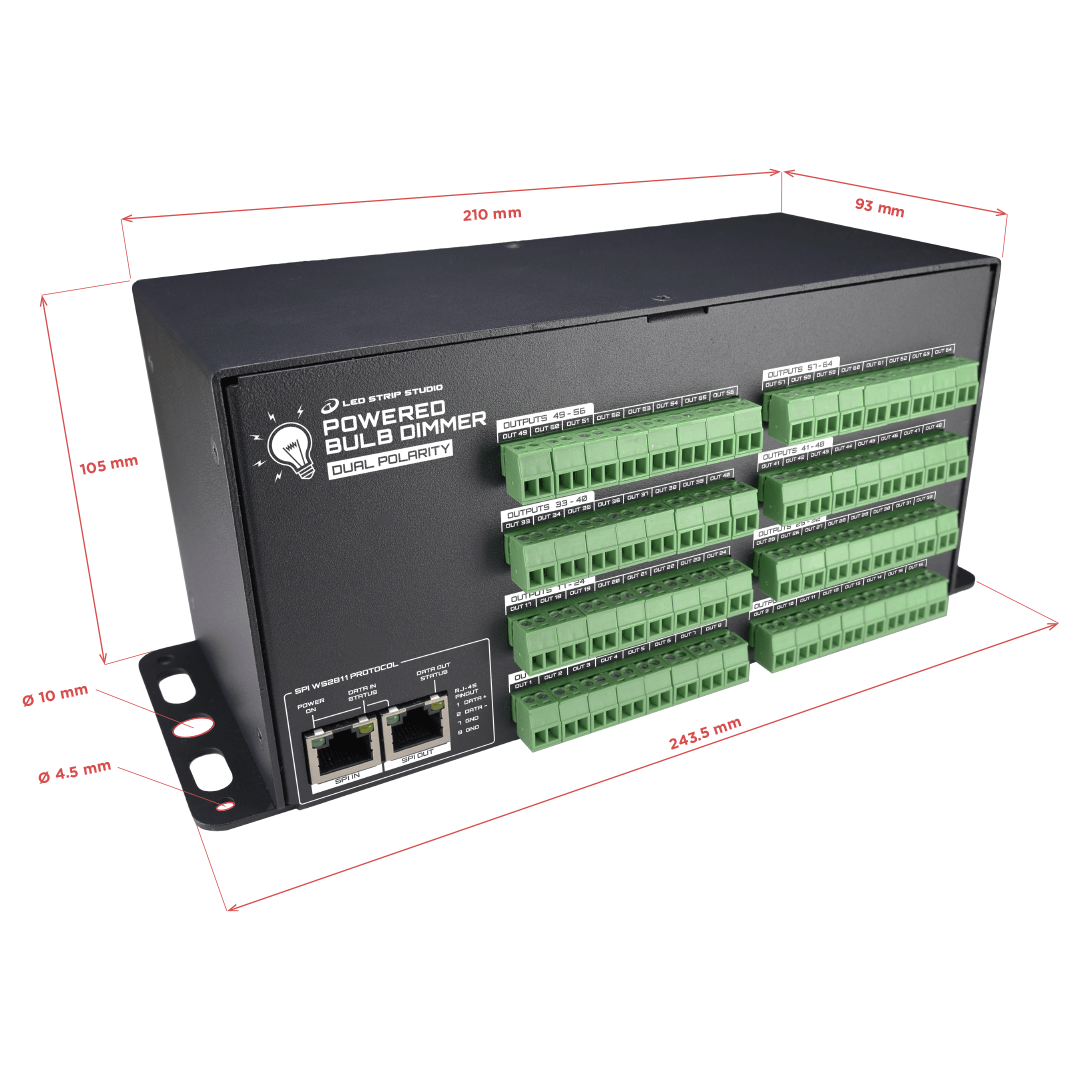

| Dimensions | 300 × 200 × 100 mm |

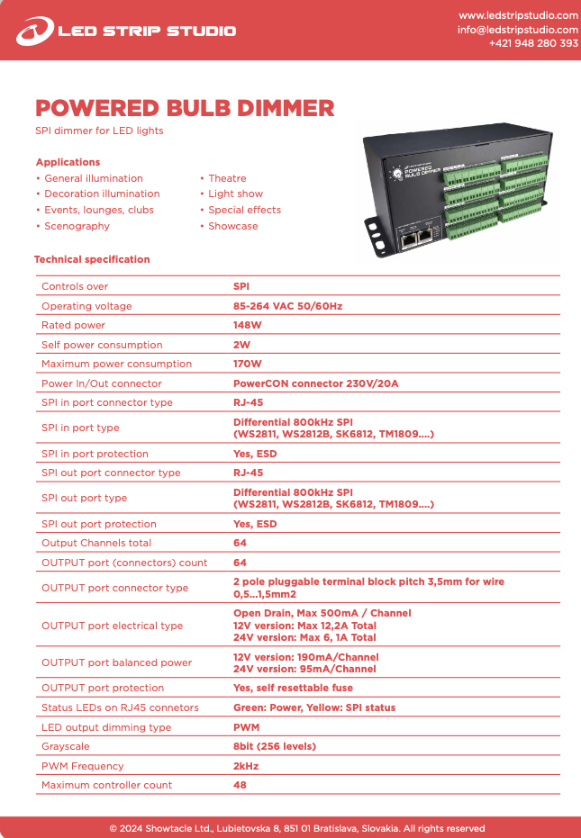

| Data sheet | https://ledstripstudio.com/download/tech-specs/powered-bulb-dimmer-dual-polarity_datasheet.pdf |
| Operating voltage | 85-264 VAC 50/60Hz |
| Self Power Consumption | 6W |

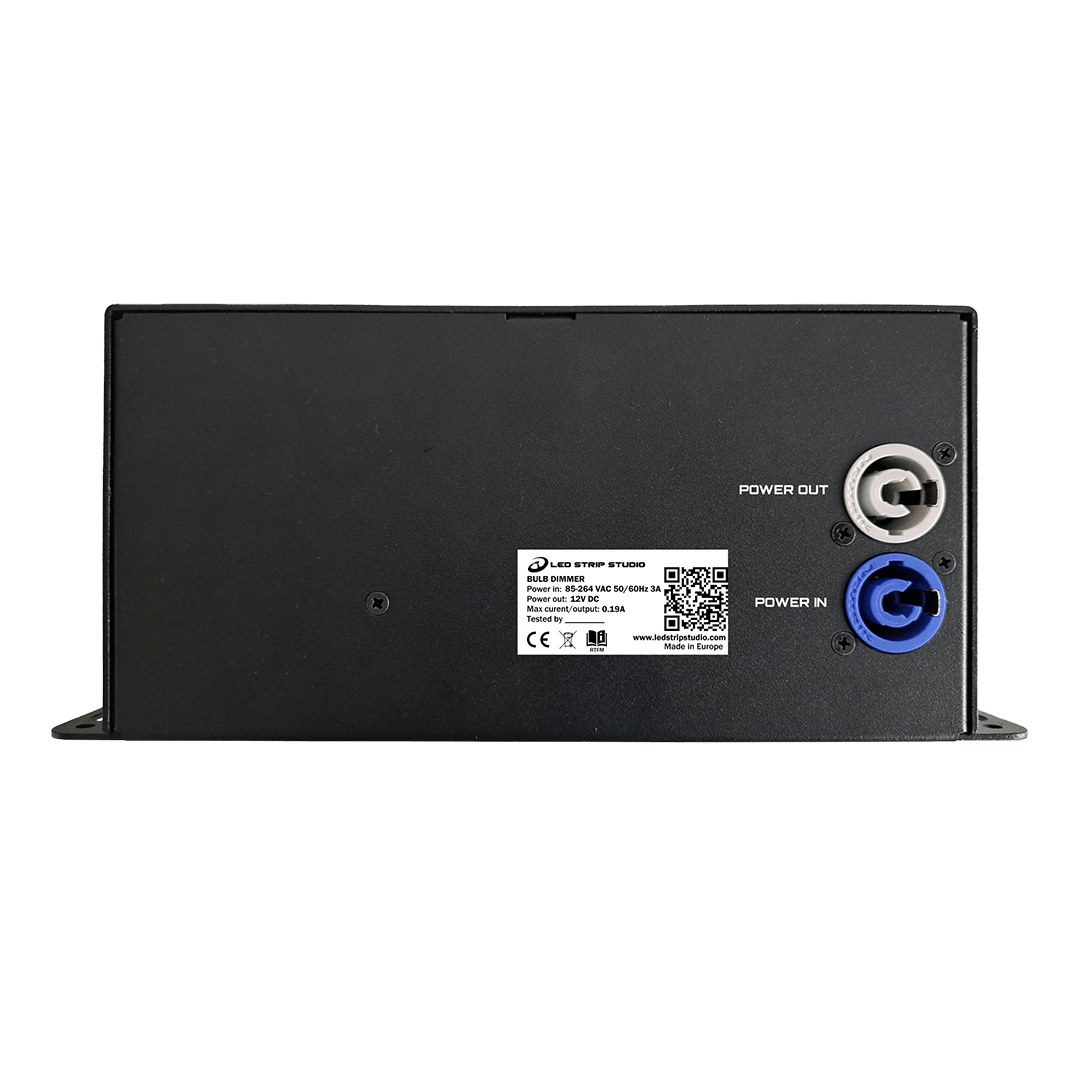

| Power IN Connector | PowerCON connector 230V/20A |

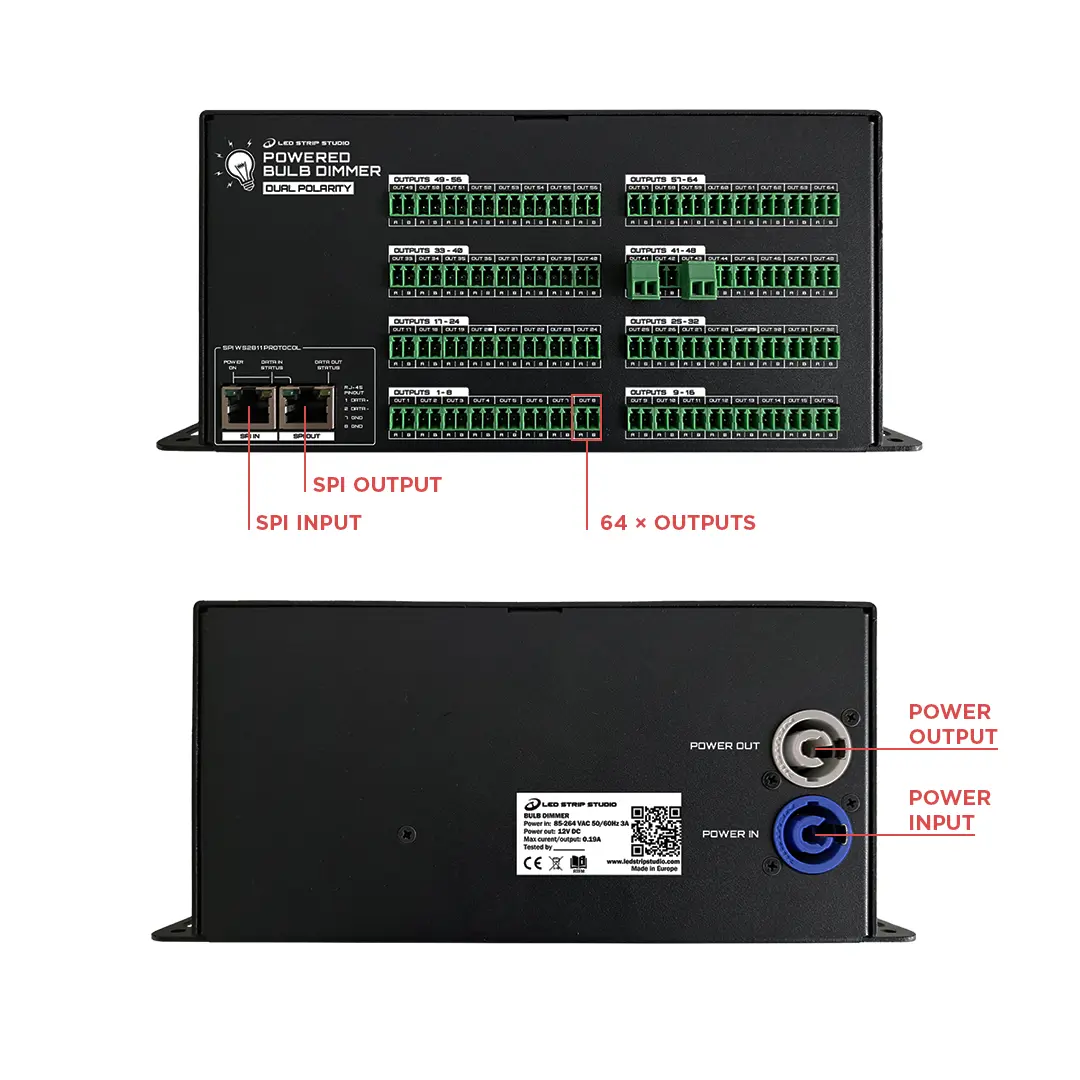

| Output Channels total | 64 |
| OUTPUT port contain power | 33V, max 0,1A/port, max 4A total |
| OUTPUT port (connectors) count | 64 |
| OUTPUT port connector type | 2 pole pluggable terminal block pitch 3,5mm for wire 0,5…1,5mm2 |
| OUTPUT port electrical type | Dual polarity PWM |
| OUTPUT port protection | Yes, self resettable fuse |
| Output connector pins | A,B (Pin1,Pin2) |
| SPI IN/OUT port connector type | RJ-45 |
| SPI IN/OUT port type | Differential 800kHz SPI |
| Grayscale | 8bit (256 levels) |
| PWM Frequency | 2 kHz |
| Works with controller | Any WS2811 controller with differential SPI output. e.g. SPI MATRIX, LEC3 |
| Operating air temperature | -10°C to 45°C |
| Storage air temperature | -30°C to 60°C |
| Ingress Protection | IP30 |
| Enclosure | Aluminum |
| Mouting options | Side tabs with holes for screws, cable ties, clamps, safety wire |
