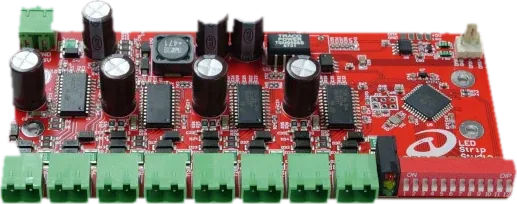

8 Strings. One Board.
Eight independent outputs, each with its own pair of DMX channels, its own fuse and a pluggable screw terminal. Put one Christmas light string on every output, or group lights that should fade together.

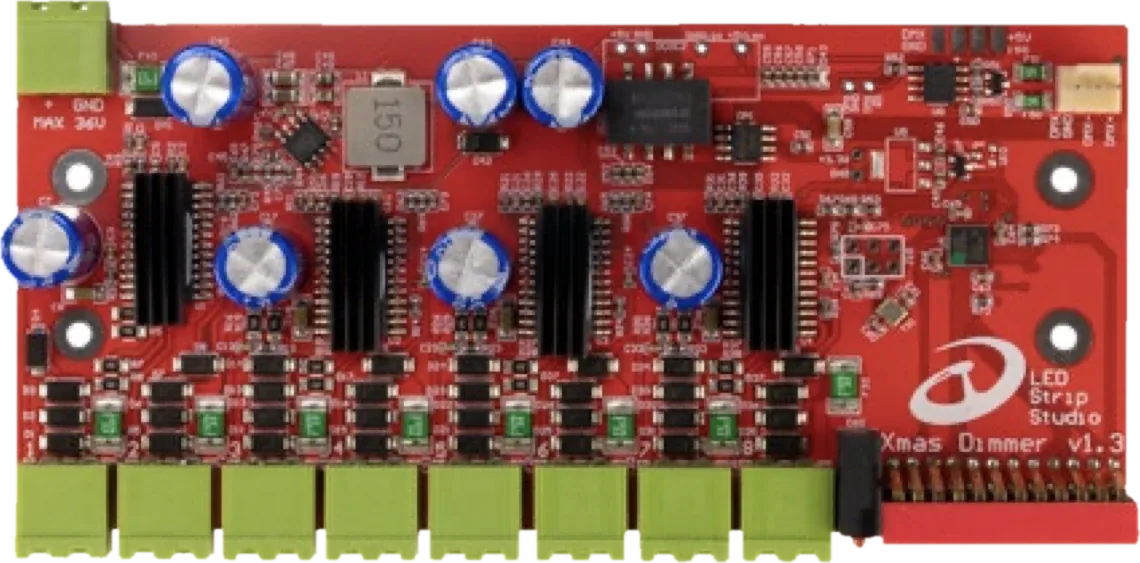

Per Output
Protected, pluggable and independent
Each output is a full H-bridge driven by its own two DMX channels, so every string fades independently of the other seven. An output delivers up to 0.5 A and is protected by a resettable 0.7 A fuse.
Several light strings can share one output as long as their total current stays under 0.5 A. They then fade together as one group.
- Full H-bridge, dual-polarity output
- Up to 0.5 A per output, at the supply voltage (12–36 V DC)
- Resettable 0.7 A fuse on every output
- 2-pole pluggable screw terminal, 5 mm pitch

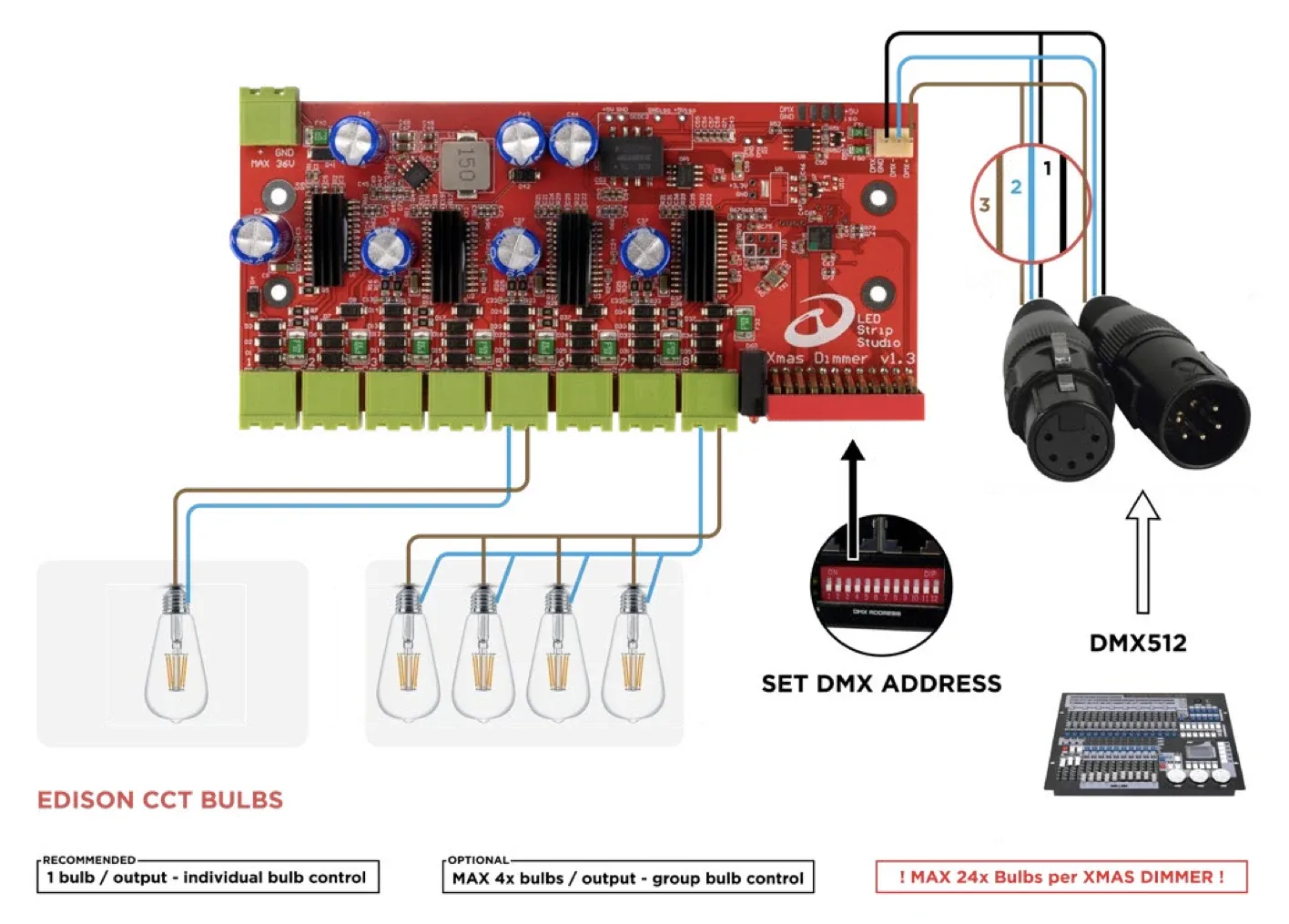

Edison CCT Bulbs
Also for CCT LED bulbs
The same outputs dim CCT LED bulbs with anti-parallel LEDs, such as Edison CCT bulbs. We recommend one bulb per output for individual control; up to four bulbs can share an output as a group.
Keep the total to a maximum of 24 bulbs per Xmas Dimmer.
- Recommended: 1 bulb per output, individual control
- Optional: up to 4 bulbs per output, group control
- Maximum 24 bulbs per Xmas Dimmer
FAQ
Output questions
Yes, as long as the strings together stay under 0.5 A. Strings on the same output are not individually controllable—they fade together.
Every output has a resettable 0.7 A fuse. Keep the load under the 0.5 A rating per output.
One bulb per output is recommended for individual control, up to four per output as a group, and no more than 24 bulbs per Xmas Dimmer. More in Edison Dual White Bulb: Warm & Cool E27.
