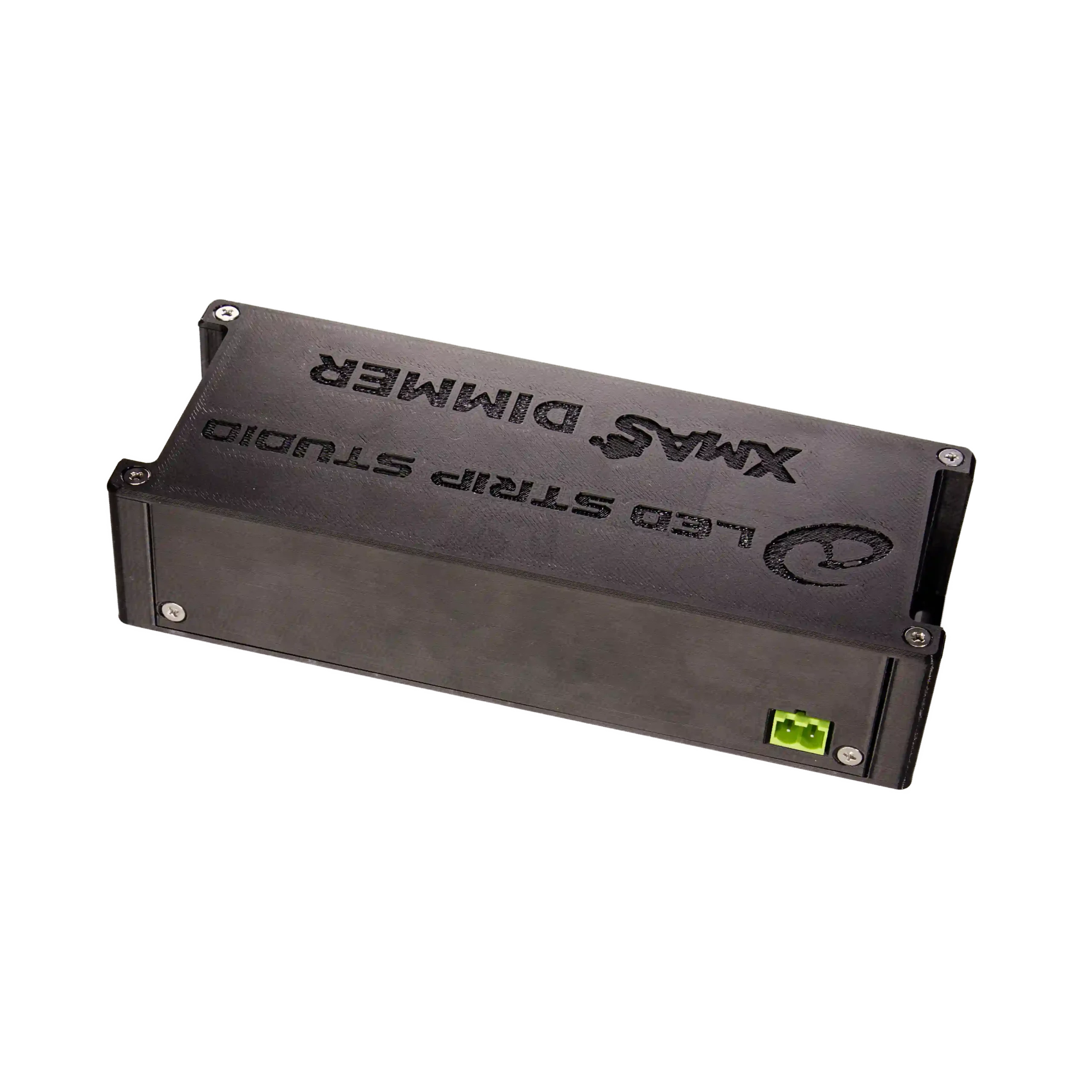

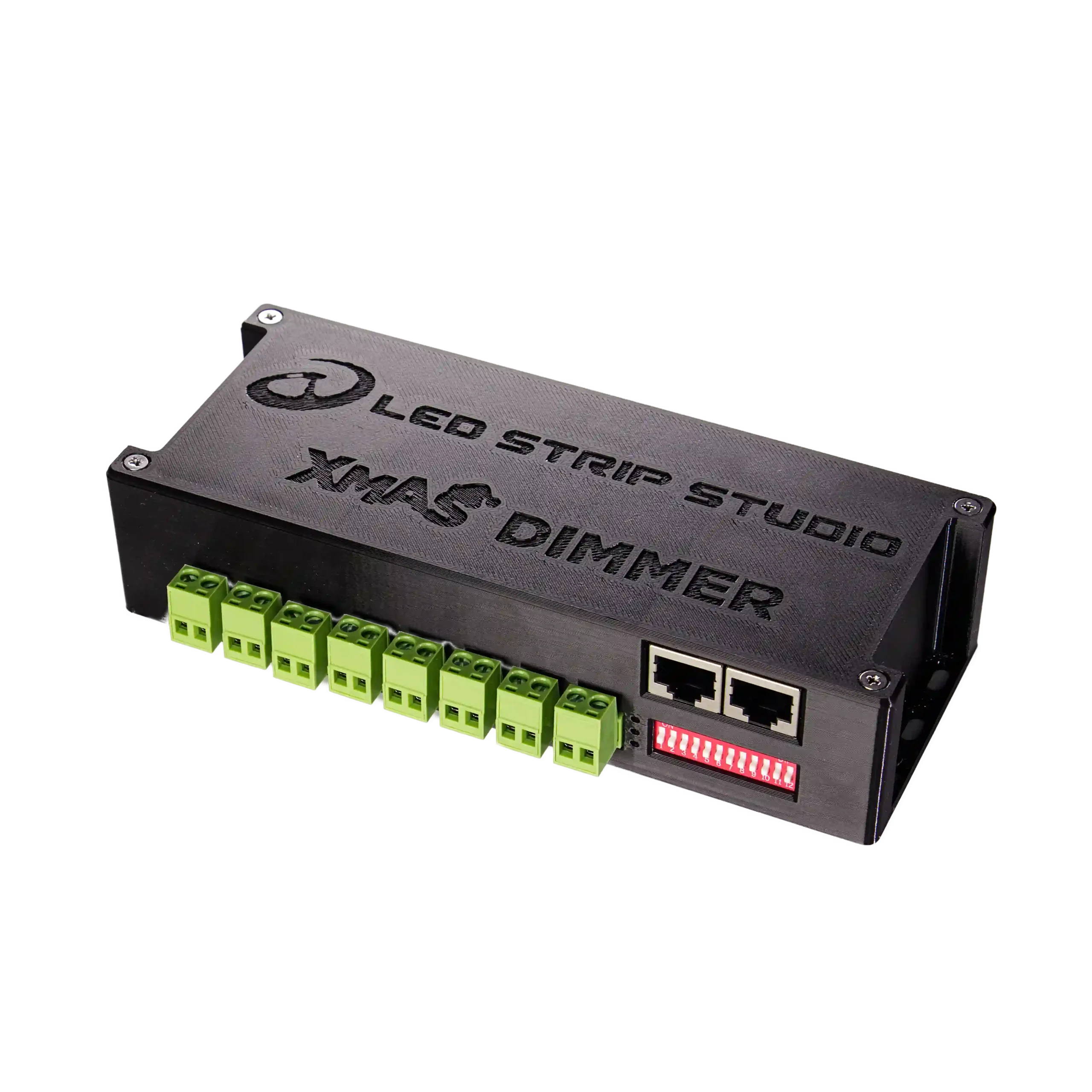

Powered Xmas Dimmer

450.00 excl. VAT

The traditional Christmas lights are usually pretty stupid. But they are beautiful and people love them.

The lights usually provide just a simple power adapter, which usually provides only up to 8 different blink modes. Using Xmas Dimmer you can control these lights using any DMX controller.

This controller turns boring blinking lights into fully programmable part of your Christmas light show. With built-in power supply you can connect the lights straight away.

Description

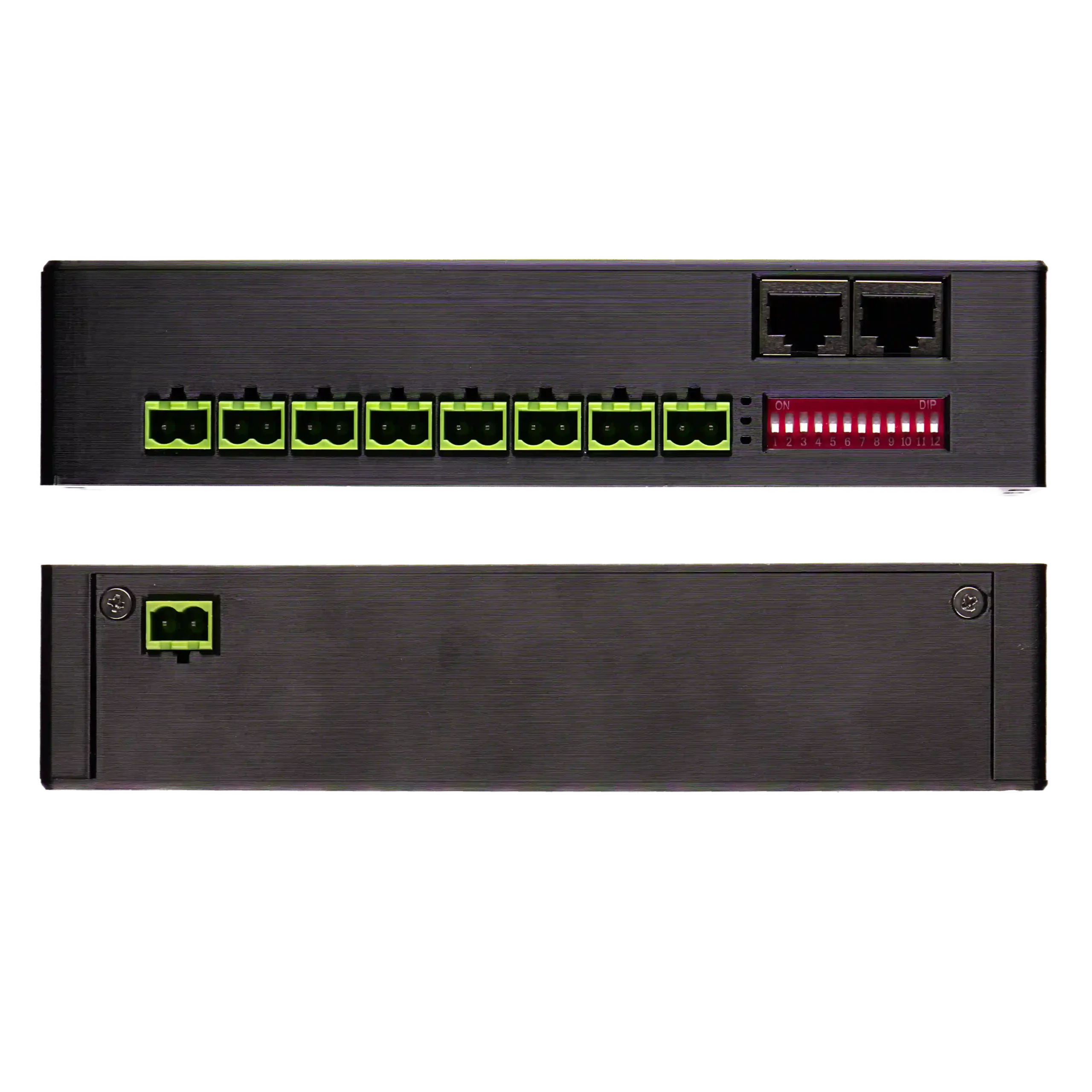

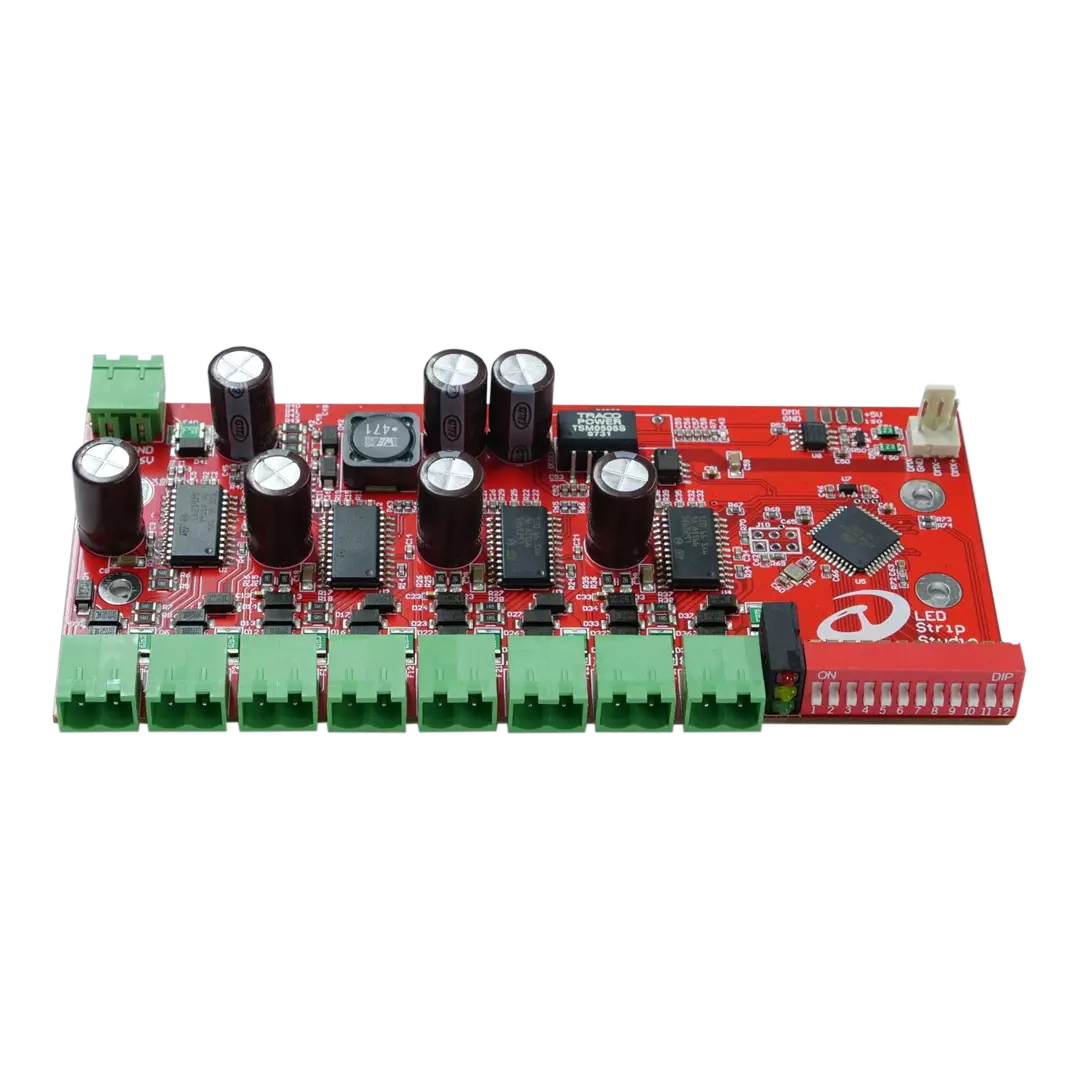

DMX controller for traditional Christmas lights with two separate light lines. Usually the Christmas lights use 31 Volt adapter, which provides just a few blinking effects. Using Xmas Dimmer you can control up to 8 separate Christmas light strings using your DMX console (or DMX software).

Using two DMX channels you can control intensity of the two separate lines in every traditional Christmas light.

It’s easy to connect traditional Christmas light  to this controller. Just cut the two cables to the adapter and connect them to Xmas Dimmer and you’re ready to go.

For a set of Xmas Dimmer + Edison LED bulbs visit this link – https://www.ledstripstudio.com/shop/product/edison-cct-white-light-bulb/

Additional information

Weight 635 g
Dimensions 212 × 162 × 42 mm

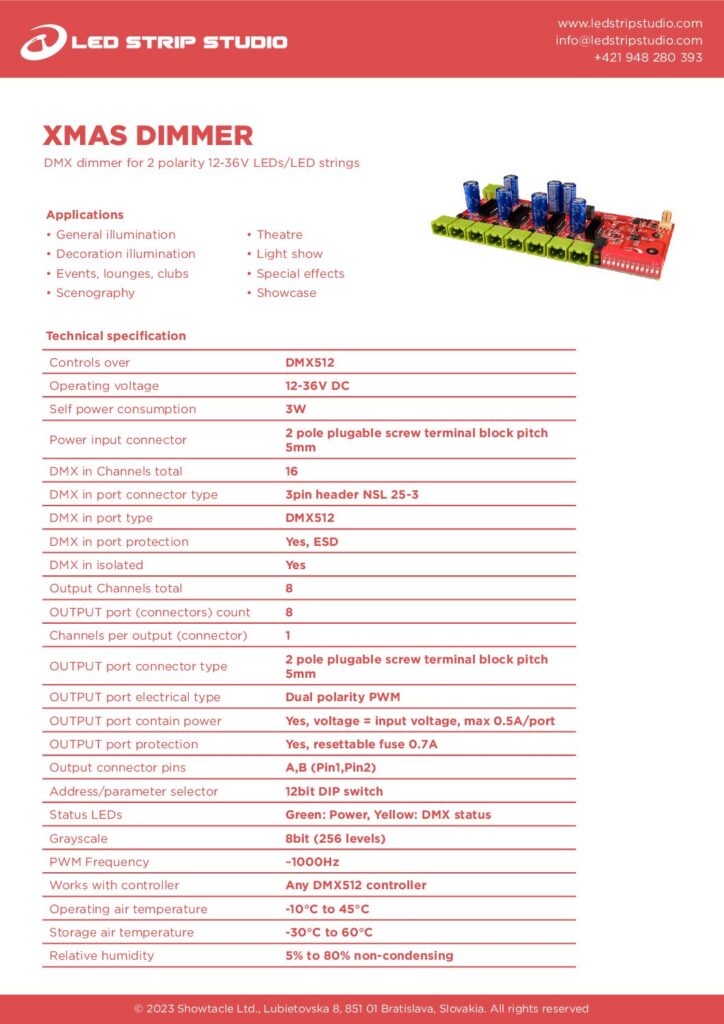

Data sheet

https://ledstripstudio.com/download/tech-specs/powered-xmas-dimmer_datasheet.pdf

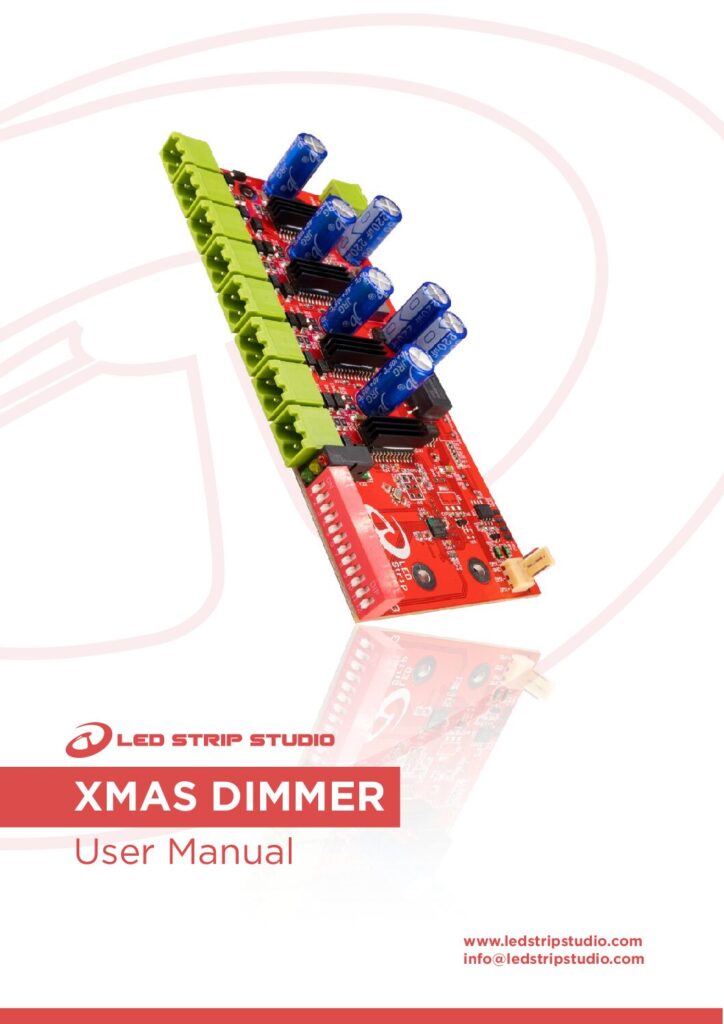

Manual

https://ledstripstudio.com/download/user-manuals/powered-xmas-dimmer_manual.pdf

Operating voltage

88 ~ 264 VAC/47 ~ 63Hz

Self Power Consumption

5W

Power IN Connector

IEC C13 + IEC C14, max 10A pass thru current

DMX in Channels total

16

DMX in port connector type

RJ-45

DMX in port type

DMX512

DMX in isolated

Yes

Output Channels total

8

OUTPUT port (connectors) count

8

Channels per output (connector)

1

OUTPUT port connector type

2 pole plugable screw terminal block pitch 5mm

OUTPUT port electrical type

Dual polarity PWM

OUTPUT port contain power

Yes, voltage = input voltage, max 0.5A/port

OUTPUT port protection

Yes, resettable fuse 0.7A

Output connector pins

A,B (Pin1,Pin2)

Status LEDs

Green: Power, Yellow: DMX status

Grayscale

8bit (256 levels)

PWM Frequency

~1000Hz

Works with controller

Any DMX512 controller

Operating air temperature

-10°C to 45°C

Storage air temperature

-30°C to 60°C

Relative humidity

5% to 80% non-condensing

Waterproof

No

Ingress Protection

IP30

Enclosure

Aluminum

Mouting options

4x mounting hole diameter 3.2mm
