Description
profiLED is a complete RGB pixel LED bar system, delivered ready to run. Stage and event lighting rarely fails because of the fixtures. It fails because of the twenty small parts nobody packed.
profiLED removes that risk. The package holds ten or twenty one-metre bars. Moreover, it includes the powered controller and the LED Strip Studio pixel mapping software. So there is nothing left to source and nothing left to guess.

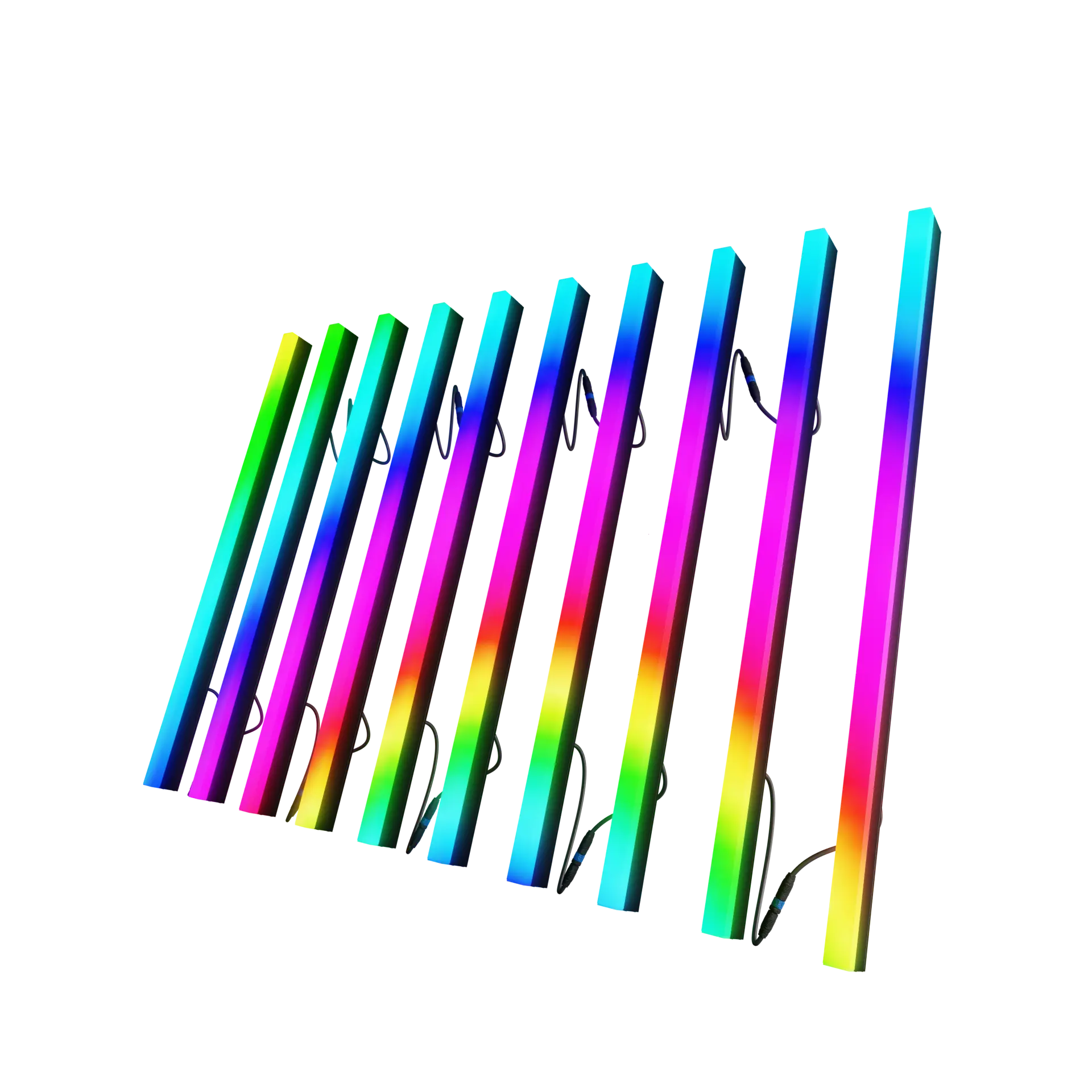

Sixty pixels in every profiLED bar
Each bar holds 60 individually addressable pixels across three colour channels. Red sits at 620 nm, green at 520 nm and blue at 465 nm. The CRI is above 80, and typical output reaches 400 lm per metre at 12 W. Therefore colour stays clean on camera and on skin. In addition, the 150° view angle spreads light evenly along the whole bar.
Built for the road and the weather

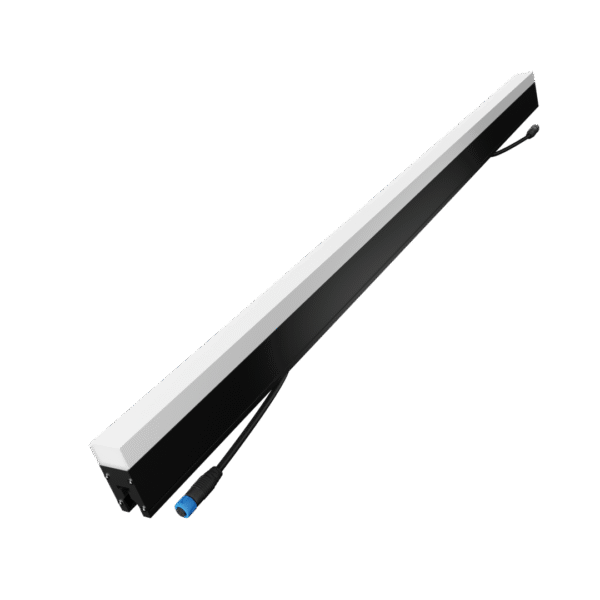

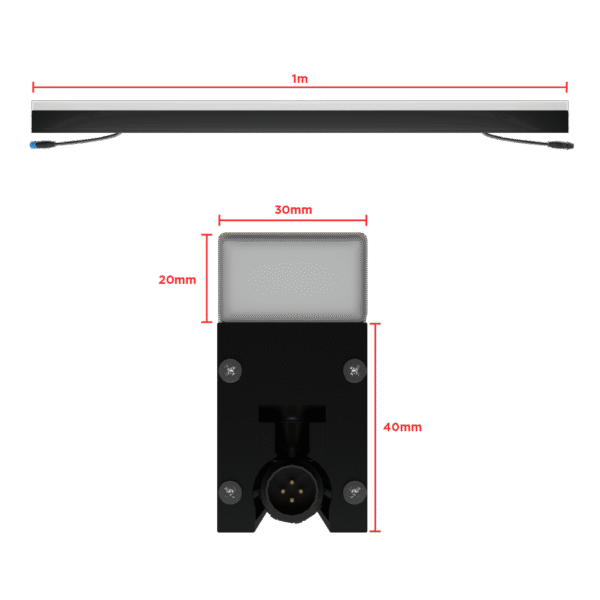

The profile is black anodised aluminium, 60 x 30 x 1000 mm, weighing 1 kg. It carries an IP68 rating, so rain, dust and wash-down do not stop the show. It also runs from -20 °C to 65 °C. Bars connect through 4-pin M12 connectors with a push lock. Power and data therefore travel in one cable and stay locked in place. As a result, a full rig goes up in minutes instead of an afternoon.
What the package contains:
10 or 20 profiLED bars, 1 m each, 60 pixels per bar
Controller with integrated power supply
LED Strip Studio pixel mapping software
24 V DC operation, 0.5 A per bar
IP68 black anodised aluminium profile
Where profiLED works hardest

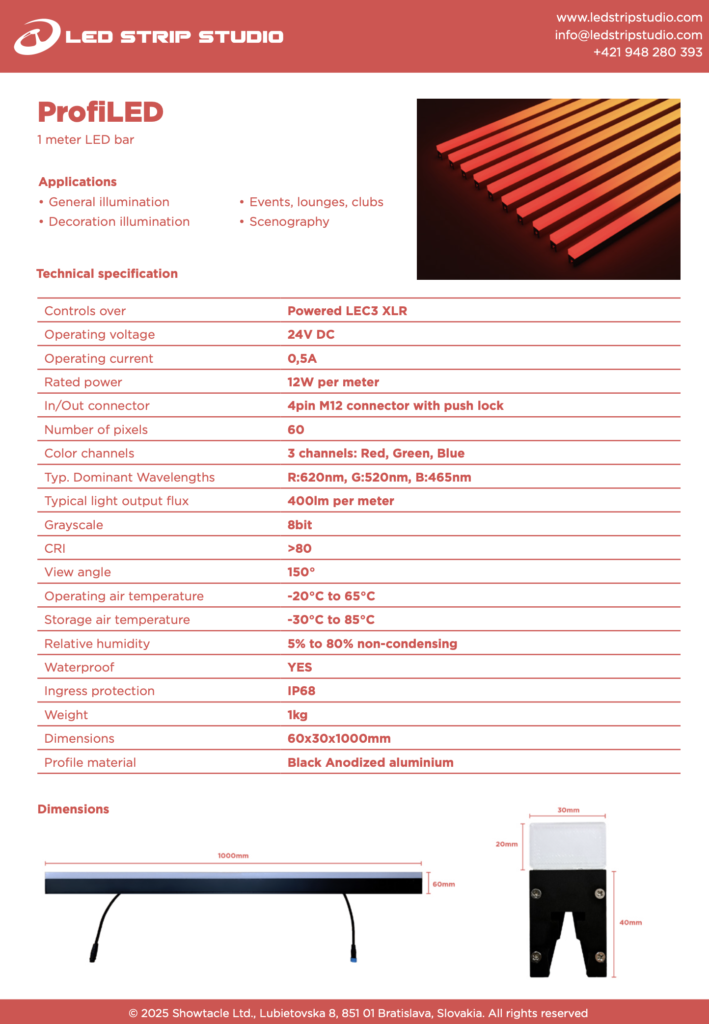

Use profiLED for general and decorative illumination, events, lounges, clubs and scenography. Control runs over the Powered LEC 3 controller. Consequently Art-Net, DMX512 and LED Strip Studio all reach the bars from one box. Full technical values are listed in the profiLED datasheet. Finally, Showtacle designs and builds every bar in Bratislava, Slovakia.
