Edison CCT Light Bulb MEGA SET

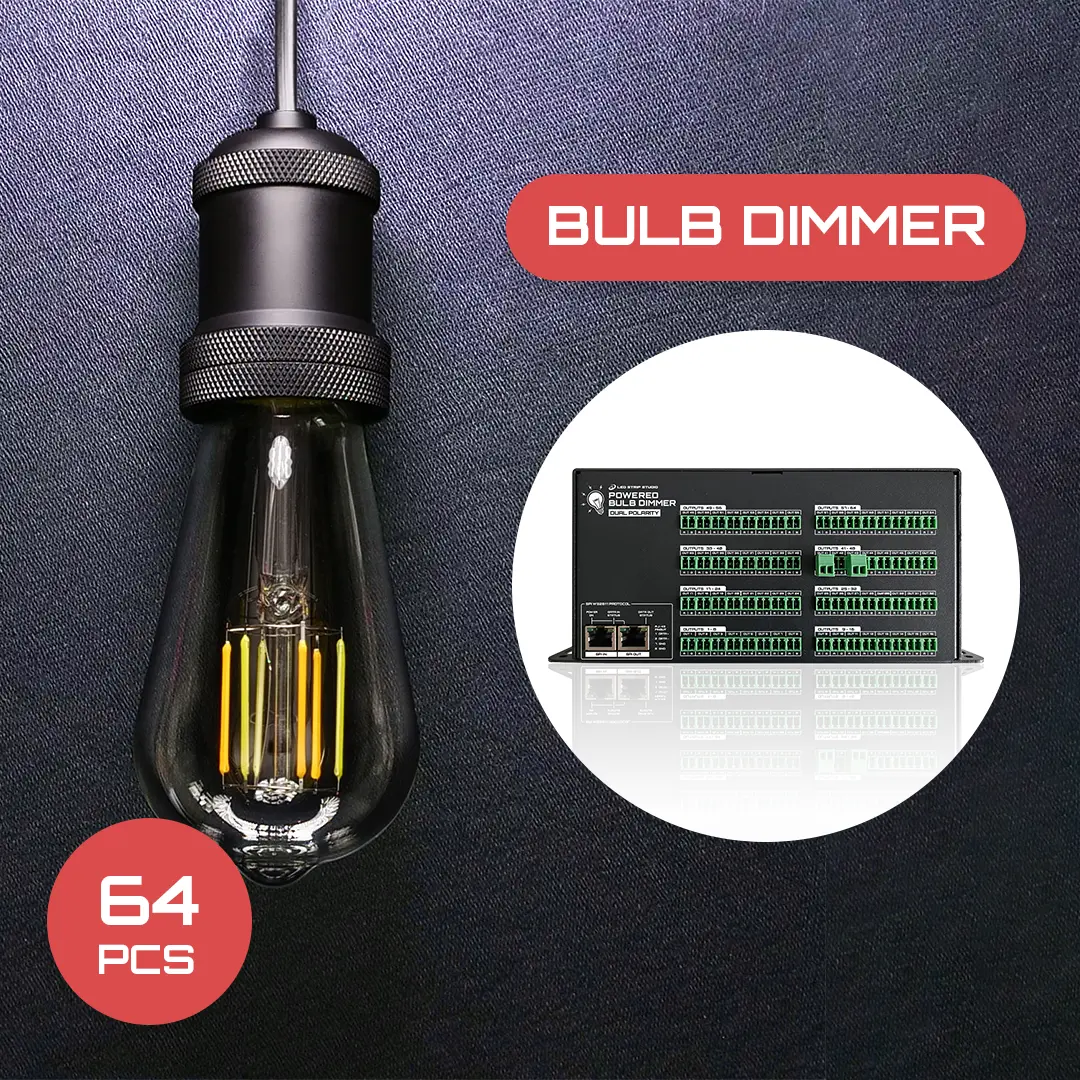

Package of 64 EDISON CCT LED Light Bulbs with POWERED BULB DIMMER – DUAL POLARITY controller.
Classic design with added value. Our special LED bulbs have two fillaments, one for Warm white and one for Cold white color.
You can use them in classic E27 socket and control via WS2811 protocol (or DMX protocol using additional SPI LED Controller). This way, they can provide not only pleasant mood light source, but you can also play simple animations. With our software and LED Ethernet Controller 3, you can even create a animation that will be synced with music.
POWERED BULB DIMMER – DUAL POLARITY – is a special 64 channel dual polarity SPI dimmer with built-in power supply designed for dimming 31-33V dual polarity constant voltage (CV) fixtures with anti parallel LED diode connection
- In Stock 5+
- 1-3 days in EU, 2-5 days worldwide
€1,990.00 excl. VAT
Description
Package of 64 Warm/Cold White EDISON CCT LED bulbs and POWERED BULB DIMMER – DUAL POLARITY controller to change their brightness.

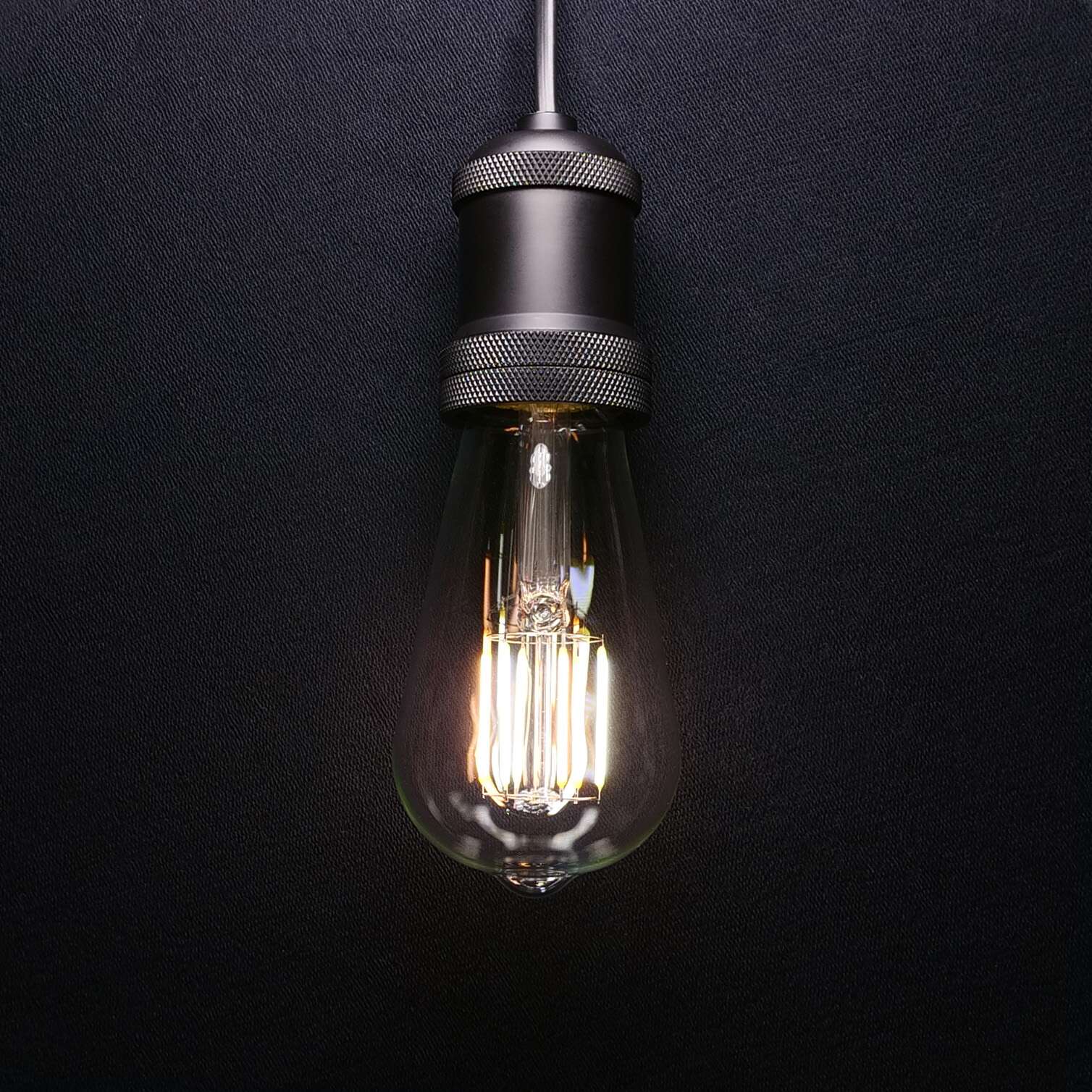

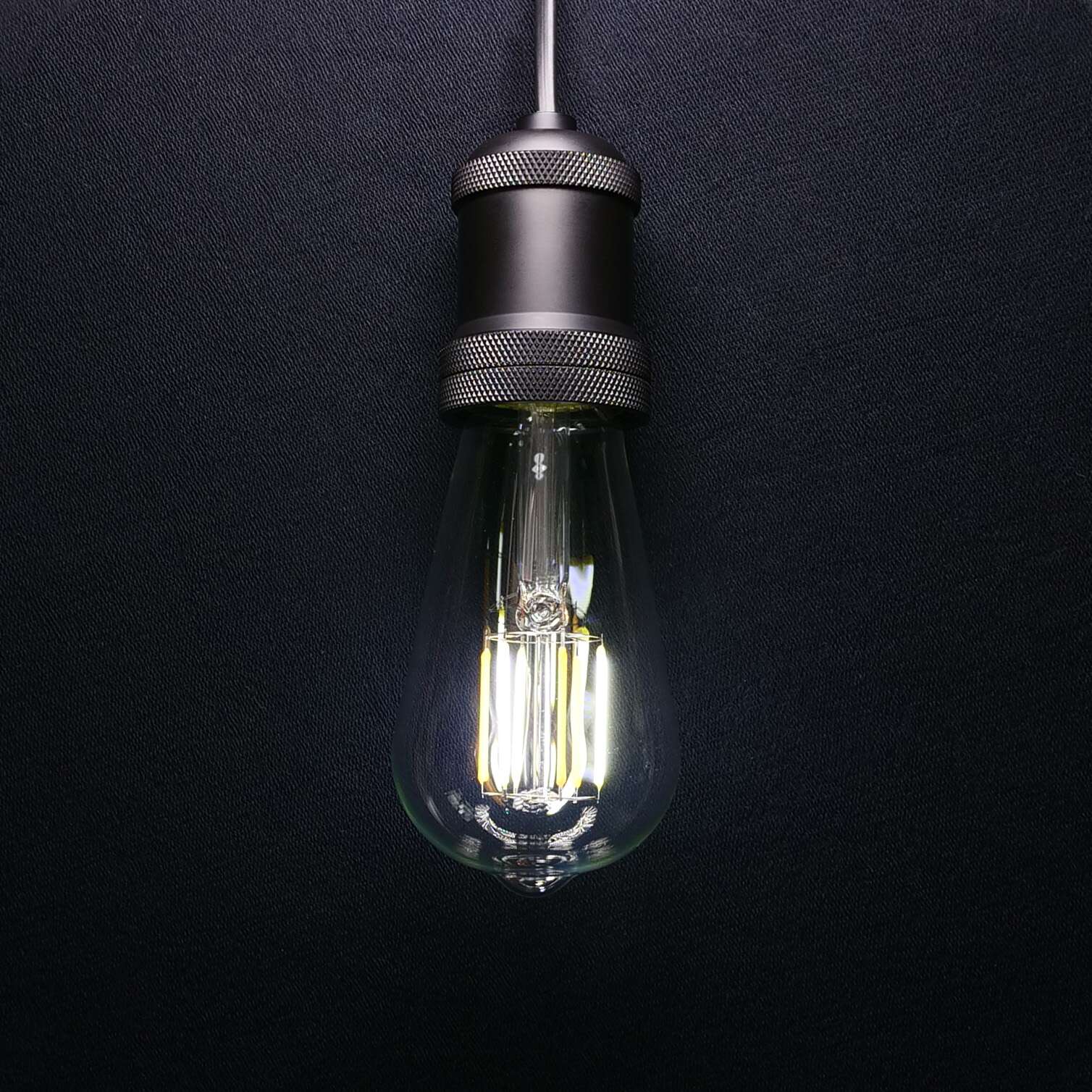

EDISON CCT Bulb contains 3 cold white and 3 warm white LED filaments.
Filaments are connected antiparallel what means, that DC voltage applied in one polarity lights up one filament temperature and reverse polarity lights up other filament temperature. This allow standard E27 socket with only two wire connection to be used. Working voltage of bulb is 32V.
Using dual polarity dimmer you can mix, fade and dim each color temperature individually. Suitable dual polarity dimmer from LED Strip Studio family is Xmas dimmer. You can control each color temperature by standard worldwide used WS2811 lighting protocol (or DMX protocol using additional SPI LED Controller).
Additional information
| Weight | 900 g |
|---|---|
| Dimensions | 320 × 230 × 160 mm |
| EDISON BULB Datasheet | https://ledstripstudio.com/download/tech-specs/edison-cct-led-bulb_datasheet.pdf |
| BULB DIMMER Datasheet | https://ledstripstudio.com/download/tech-specs/powered-bulb-dimmer-dual-polarity_datasheet.pdf |
| Operating voltage | 33V DC, 2 polarity |
| Operating current | 38mA warm white + 38mA cold white |
| Rated power | 1.25W warm white + 1.25W cold white |
| Warm white filament count | 3 |
| Warm white filament CRI | >82 |
| Warm white color temperature | typ. 3000K |
| Bulb Height incl. E27 socket | 140mm |
| Warm white power | 1.25W |
| Warm white E27 polarity | tip +, thread sleeve – |
| Warm white efficiency | typ. 150lm/W |
| Cold white filament count | 3 |
| Cold white filament CRI | >82 |
| Cold white color temperature | typ. 6500K |
| Cold white power | 1.25W |
| Cold white E27 polarity | Tip -, thread sleeve + |
| Cold white efficiency | typ. 150lm/W |
| Works with controller | Powered Xmas dimmer, Xmas dimmer |
| Operating air temperature | -10°C to 45°C |
| Storage air temperature | -10°C to 60°C |
| Relative humidity | 5% to 80% non-condensing |
| Bulb Shape | ST64 |
| Bulb Material | Glass |
