SPI Shifter – 12 pixel board

120.00 excl. VAT

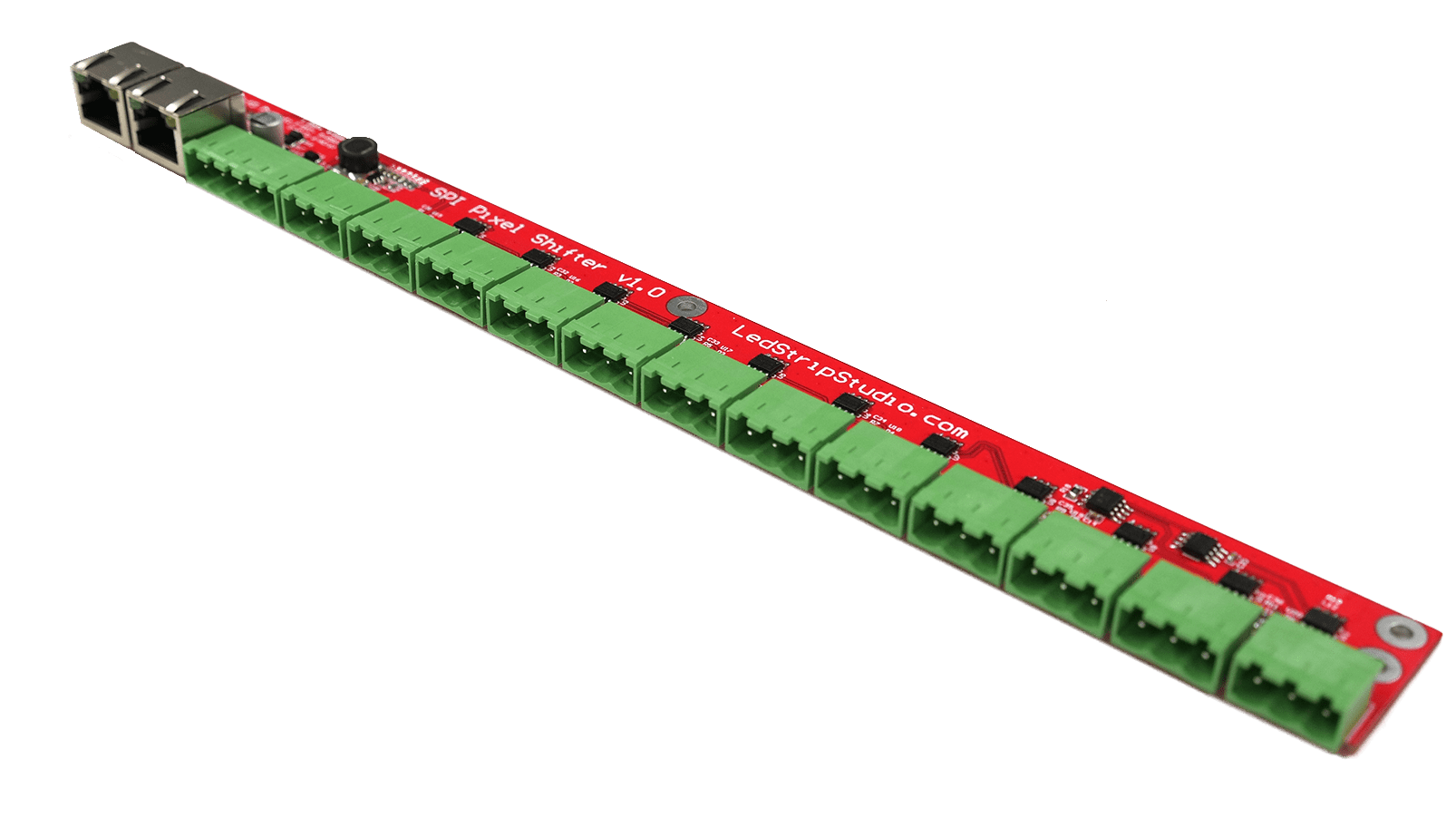

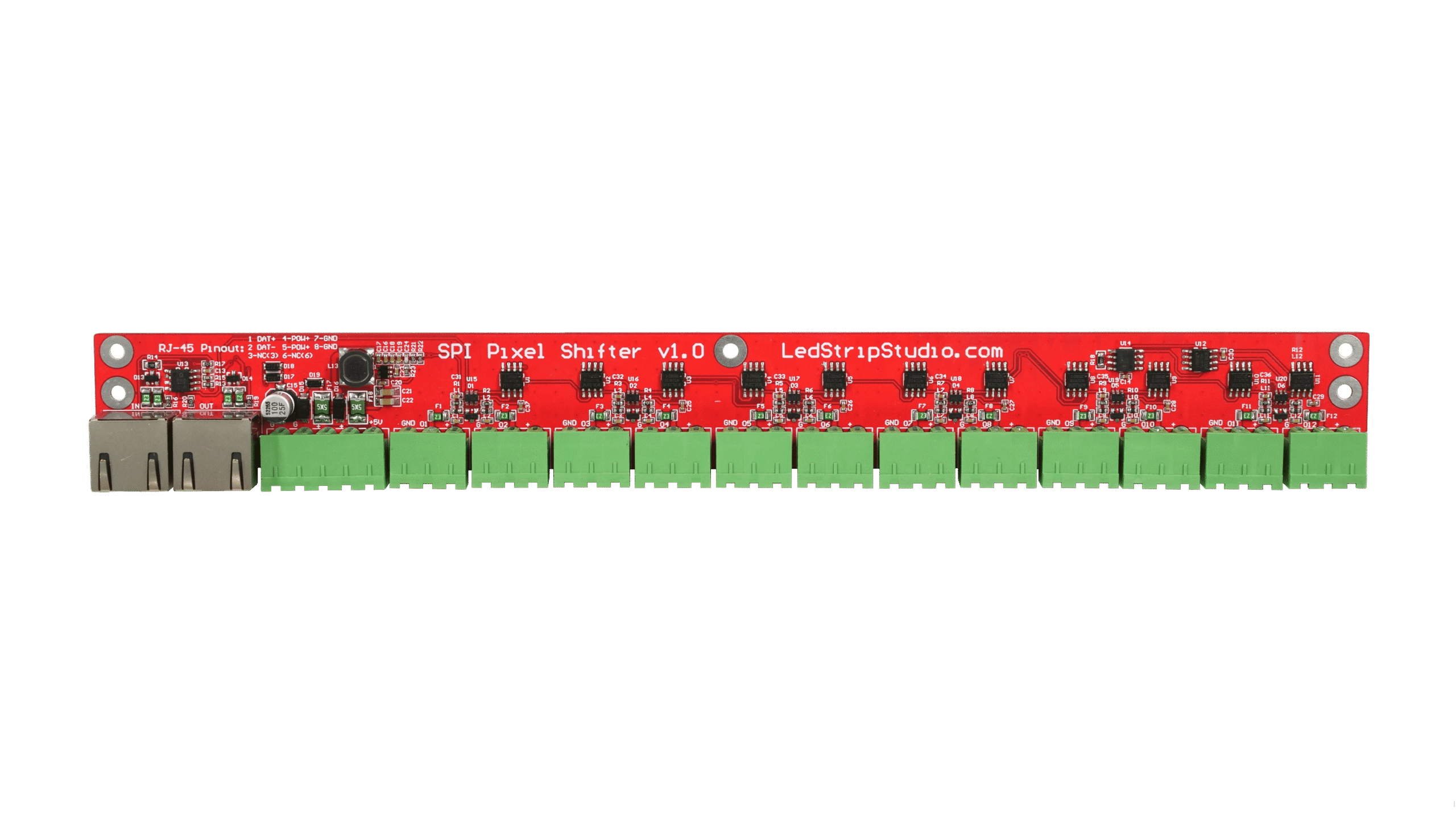

SPI Shifter, as the name of the device suggests, is a simple board that allows you to connect 12 digital pixels (or pixels with multiple diodes that act as a single digital pixel) in a row without the need to go back with the signal. Developed for hanging lamps, this device shifts the signal for exactly one RGB pixel and let’s you connect 12 pixels in a row.

With built-in Symmetrizer, you can take the diodes and the device hundreds of meters away from the controller ( given you are using differential signal, e.g. LEC3 ).

Once you disconnect one pixel, remaining pixles are still working.

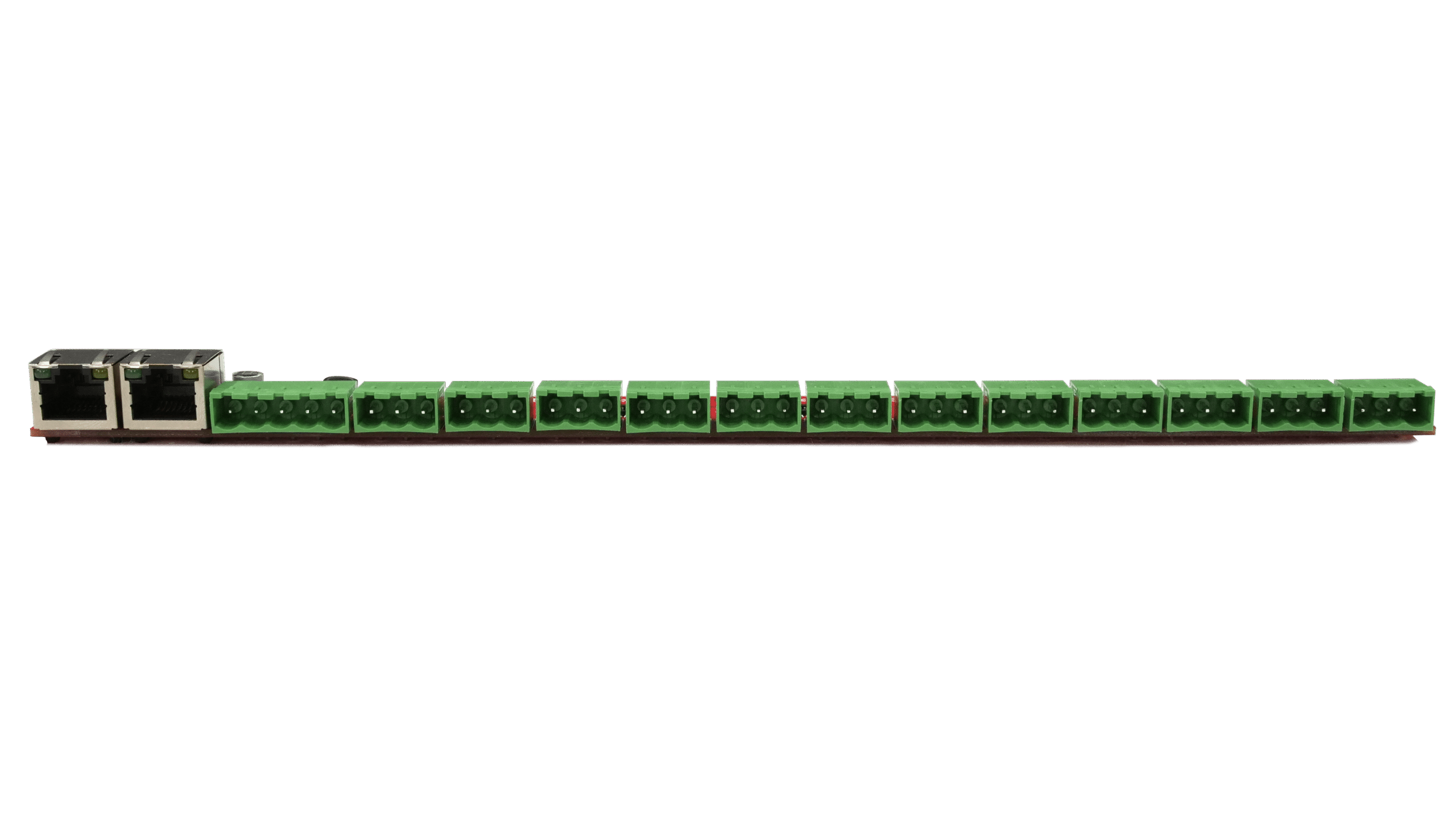

Wide range of operating voltage (5V DC or 8-24V) extend the versatility of this device. RJ45 ports for signal ensure a transmission on a long distance with ease.

Description

SPI Shifter, as the name of the device suggests, is a device that allows you to connect 12 digital pixels (or pixels with multiple diodes that act as a single digital pixel) in a row without the need to go back with the signal. Developed for hanging lamps, this device shifts the signal for exactly one RGB pixel and let’s you connect 12 pixels in a row.

With built-in Symmetrizer, you can take the diodes and the device hundreds of meters away from the controller ( given you are using differential signal, e.g. LEC3 ).

Once you disconnect one pixel, remaining pixles are still working.

Wide range of operating voltage (5V DC or 8-24V) extend the versatility of this device. RJ45 ports for signal ensure a transmission on a long distance with ease.

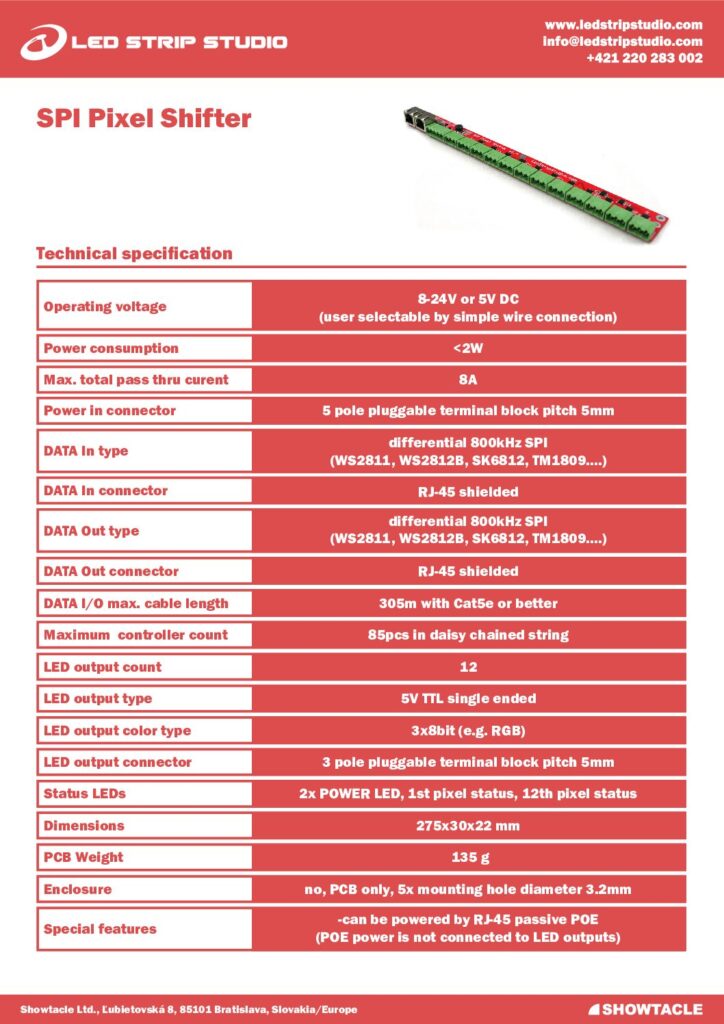

Additional information

Weight 200 g
Dimensions 275 × 30 × 22 mm
DATA I/O max. cable length

350m with Cat5e or better

Max. Controller Count:

85pcs in daisy chained string
