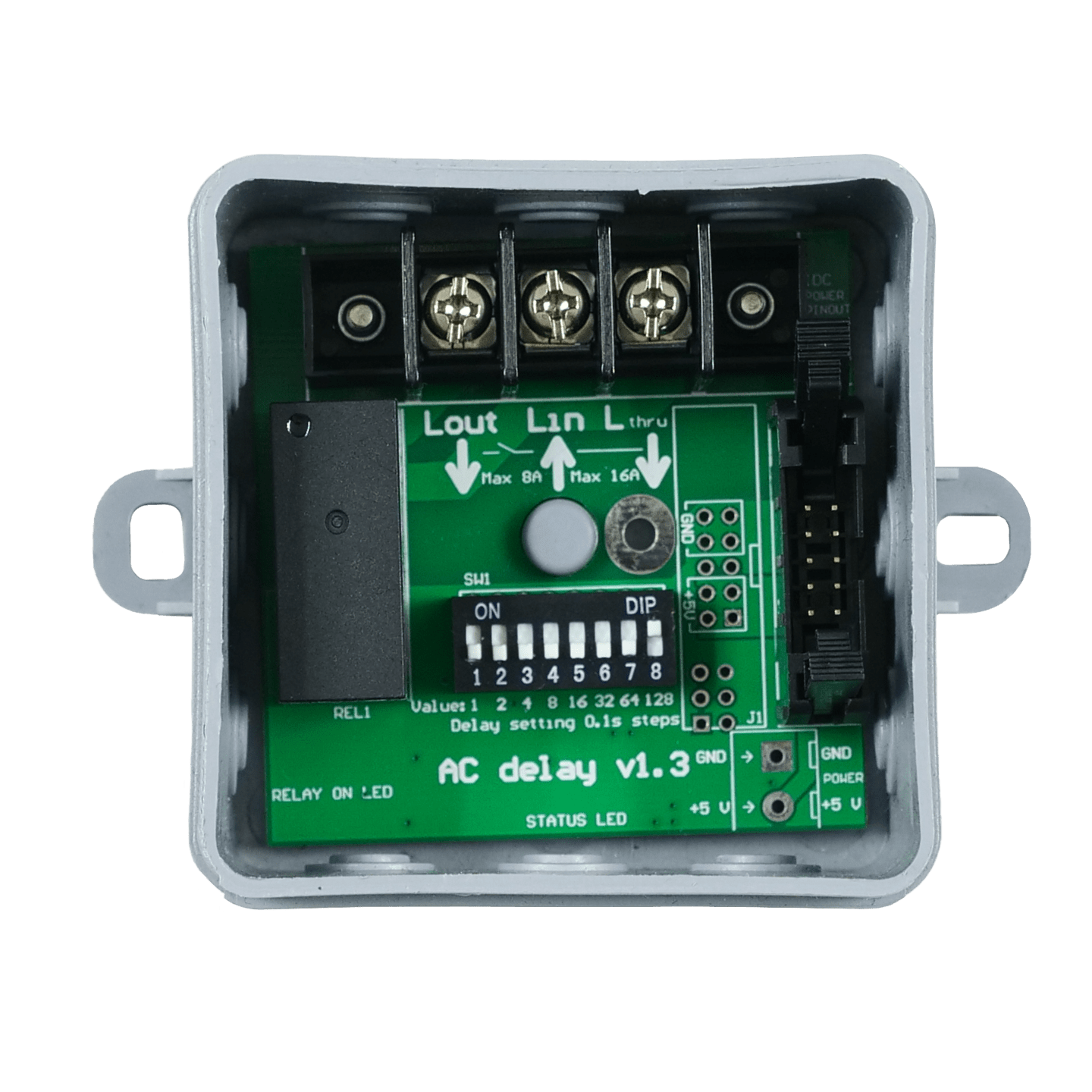

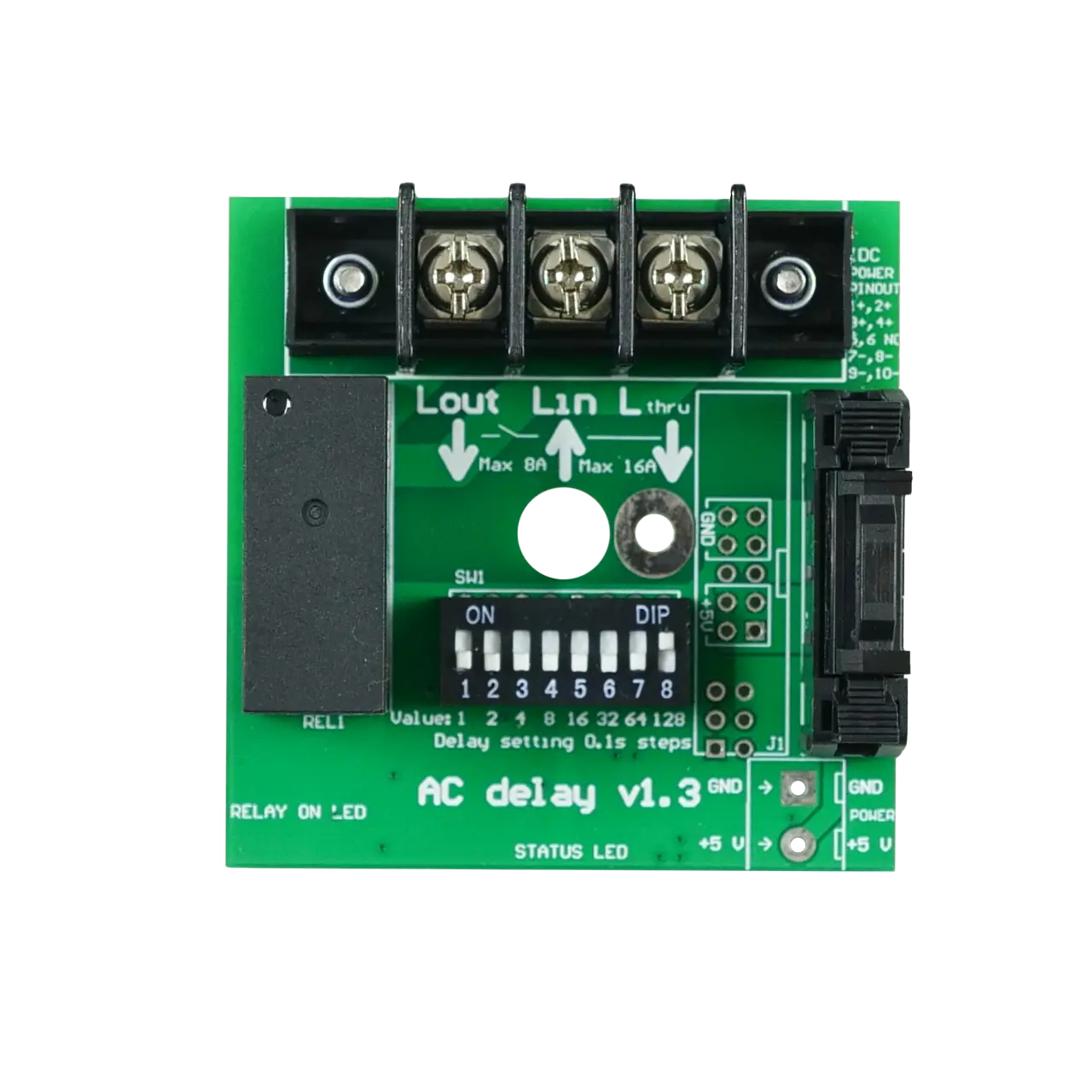

AC Delay

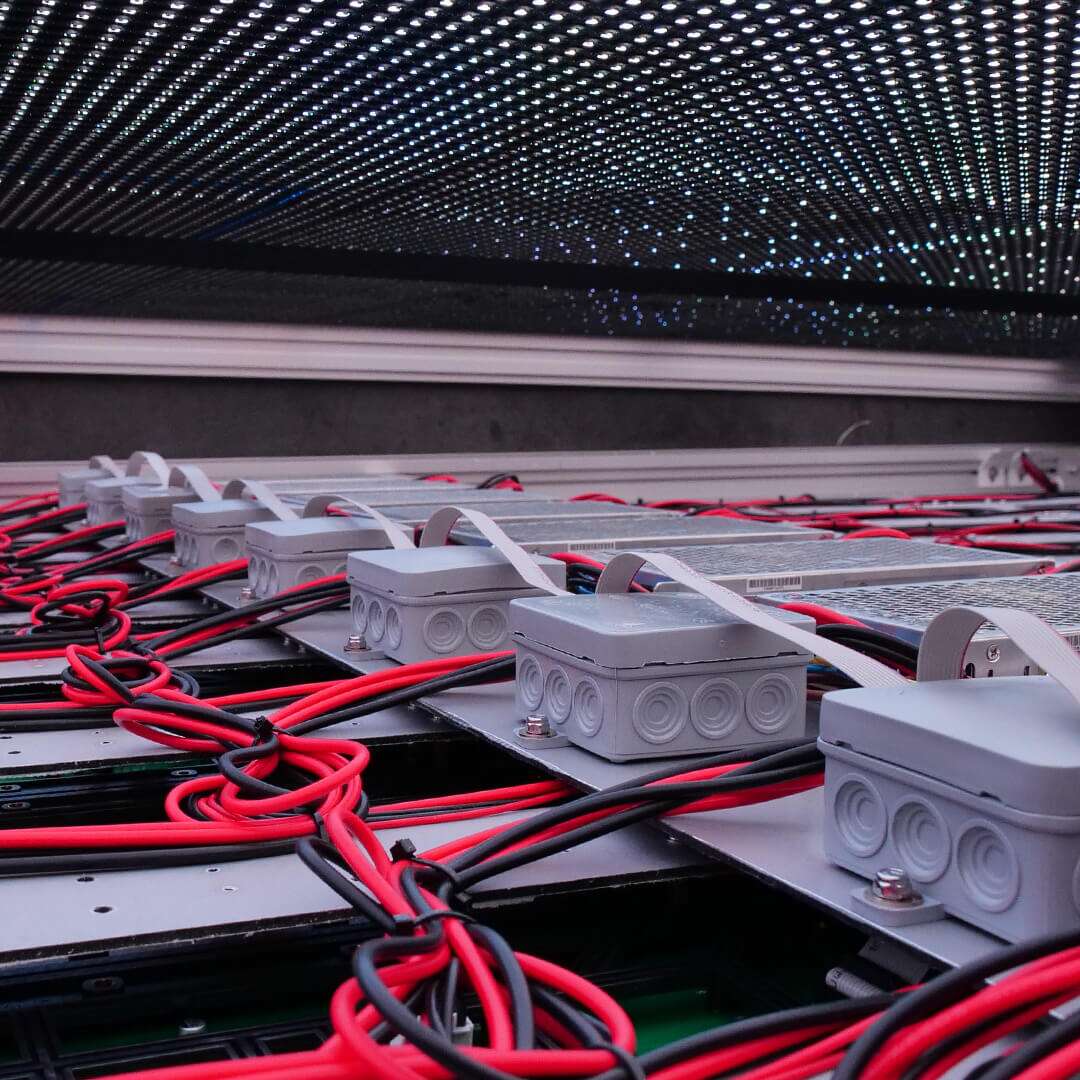

AC delay device allows to delay the power-up of the power source. It’s great option especially for LED screens to prevent inrush current to turn off the power.
- In Stock 5+
- 1-3 days in EU, 2-5 days worldwide
€30.00 excl. VAT

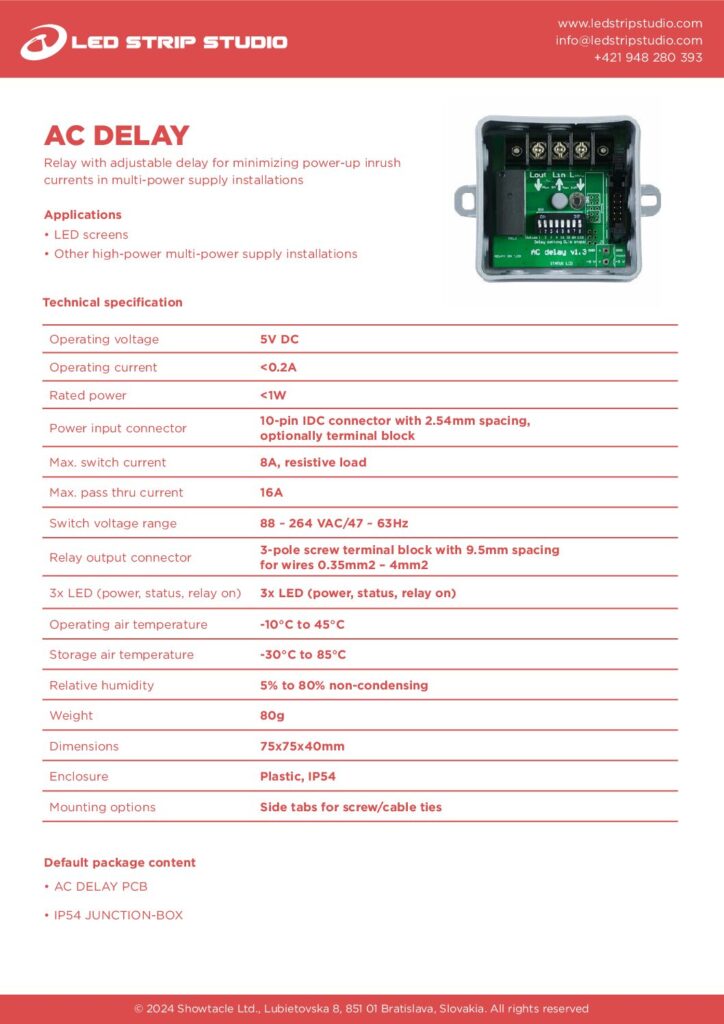

Additional information
| Weight | 35 g |
|---|---|
| Dimensions | 60 × 60 × 30 mm |
| Trigger Power connector A | 2 pole screw terminal block pitch 5mm for wires <1.5mm2 |
| Operating voltage | 5V DC |
| Self power consumption | typical 0.5W |
| Trigger Power connector B | IDC 10pin connector with secure latch pitch 2.54mm |
| Delay time selector | 8bit DIP switch |
| Indicators | 3x LED (power, status, relay on) |
| Max. switch voltage | 230V AC |
| Max. total pass thru curent | 16A |
| Max. switch current | 8A resistive load |
| AC switch connector | 3 pole screw terminal block pitch 9.5mm for wires from 0.35mm2 to 4mm2 |
| Switch type | Relay |

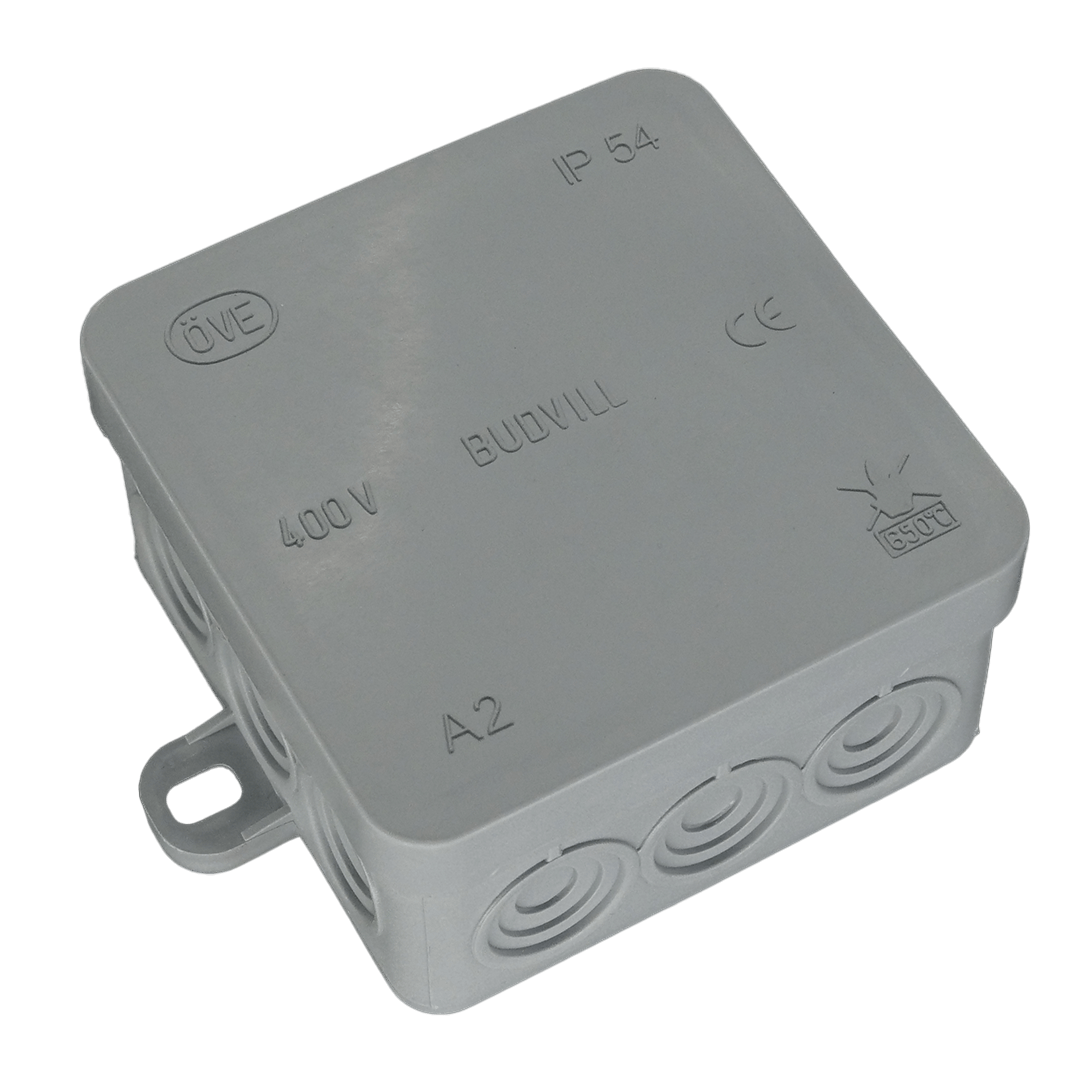

| Enclosure | plastic box |
