Lady Dimmer – 4CH DMX Dimmer

60.00 excl. VAT

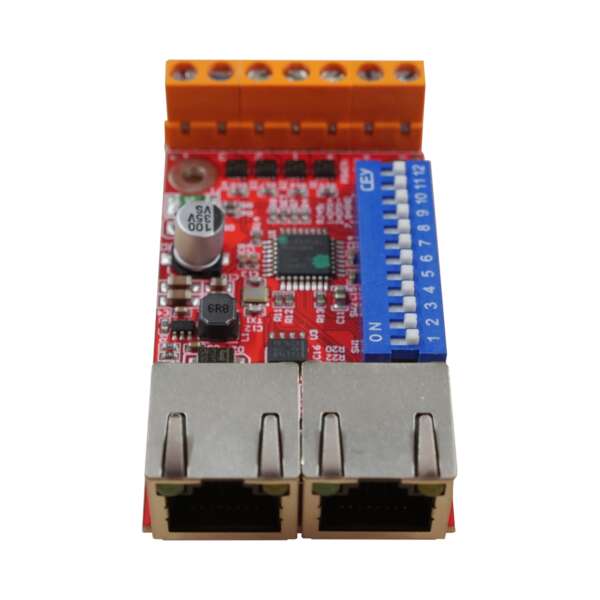

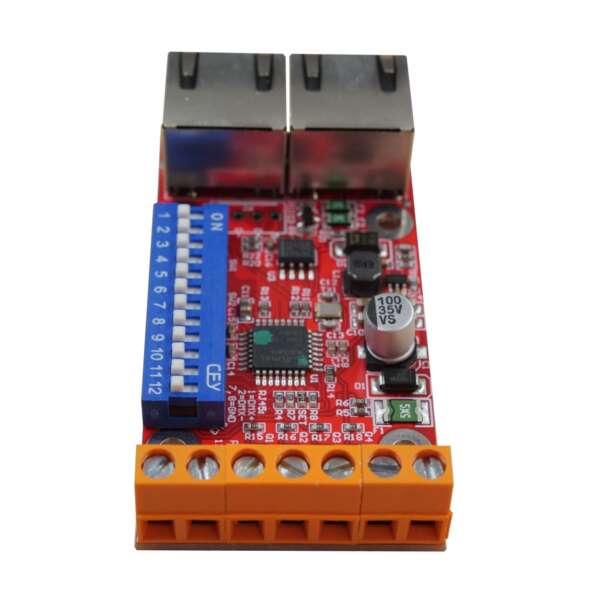

Lady Dimmer is 4 channel DMX dimmer for your Analog LED Strips. Setting up DMX address by DIP switch.

5V power output for wireless DMX module. Possible variant with rotary BCD encoders instead of DIP switch.

Description

Lady Dimmer is 4 channel DMX dimmer for your Analog LED Strips. Setting up DMX address by DIP switch.
Pass thru DMX allows to daisychain multiple dimmers together.
High frequency PWM dimming at 3900hZ with 8bit precision.

5V power output for wireless DMX module. Possible variant with rotary BCD encoders instead of DIP switch.

Additional information

Weight 25 g
Dimensions 68 × 36 × 18 mm
Data sheet

https://ledstripstudio.com/download/tech-specs/lady_dimmer_datasheet.pdf

Manual

https://www.ledstripstudio.com/download/user-manuals/lady_dimmer_manual.pdf

Operating voltage

12-24V DC

Self Power Consumption

1W

Power IN Connector

2 pole screw terminal block, pitch 5mm for wires <1.5mm2

MAX. Total Pass Thru Current

8A

DMX in Channels total

4

DMX in port connector type

RJ-45

DMX in port type

DMX512

DMX in port protection

Yes, ESD

DMX in isolated

No

DMX out port connector type

RJ-45

DMX out port type

DMX512 (pass thru)

Output Channels total

4

OUTPUT port connector type

5 pole screw terminal block pitch 5mm for wires <1.5mm2

OUTPUT port electrical type

Open Drain, Max 3A/Channel, Max 8A Total

OUTPUT port protection

No

Output connector pins

+,1,2,3,4

Address/parameter selector

12bit DIP switch

Status LED/RJ45 connectors

Green: Power, Yellow: DMX status

LED output dimming type

PWM

Grayscale

8bit (256 levels)

PWM Frequency

3900Hz or 490Hz

Works with controller

Any DMX512 controller

Operating air temperature

-10°C to 45°C

Storage air temperature

-30°C to 60°C

Relative humidity

5% to 80% non-condensing

Waterproof

No

Ingress Protection

IP00

Enclosure

no, PCB only

Mouting options

4x mounting hole diameter 3.2mm
