DMX/TRX – 8CH Switch

100.00 excl. VAT

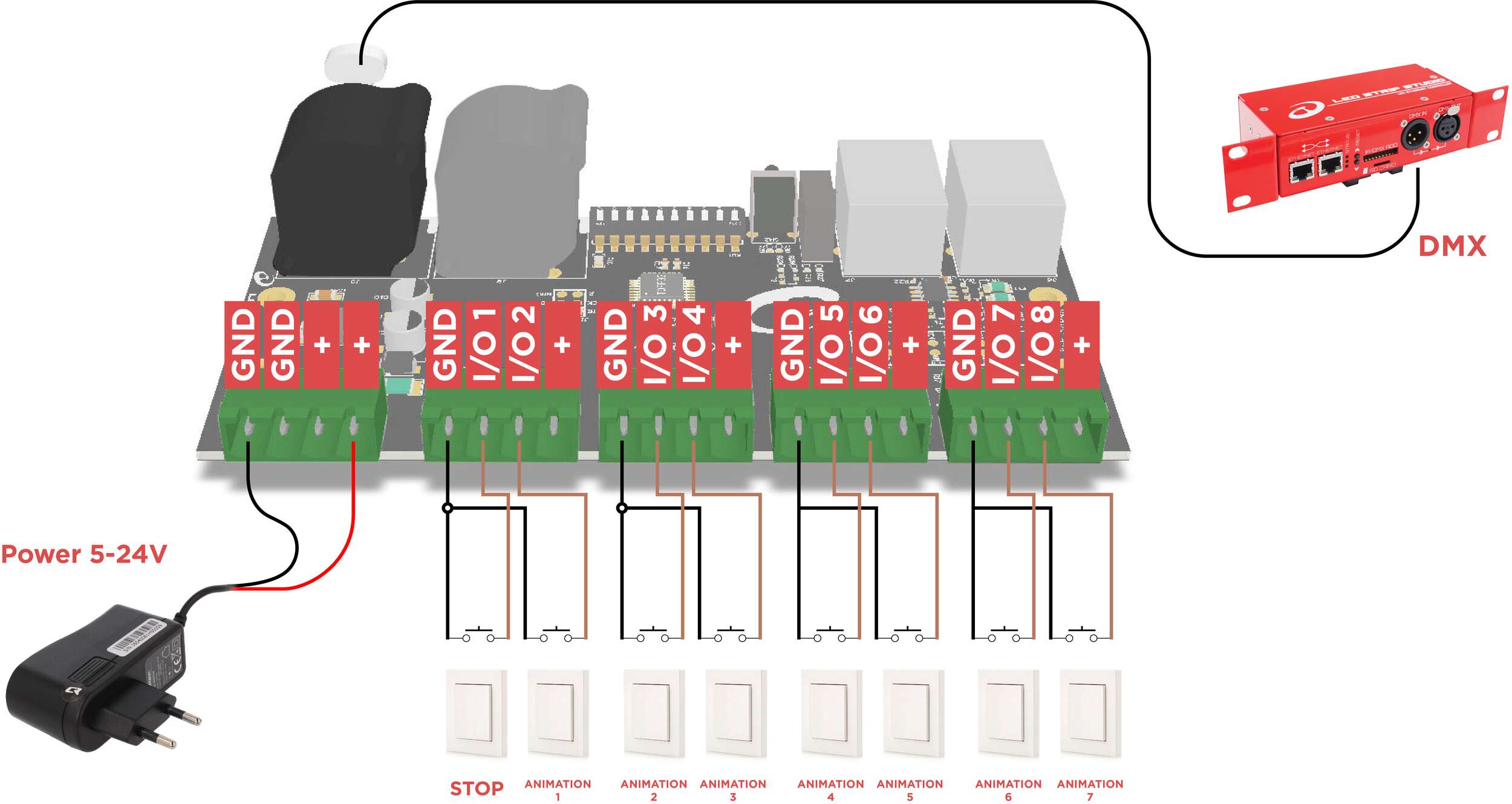

DMX TRX 2.0 board provides easy to use solution for buttons to switch between different LED pixel animations running on SPI controller device.

After the button is pressed DMX TRX 2.0 sends a DMX command to SPI controller device, which will trigger corresponding animation. DMX TRX supports up to 7 different animations and 1 stop (8 separate buttons).

Supported devices: LED Ethernet Controller 3, SPI Matrix, SPI LED

Description

DMX TRX 2.0 board provides easy to use solution for buttons to switch between different LED pixel animations running on SPI controller device.

After the button is pressed DMX TRX 2.0 sends a DMX command to SPI controller device, which will trigger corresponding animation. DMX TRX supports up to 7 different animations and 1 stop (8 separate buttons).

Supported devices: LED Ethernet Controller 3, SPI Matrix, SPI LED

Additional information

Weight 100 g
Dimensions 135 × 67.5 × 31 mm
Self Power Consumption

0.1A

Working voltage

5-24V

Number of outputs

8

Output connectors

16pin IDC MALE header connector with 2.54mm pin spacing.

Output type

5V TTL with internal pull-up. (Short to GND perform action)

DMX connector

XLR 3pin FEMALE – optional RJ45, 5PIN XLR

DMX address selector

optional – 10 pole DIP switch

Isolated DMX

No

Status LEDs

Green: Power, Yellow: DMX status, Red: I/O1 status

Housing

No, PCB Only

Mounting option

4x holes 3.2mm diameter

Documentation

https://ledstripstudio.com/download/dmx-trx_datasheet.pdf
